Description

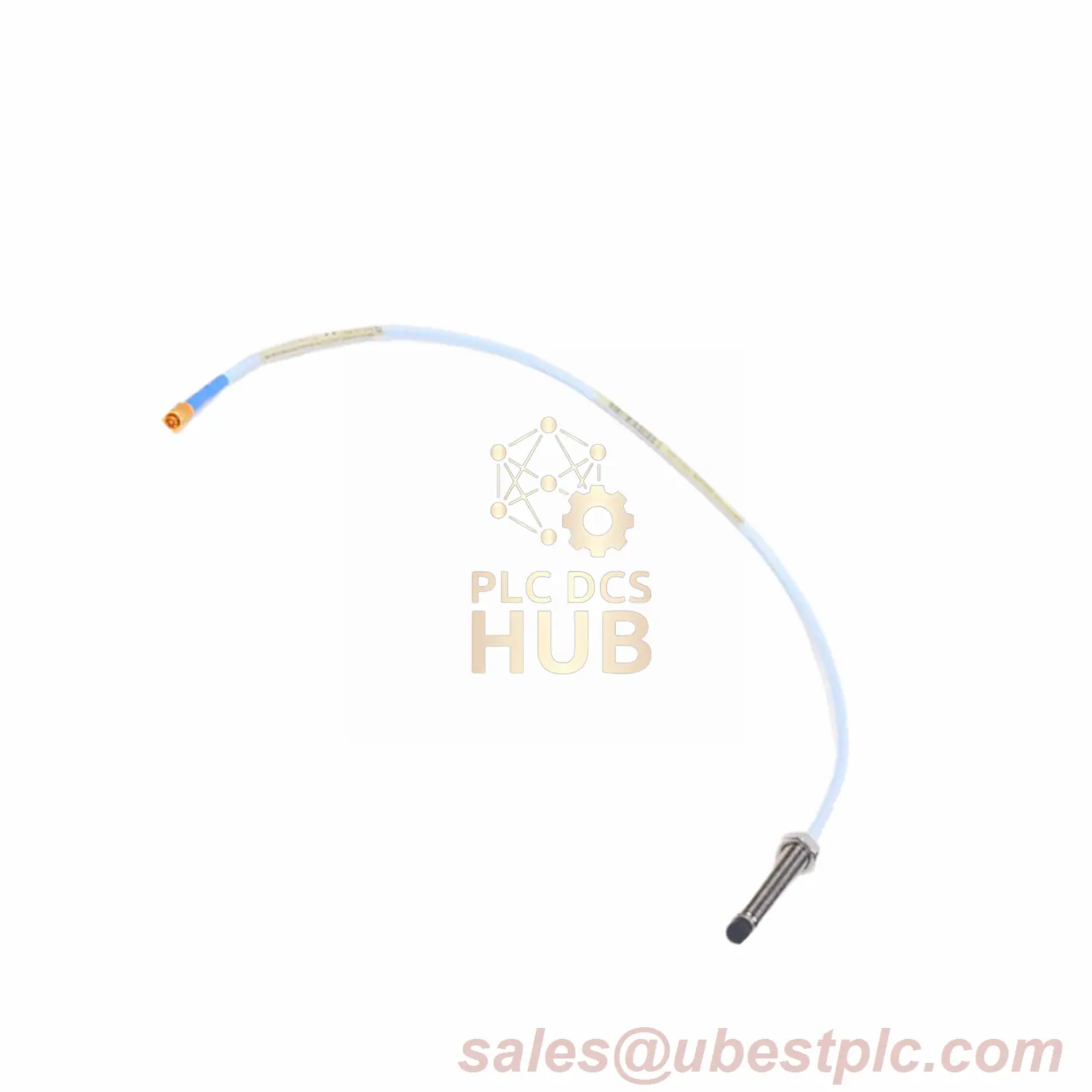

Bently Nevada 3300 XL 8 mm Proximity Probe
Key Features
Industrial-grade vibration measurement probe (Model: 330103-09-13-10-02-00) with M10x1 threading, designed for harsh environments. Features a PPS probe tip and Viton® O-ring seal for chemical resistance and durability.
Technical Specifications
- Brand: Bently Nevada
- Part Number: 330103-09-13-10-02-00
- Suffix Breakdown:
- Unthreaded Length: 09 (90 mm)
- Case Length: 13 (130 mm)
- Cable: 1.0 m (3.3 ft)
- Connector: ClickLoc Mini-Coaxial
- Agency Approval Not required
- Linear Range: 0.25–2.3 mm (10–90 mils) / Output: -1 to -17 Vdc
- Resistance: 7.59Ω ±0.50Ω at 1.0 m cable length
- Temperature Tolerance:
- Probe Tip: -52°C to +218°C
- Cable/Connector: -51°C to +260°C
- Weight: 323 g/m (11.4 oz/ft)
Installation & Performance
- Optimal Gap: 1.27 mm (50 mils) at -9 Vdc output
- Wiring: 3-conductor shielded triad cable (16–24 AWG), max 305 m (1,000 ft)
- Pressure Seal: Viton® O-ring (contact for custom pressure testing)
Certifications
- ATEX/IECEx:
- Zone 0: AEx/Ex ia IIC T1-T5
- Zone 2: AEx/Ex nA/ec IIC T1-T5
- Compliant with IEC 68-2-3 humidity standards
Applications
- Oil & Gas: Monitoring bearing health in high-speed pipeline compressors.
- Power Plants: Detecting shaft misalignment in steam turbines.
- Mining: Vibration analysis in heavy-duty crusher motors.
Contact: sales@ubestplc.com for custom configurations or bulk orders.
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
