Description

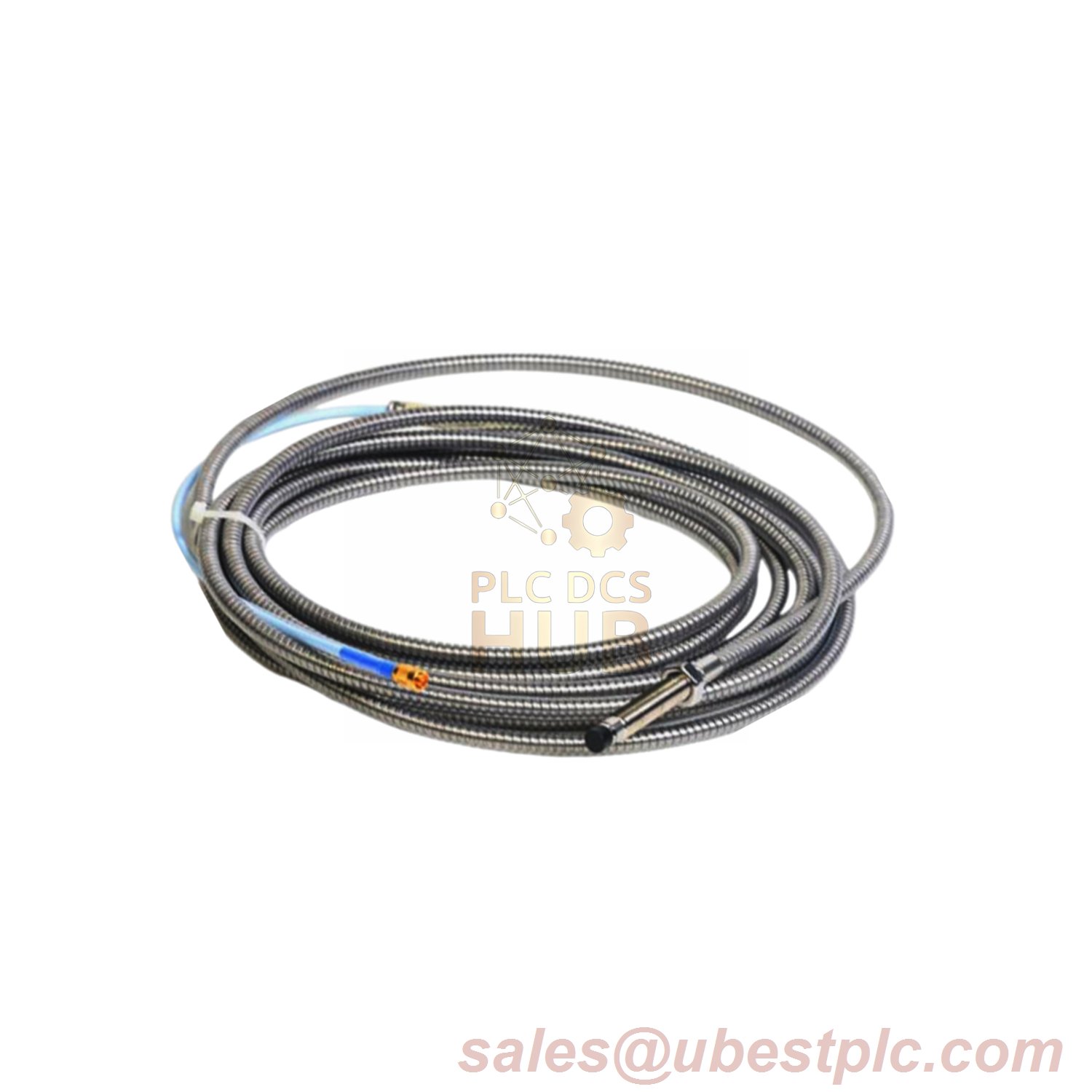

Bently Nevada Armored FluidLoc® Extension Cable
Ensure maximum durability and fluid resistance with the Bently Nevada 330130-035-11-00, combining armored construction and FluidLoc® technology. Designed for 3300-series 5 mm, 8 mm, and 3300 XL 8 mm probes, this cable features gold-plated ClickLoc® connectors and resists oil ingress in harsh environments. Includes silicone tape for temporary sealing and complies with IEC 68-2-3 humidity standards.
Technical Data
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 330130-035-11-00 (Suffix: 035=3.5m, 11=Armored FluidLoc®, 00=No Approvals) |
| Voltage Range | -17.5 Vdc to -26 Vdc (Barrier: -23 Vdc to -26 Vdc) |
| Current Draw | 12 mA max |
| Core Resistance (RCORE) | 0.77 Ω ± 0.12 |
| Shield Resistance (RJACKET) | 0.23 Ω ± 0.05 |
| Weight (Armored) | 0.36 kg (103 g/m) |
| Field Wiring Length | 305 meters max (1,000 feet) |
Key Features
- Armored FluidLoc® dual protection against physical damage and fluid ingress
- 330 N (75 lbf) pull strength via CableLoc® design
- Operational in 93% humidity (IEC 68-2-3 certified)
- Linear output range: 0.25–2.3 mm (10–90 mils)
Contact Information: For inquiries, email sales@ubestplc.com
