Description
Description

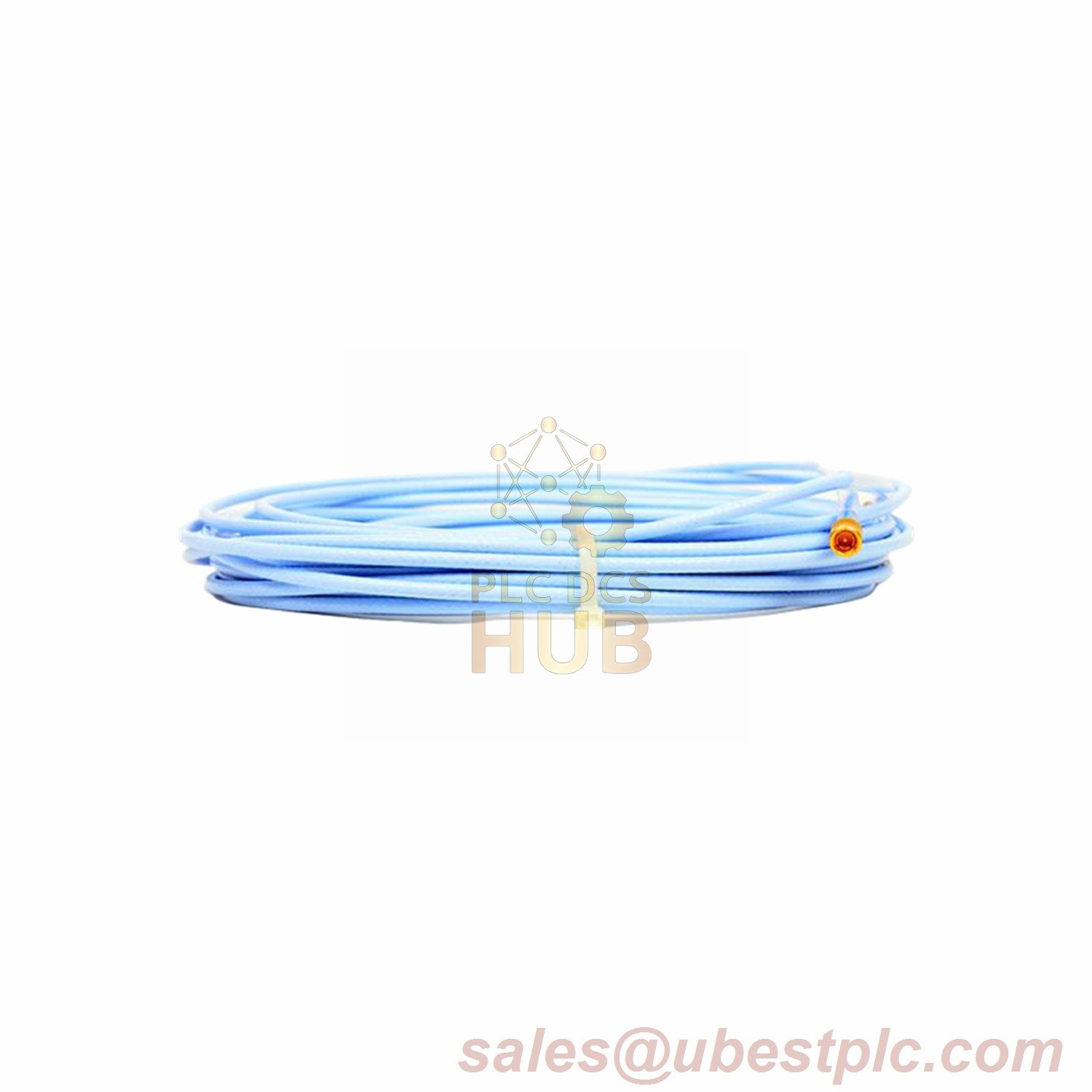

The Bently Nevada 330130-045-00-00 is a standard extension cable designed for reliable signal transmission in industrial vibration and position monitoring systems. Featuring 4.5 meters (14.8 feet) of unarmored cable and no agency certifications (suffix -00), this cable is ideal for non-hazardous environments requiring cost-effective, high-performance connectivity. Engineered with patented CableLoc technology, it ensures 330 N (75 lbf) pull strength and compatibility with 3300 XL probes and monitors.
Technical Data
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 330130-045-00-00 |
| Suffix Breakdown | -045 (4.5 m cable),
-00 (standard cable), -00 (no approvals) |
| Product Type | Standard Extension Cable |
| Cable Length | 4.5 meters (14.8 feet) |
| DC Resistance (RCORE) | 0.99 ± 0.15 Ω (center-to-center conductor) |
| DC Resistance (RJACKET) | 0.30 ± 0.06 Ω (outer-to-outer conductor) |
| Capacitance | 69.9 pF/m (21.3 pF/ft) |
| Bend Radius | 6x cable diameter (dynamic), 10x diameter (static) |
| Temperature Range | -40°C to +105°C (continuous operation) |
| Tensile Strength | 150 N (33.7 lbf) (static load) |
| Shielding Effectiveness | >85 dB (30 MHz–1 GHz) |
| EMC Compliance | EN 61326-1 (industrial EMI immunity) |
| Cable Jacket Material | PVC (resistant to abrasion and mild chemicals) |
| Weight | 34 g/m (0.4 oz/ft) |
| Humidity Resistance | 93% RH (56 days, per IEC 68-2-3) |
Contact Information
For pricing or customization, email sales@ubestplc.com
Check official datasheet for more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
