Description

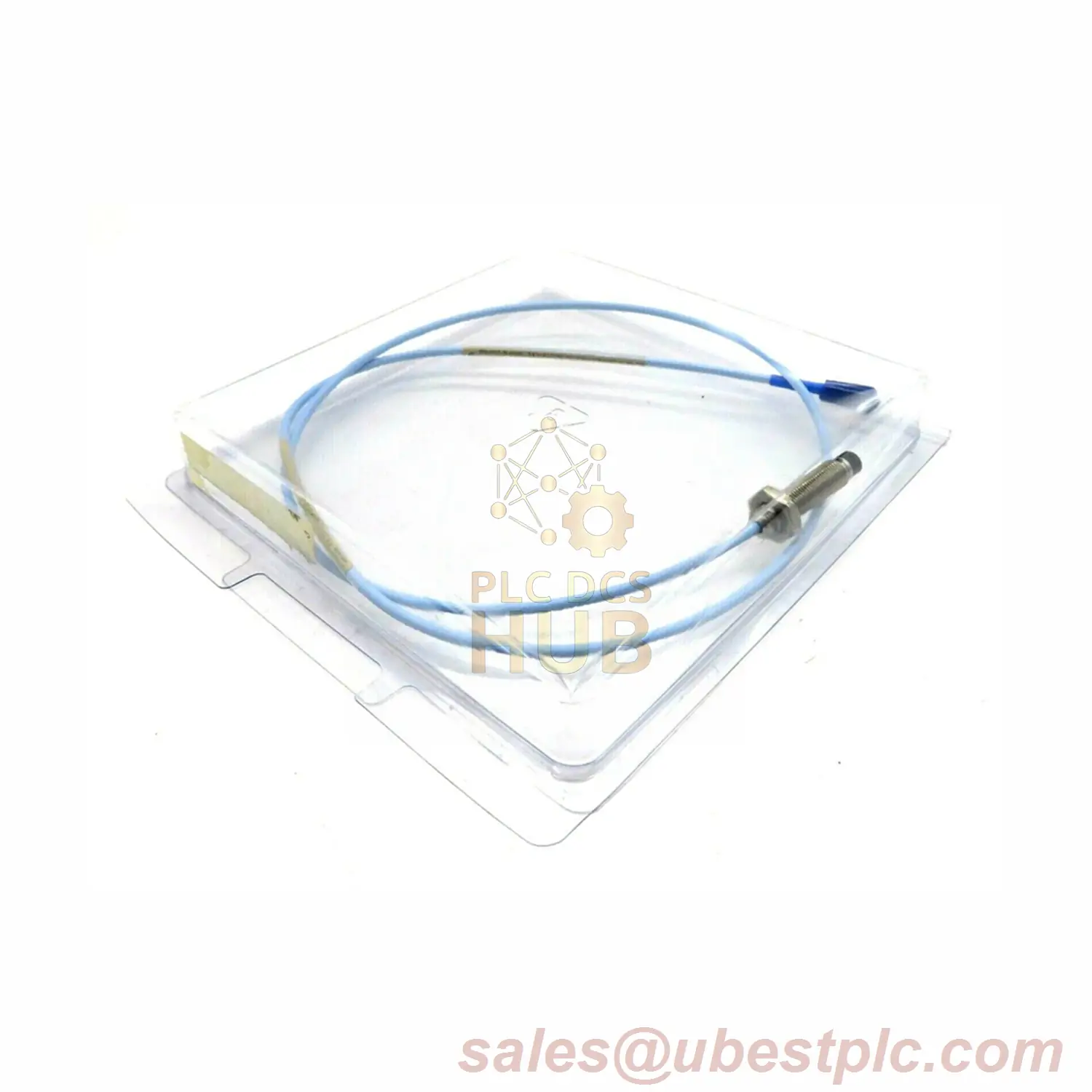

COMPLETE MODEL DECODER FOR 330191-00-33-90-00
| Suffix Code | Full Specification |
|---|---|
| 330191 | 3300 XL 8mm ETR Probe, 3/8-24 UNF thread, no armor |
| 00 | Unthreaded Length: 0.0 in |
| 33 | Case Length: 3.3 in (83.8mm) |
| 90 | Cable Length: 9.0m (29.5ft) |
| 00 | Approvals: None required |
CORE TECHNICAL DATA FOR 330191-00-33-90-00
- ⚡ Resistance: 9.87Ω ±0.90 @9m
- ????️ Temp Range: -55°C to +260°C
- ???? Capacitance: 69.9pF/m
- ⚖️ Weight: 323g/m (11.4oz/ft)
- ???? Thread: 3/8-24 UNF (0.563in)
- ???? Pull Strength: 330N (75lbs)
MINING CONVEYOR APPLICATION
Monitors underground coal conveyor belts in -20°C to +80°C environments. 3.3in case resists coal dust, 9m cable spans multiple conveyor sections. Withstands 95% humidity and mechanical vibration.
CERTIFICATION DETAILS
EPL Ga/Gc Temperature Classes: T1 (-55°C to +232°C) T2 (-55°C to +177°C) T3 (-55°C to +120°C) T4 (-55°C to +80°C) T5 (-55°C to +40°C) EPL Dc Temperature Classes: T280°C @ Ta -55°C to +232°C T225°C @ Ta -55°C to +177°C T170°C @ Ta -55°C to +120°C
FULL PRESSURE SPECS
- Seal Type: Viton® O-ring (not pressure tested)
- Max Differential Pressure: Consult factory
- Pressure Test Service: Available on request
COMPLETE PACKAGE
- 3.3in Coal-Dust Resistant Probe
- 9.0m FEP-Insulated Triaxial Cable
- Warranty: 12 Months
