Description
Product Overview

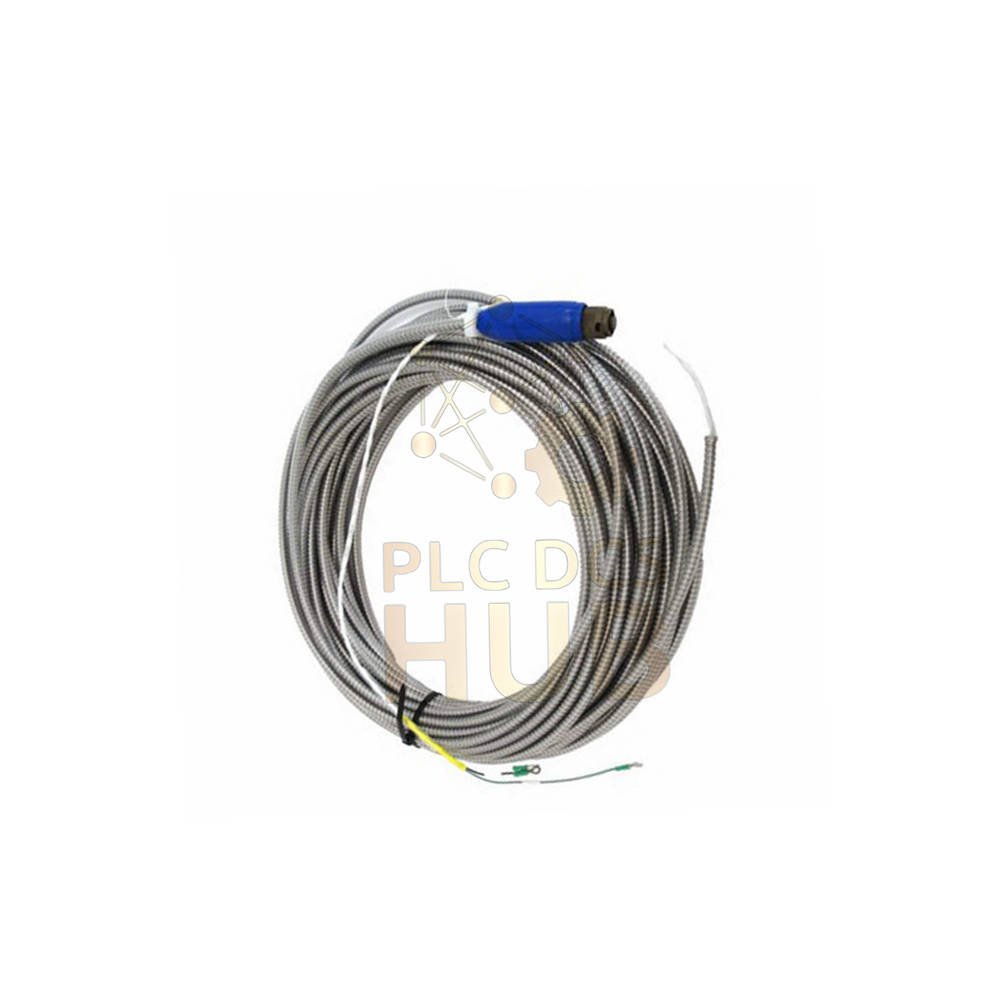

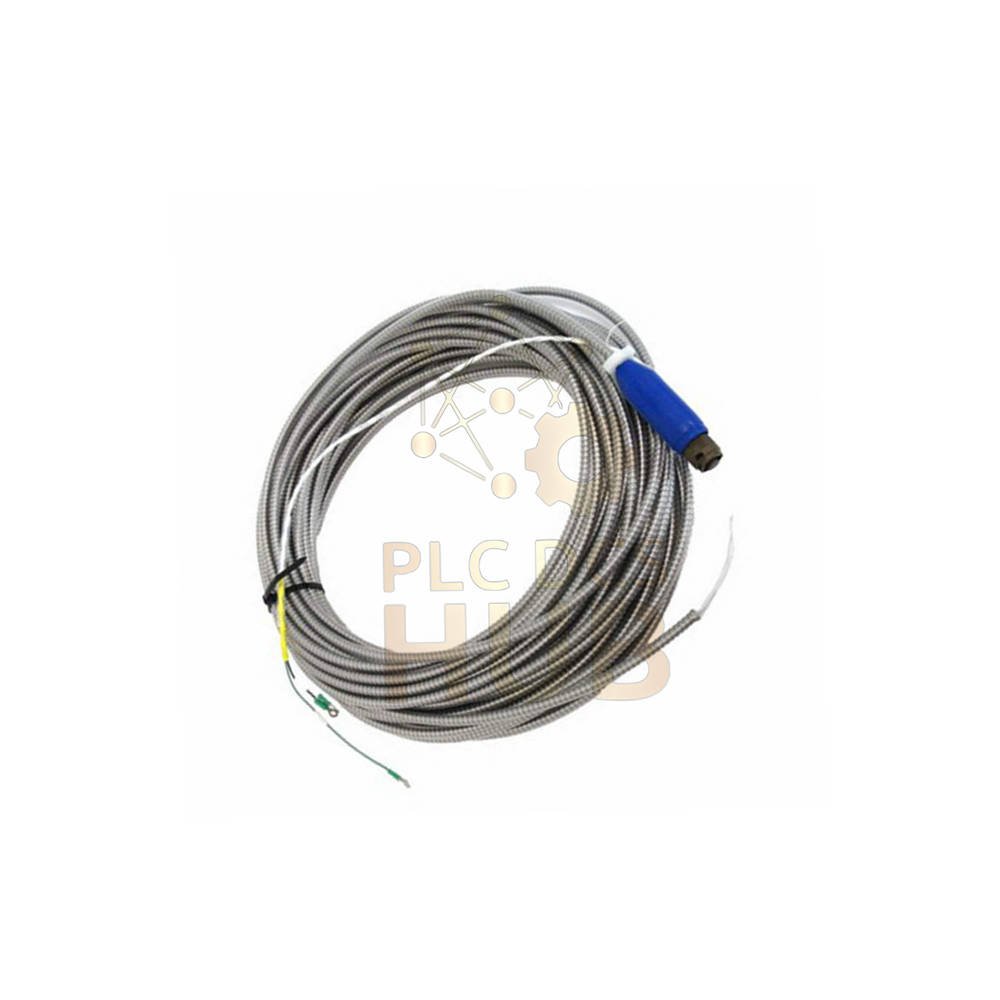

The Bently Nevada 330706-005-046-50-00-00 is a 3300 XL 11 mm Reverse Mount Probe. This probe uses M10 x 1 threads for metric mounting. Total system length is 5.0 meters (16.4 feet). Important note This five meter probe works only with the five meter Proximitor Sensor. The connector is a miniature ClickLoc coaxial type. Agency approval option 00 means no hazardous area certifications.
For inquiries, contact us at +86 158 8020 0923 (WhatsApp).
Part Number Breakdown (Tree Structure)
- 330706 → 3300 XL 11 mm Reverse Mount Probe, M10 x 1 thread
- 005 → Unthreaded Length Option
- 0 mm unthreaded length
- 046 → Overall Case Length Option
- 46 mm case length
- 50 → Total Length Option
- 5.0 meters (16.4 feet)
- For five meter Proximitor Sensor only
- 00 → Connector Option
- Miniature ClickLoc coaxial connector
- 00 → Agency Approval Option
- Not required
- No hazardous area certifications
- 005 → Unthreaded Length Option
Technical Specifications
- Brand: Bently Nevada
- Part Number: Bently Nevada 330706-005-046-50-00-00
- Product Type: 3300 XL 11 mm Reverse Mount Probe
- Made in: U.S.A.
- Thread Type: M10 x 1
- Unthreaded Length: 0 mm
- Overall Case Length: 46 mm
- Total System Length: 5.0 meters (16.4 feet)
- Weight: 0.07 kg
- Probe DC Resistance (5.0m): 7.2 ± 0.8 ohms
- Probe Tip Material: Polyphenylene sulfide (PPS)
- Probe Case Material: AISI 304 stainless steel (SST)
- Cable Specification: 75 Ω triaxial, FEP insulated
- Connector Type: Miniature ClickLoc coaxial
- Operating and Storage Temperature: -52°C to +177°C (-62°F to +351°F)
- Low Temperature Caution: Exposure below -34°C may damage the pressure seal
Torque Guidelines
- Probe Case Maximum Torque: 22.6 N•m (200 in•lb)
- Probe Case Recommended Torque: 7.5 N•m (66 in•lb)
- Connector Recommended Torque: Finger tight only
- Connector Maximum Torque: 0.565 N•m (5 in•lb)
- Minimum Cable Bend Radius: 25.4 mm (1.0 inch) with or without armor
Pressure Seal Information
- The probe seals differential pressure between tip and case.
- Sealing material is a Viton O-ring.
- Probes are not pressure tested before shipment.
- Contact our custom design department for pressure seal testing.
Installation Guide
- Turn off all power before you start.
- Clean the M10 x 1 mounting hole well.
- Apply anti-seize compound on the threads.
- Screw the probe in by hand first.
- Then tighten to 7.5 N•m (66 in•lb) recommended torque.
- Do not exceed 22.6 N•m (200 in•lb) maximum torque.
- Connect the ClickLoc connector until it clicks.
- Apply only finger tight torque to the connector.
- Set the probe gap to 1.0 mm (40 mils).
- Check that output voltage is between -1 and -13 Vdc.
Maintenance Tips
- Inspect the connector regularly for moisture.
- Keep the cable bend radius larger than 25.4 mm.
- Do not pull or strain the cable.
- Replace the probe if the cable gets damaged.
- Check the O-ring seal if you see oil leakage.
Compatibility Notes
- This 3300 XL 11 mm Reverse Mount Probe works only with the five meter Proximitor Sensor.
- Do not use it with an eight meter Proximitor Sensor.
- The probe works with 3300 XL series extension cables.
- Use only Bently Nevada approved cables for best results.
- Default calibration uses AISI 4140 steel targets.
Package Contents
- One Bently Nevada 330706-005-046-50-00-00 reverse mount probe
- One miniature ClickLoc coaxial connector (attached)
- One 5.0 meter cable (pre-attached)
- One installation instruction sheet
Warranty and Shipping
- 12 months factory warranty from shipment date.
- Warranty covers only manufacturing defects.
- Misuse or wrong installation voids the warranty.
- Shipping options: FedEx, UPS, DHL.
- A tracking number is sent after shipment.
Typical Applications
- Steam turbine shaft vibration monitoring
- Gas turbine axial position measurement
- Compressor casing expansion tracking
- Pump shaft runout detection
- Generator bearing vibration analysis
- Fan and blower imbalance checking
Frequently Asked Questions (FAQ)
Q1: What is the total length of this probe?
The Bently Nevada 330706-005-046-50-00-00 has 5.0 meters (16.4 feet) total length. However, this probe works only with the five meter Proximitor Sensor. Always match probe length to your Proximitor Sensor length.
Q2: What is the weight of this reverse mount probe?
This probe weighs only 0.07 kg. The light weight makes installation easy. Reverse mount design also saves space in tight areas.
Q3: Does this probe need pressure testing before use?
Probes are not pressure tested before shipment. The Viton O-ring provides the pressure seal. Contact our custom design department if you need a pressure seal test for your specific application.
Q4: What torque should I use for installation?
Recommended torque is 7.5 N•m (66 in•lb). Maximum torque is 22.6 N•m (200 in•lb). Use a torque wrench for accuracy. Over-tightening can damage the probe case or threads.
Q5: What is the temperature range for this probe?
Operating range is -52°C to +177°C (-62°F to +351°F). Do not expose the probe below -34°C for long periods. Low temperature exposure may cause the pressure seal to fail early.
Buying Guide
When you buy a 3300 XL 11 mm Reverse Mount Probe, follow these tips. First, check your Proximitor Sensor length. Five meter probes need five meter Proximitors. Second, confirm your mounting thread type. This model uses M10 x 1 threads. Third, pick the right unthreaded length for your mounting depth. Zero mm works for most standard holes. Fourth, decide if you need a longer cable. This 5.0 meter cable is for standard applications. Fifth, check your agency approval needs. Option 00 has no approvals. For hazardous areas, pick option 05 instead. Sixth, verify your target material. Standard calibration uses AISI 4140 steel. For other materials, request custom calibration. Finally, check the warranty terms. We offer 12 months coverage from shipment date.
