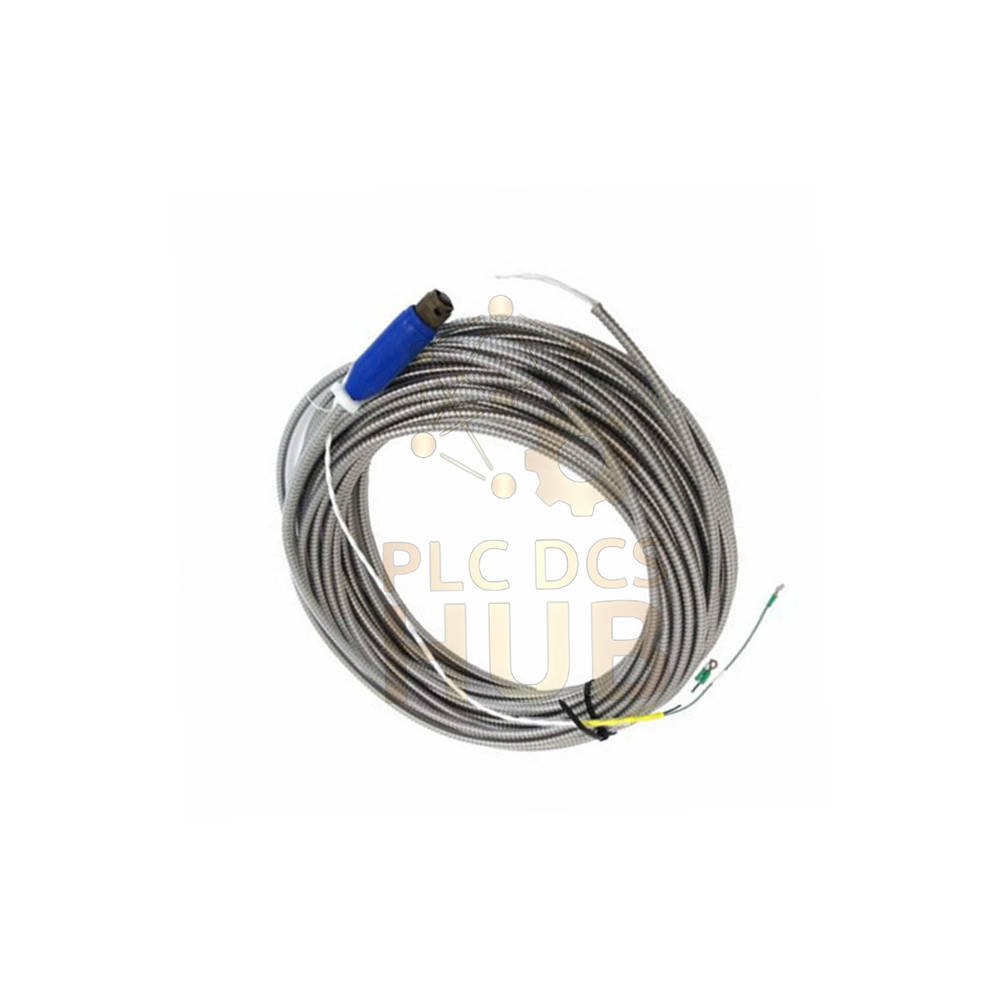

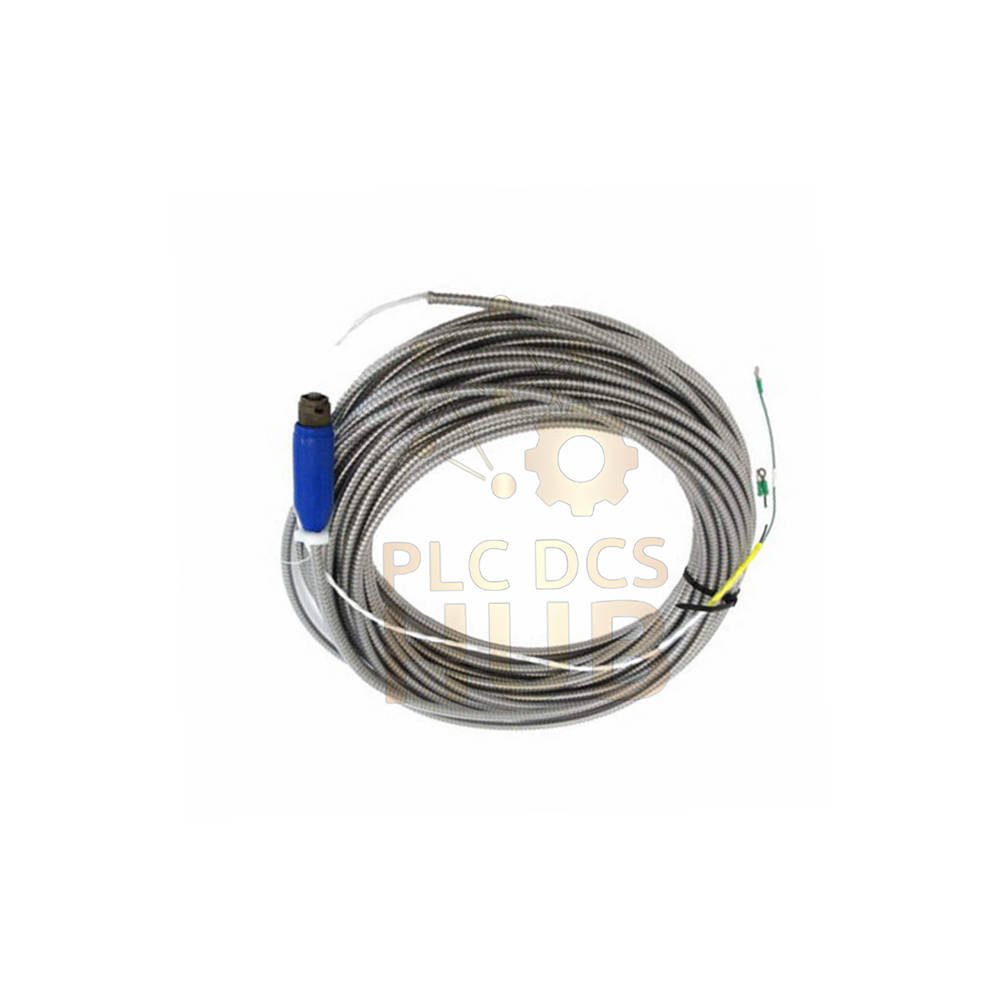

Bently Nevada 3300 XL Reverse Mount 330706-005-046-50-00-05

Description

Product Overview

The 3300 XL 11 mm Proximity Probes series includes this reverse mount model. It fits where standard probes cannot go. Use 330706-005-046-50-00-05 for vibration and position sensing. This probe works with a 5 meter Proximitor Sensor only. Made in U.S.A.

What Makes This Probe Special

• Reverse mount design saves installation space
• M10 x 1 thread for smaller mounting holes
• Multiple approvals (option 05) for safety
• Wide temperature range -52°C to +177°C
• Light weight only 0.07 kg

Model Number Decoder

• 330706-005-046-50-00-05
• 330706 = 3300 XL 11 mm reverse mount probe, M10 x 1 thread
• 005 = Unthreaded length option
• 046 = Overall case length option
• 50 = Total length 5.0 meters (16.4 feet)
• 00 = Miniature ClickLoc coaxial connector
• 05 = Multiple agency approvals

Technical Data

• Brand: Bently Nevada
• Model: 330706-005-046-50-00-05
• Type: 3300 XL 11 mm reverse mount probe
• Thread size: M10 x 1
• Total probe length: 5.0 meters
• Connector type: Miniature ClickLoc coaxial
• Agency approval: Multiple (option 05)
• Probe tip material: Polyphenylene sulfide (PPS)
• Probe case material: AISI 304 stainless steel (SST)
• Cable type: 75 Ω triaxial, FEP insulated
• Cable lengths available: 1, 5, or 9 meters
• DC resistance (5m): 7.2 ± 0.8 ohms
• Max connector torque: 0.565 N•m (5 in•lb) – finger tight only
• Minimum bend radius: 25.4 mm (1.0 in)
• Operating & storage temp: -52°C to +177°C
• Pressure seal limit: Avoid temps below -34°C to protect seal
• Max case torque: 22.6 N•m (200 in•lb)
• Recommended case torque: 7.5 N•m (66 in•lb)
• Weight: 0.07 kg

Installation Steps

• Use recommended torque 7.5 N•m for the probe case.
• Never exceed 22.6 N•m maximum torque.
• Tighten connector finger tight only.
• Keep cable bend radius at least 25.4 mm.
• Match this probe with a 5 meter Proximitor Sensor.
• Do not use below -34°C to keep pressure seal working.

Maintenance Tips

• Check DC resistance from center to outer conductor.
• Normal reading for 5m probe is 7.2 ± 0.8 ohms.
• Use Bently Nevada Proximitor for quick setup.
• Clean the probe tip with a soft cloth only.
• Look for cuts or sharp bends in the cable.

What Works With This Probe

• Use only with 5 meter Proximitor Sensor.
• Fits Bently Nevada monitoring systems.
• Use 3300 XL extension cables of same length.
• Connector type is Miniature ClickLoc coaxial.

Certifications

• Multiple Approvals (option 05)
• Safe for many industrial sites
• Check local rules before installation

In The Box

• 1 x 3300 XL 11 mm reverse mount probe (5m length)
• 1 x Miniature ClickLoc coaxial connector
• Installation guide (request if needed)

Warranty & Shipping

• 12 months warranty from delivery date.
• Covers factory defects only.
• Does not cover misuse or wrong installation.
• We ship by FedEx, UPS, or DHL.
• Tracking number sent after shipping.

Where To Use This Probe

• Steam and gas turbines
• Compressors
• Pumps
• Fans and blowers
• Tight spaces where standard probes do not fit

What It Can Detect

• Shaft vibration amplitude
• Static shaft position (gap voltage)
• Unbalance, misalignment, and rubs
• Works with Bently Nevada diagnostic tools

Professional FAQ

• What is a reverse mount probe?
• It mounts from the opposite side. This saves space in tight machinery.
• Why is the torque lower than standard probes?
• Reverse mount design uses smaller M10 threads. Lower torque prevents damage.
• Experience: We saw unstable readings after installation.
• Check the cable bend radius. Keep it above 25.4 mm. Tight bends cause signal noise.
• Experience: The O-ring seal failed in cold weather.
• Do not use below -34°C. The Viton O-ring may crack. Warm the area first.
• Buying guide: Reverse mount or standard probe?
• Pick reverse mount (330706) for tight spaces with M10 holes. Pick standard for larger M14 or M16 holes.
• Buying guide: Do I need multiple approvals (option 05)?
• Yes for hazardous areas. No for general factories. Check your local safety rules.
• Buying guide: What cable length is best?
• 5 meters matches the 5m Proximitor. Do not mix lengths. Use 1m or 9m only if your Proximitor matches.
• Does the probe come pressure tested?
• No. Contact Bently Nevada custom design if you need a pressure seal test.
