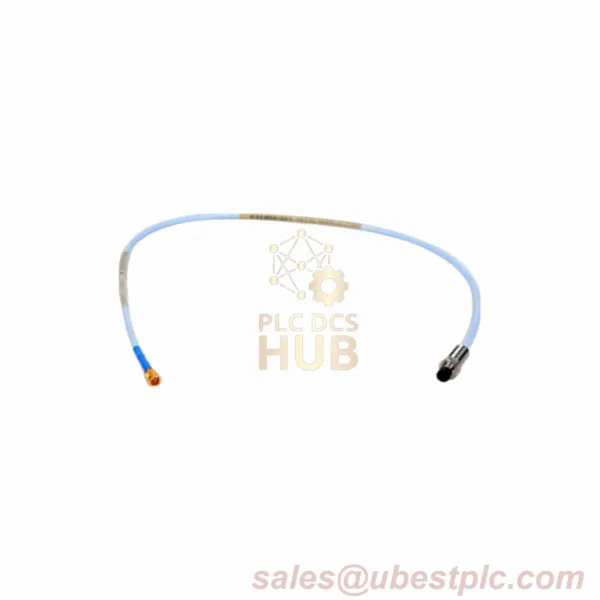

Bently Nevada 330901-00-12-05-11-00 3300 NSv Probe

Description

330901-00-12-05-11-00 | 3300 NSv Short-Cable Proximity Probe

Space-optimized 0.5M solution with 30.48mm case length for tight installations. Features 20-inch FluidLoc® cable and 4.0Ω ±0.5Ω low-resistance performance.

Configuration Highlights

• Cable Length: 0.5M (508mm ±10mm)
• Bend Radius: 25mm minimum (1000+ cycles)
• Thread Spec: 1/4-28 UNF (9.5mm max depth)
• Seal Type: Dual Viton® O-rings (0.5Pa leak rate)

Electrical Profile

• Impedance: 75Ω ±1Ω @ 1MHz
• Shield Efficiency: >90dB @ 100MHz
• Velocity Limit: 20m/s peak

Suffix Breakdown for 330901-00-12-05-11-00

• -00: Standard industrial calibration
• -12: 1.2″ (30.48mm) compact housing
• -05: 0.5M high-flex cable assembly
• -11: Gold-plated ClickLoc™ connector

Mounting Alert: Requires 2.5mm gap around probe tip for thermal expansion at +177°C.

Technical Consultation:
???? sales@ubestplc.com

⚠ Pro Tip: For 0.5M cables, maintain >150mm service loop to prevent connector strain. Torque specification 5.1N·m ±10% ensures RF shielding integrity.
