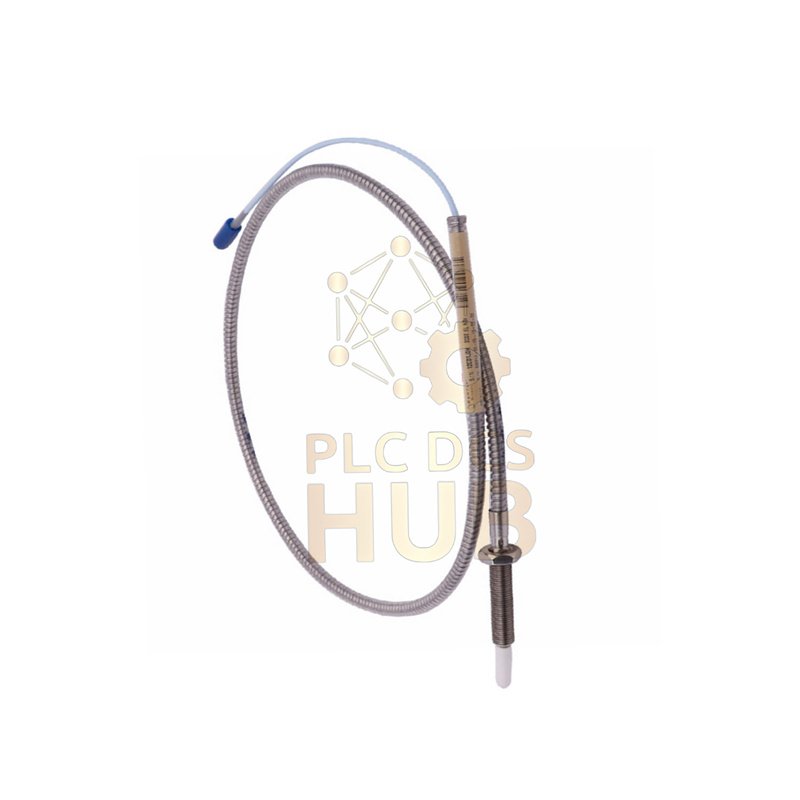

This is the Bently Nevada 330904-00-03-70-01-CN. A compact 3300 NSv Proximity Probe with a long 7-meter cable. It features M8x1 threading and stainless steel armor. Perfect for process compressor applications.
Your Model Decoded
- Root Code: 330904
- This means: 3300 NSv Probe, M8x1 thread, with armor.
- First Option: -00
- This means: 0 mm unthreaded length.
- The case is fully threaded from tip to cable.
- Second Option: -03
- This means: 30 mm overall case length.
- A very short probe body for tight spaces.
- Third Option: -70
- This means: 7.0 meters (23 feet) of integrated cable.
- Eliminates the need for a separate extension cable.
- Fourth Option: -01
- This means: ClickLoc connector with a protective cap.
- Protects connector pins during shipping and handling.
- Fifth Option: -CN
- This means: Country-specific approvals.
- Compliance tailored to specific market requirements.
Why Choose This Probe?
- Long Integrated Cable: 7 meters built-in reduces connection points.
- Compact Design: Only 30mm long for restricted mounting areas.
- Armored Protection: Stainless steel armor protects against damage.
- Chemical Resistant: Improved over older RAM probes for harsh processes.
- Backward Compatible: Direct replacement for 3300 RAM probes.
- Explore our full range of 3300 NSv Proximity Probes.
Technical Specifications
- Brand & Model: Bently Nevada 330904-00-03-70-01-CN
- Measurement Performance
- Linear Range: 1.5 mm (60 mils)
- Recommended Gap: 1.0 mm (40 mils)
- Sensitivity: 7.87 V/mm (200 mV/mil) ± tolerance
- Linearity: Better than ±0.06 mm (±2.3 mils)
- Electrical Data
- Probe Resistance (7.0m): 5.9 Ω ± 0.9 Ω
- Frequency Response: 0 to 10 kHz
- Target Size: Minimum 8.9 mm diameter
- Physical Build
- Thread: M8 x 1 metric
- Case: 30mm total, fully threaded, with armor
- Materials: AISI 304 Stainless Steel, PPS Tip
- Cable: 7.0m integrated, FEP insulated, 75 Ω coaxial
- Installation Specs
- Recommended Torque: Finger tight plus 1/4 turn
- Maximum Torque: 0.56 N•m (5 in•lb)
- Max Thread Engagement: 15 mm
- Minimum Bend Radius: 25.4 mm (1.0 in)
- Environmental Limits
- Temperature: -52°C to +177°C
- Pressure Seal: Viton® O-ring
What’s In The Box & Support
- Package Contents:
- One Bently Nevada 3300 NSv Probe
- With attached connector protector
- Factory Warranty: Full 12-month coverage.
- Global Shipping: Available via FedEx, UPS, DHL.
- Expert Help: Click for WhatsApp support: +86 158 8020 0923.
Expert FAQ
What does “with armor” mean for this probe?
It has a stainless steel braid over the cable. This armor provides extra protection against cuts, abrasion, and crushing in tough plant environments.
Why is the probe resistance lower (5.9Ω) than other models?
The resistance is lower because the cable is much longer (7 meters). The longer internal cable adds less resistance per meter compared to the probe coil itself.
What is the main advantage of the 30mm case length?
Extremely short length. It allows installation in places where there is almost no space behind the mounting surface. Common in compact machinery.
How do I handle the 7-meter cable during installation?
Carefully coil the excess cable. Use gentle loops with a radius greater than 1 inch (25.4mm). Secure it with cable ties away from heat and moving parts.
From experience, what is the #1 mistake with armored probes?
Overtightening. Because the probe is short and armored, people use tools. Remember: maximum torque is only 5 in•lb. Use a small torque wrench or just hand-tighten. Overtightening cracks the PPS tip.
Smart Buying Guide
- Choose this for M8x1 threaded holes.
- Ideal when you need a very short probe body (30mm).
- Select for long cable runs without adding extension cables.
- The -CN suffix means check local compliance requirements.
- All orders include 12-month warranty and express courier options.
