Bently Nevada 330904-00-05-70-01-05 | 7m NSv Armored Vibration Probe

Description

Long-Reach NSv Process Probe

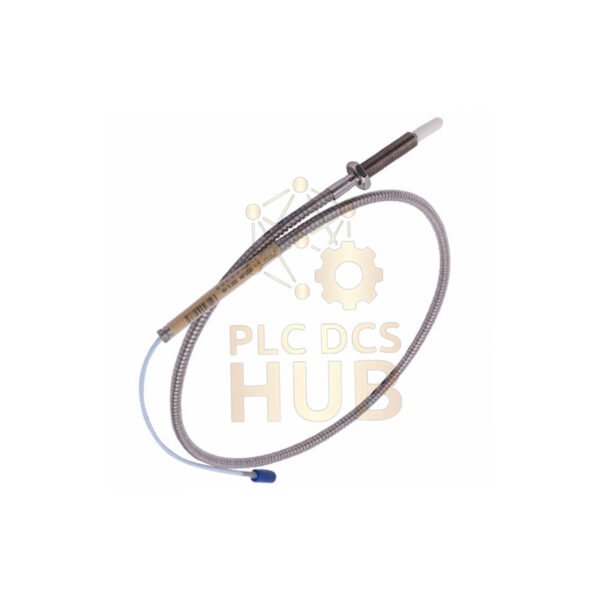

This 3300 NSv Proximity Probe features a 7-meter integrated cable. Model 330904-00-05-70-01-05 is armored and certified. It is designed for remote sensor placement in chemical environments. The probe is new and original with full factory packing.

Specification Breakdown

Detailed configuration for part 330904-00-05-70-01-05:

• Series: 330904 (NSv, M8x1, Armored)
• -00 | Unthreaded Portion: 0 mm
• -05 | Case Size: 50 mm Length
• -70 | Cable: 7.0 Meters Long
• -01 | Connection: ClickLoc with Protector
• -05 | Safety: Multiple Agency Approvals

Core Performance Data

• Interchangeability: Direct replacement for 3300 RAM probes.
• Range: 1.5 mm linear measurement range.
• Initial Gap: Set to 1.0 mm (40 mils) from target.
• Output: 7.87 V/mm sensitivity.
• Linearity: Within ±0.06 mm.
• Bandwidth: 0 to 10 kHz frequency response.
• Electrical: Probe resistance is 5.9 Ω (±0.9) for 7.0m length.
• Mechanical: M8x1 thread. Finger-tight plus light torque (0.56 N•m max).
• Robustness: PPS tip, 304 SST armor, Viton® seal.
• Environment: -52°C to +177°C operating temperature.

Quick Installation Guide

1. Install the short 50mm probe body into the M8x1 hole.
2. Route the 7-meter cable carefully to the monitoring cabinet.
3. Attach the protected ClickLoc connector to the proximitor.
4. Adjust the probe position to achieve a 1.0 mm air gap.

Complete Package Details

• One (1) Bently Nevada 3300 NSv Probe.
• Full Part Number: 330904-00-05-70-01-05.
• Factory Warranty: 12 months of comprehensive coverage.
• Logistics: Shipped promptly via FedEx, UPS, or DHL.

Target Applications

Ideal for process compressors, pumps, and turbines where the monitoring system is located far from the measurement point. Its chemical resistance is key for harsh environments. Discover more 3300 XL NSv Proximity Probes in our store.

Customer Support & FAQs

Technical Clarifications

• What are the “Multiple Approvals” for Option -05?
• This typically includes major global certifications like CSA, ATEX, and IECEx, making the probe suitable for use in various regulated hazardous areas worldwide.
• Why is the resistance tolerance wider (±0.9Ω) for this model?
• The longer 7-meter cable introduces more variation. This wider tolerance is normal and accounted for in the system calibration.

Practical Usage Advice

• How should I store and handle the long 7-meter cable?
• Keep it coiled loosely (min 25.4mm bend radius) before installation. Avoid kinks. Protect it from crushing during transport and installation.
• Is this probe suitable for axial position measurement?
• Yes, but ensure the shaft diameter is at least 13mm for accurate results. On smaller shafts, the output scale factor may vary.

Purchasing Information

• What assurance do I get with my order?
• You receive a genuine, new Bently Nevada probe with a 12-month warranty. We ship via reliable carriers (FedEx/UPS/DHL). For application support, reach our team on WhatsApp at +86 158 8020 0923.
