Description

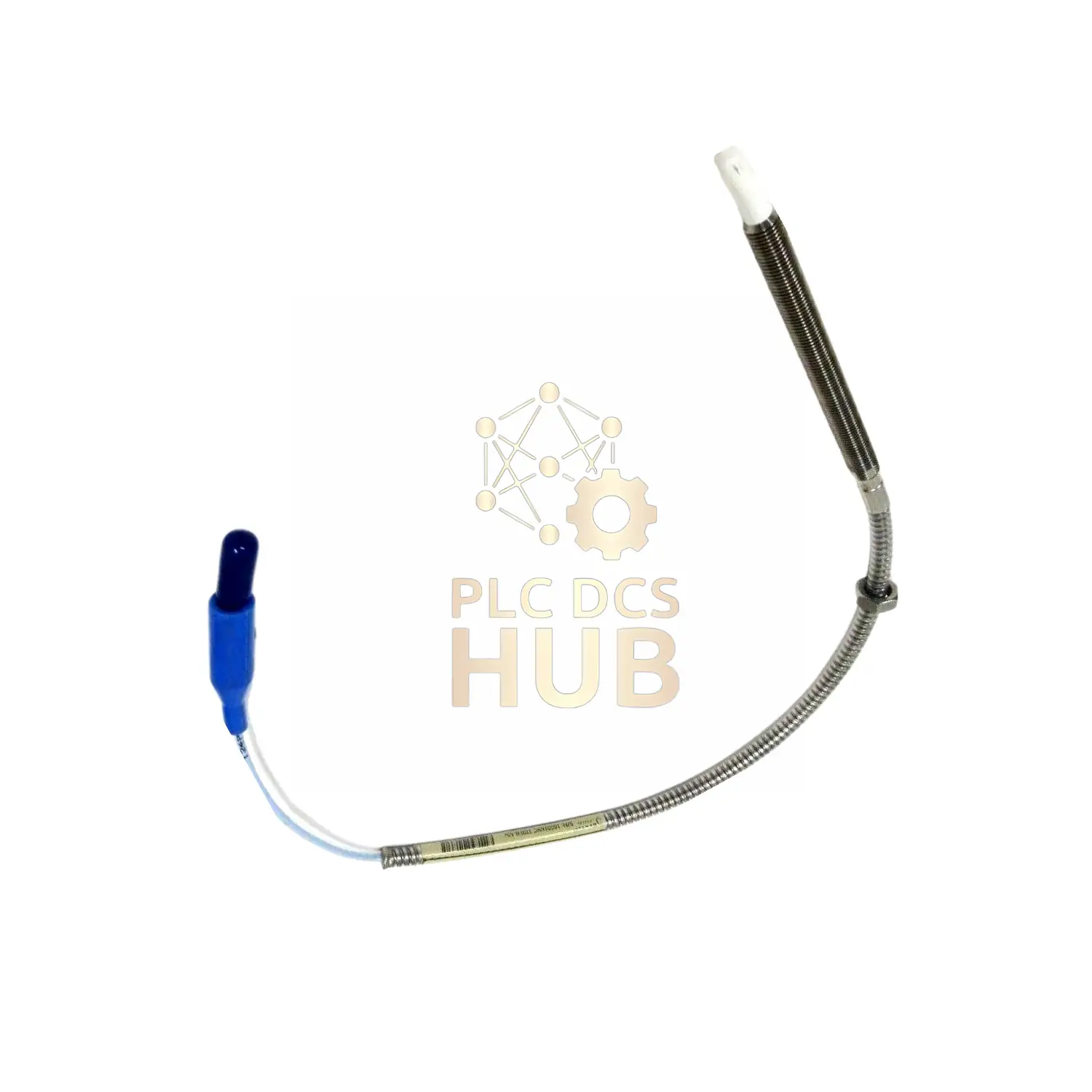

Bently Nevada 3300 NSv Proximity Probe with FluidLoc Technology
Product Overview
New 330904-00-15-50-11-05 proximity probe by Bently Nevada. Features M8X1 threading, 5-meter FluidLoc cable, and multiple agency approvals. Perfect for harsh industrial environments where chemical resistance matters.
Key Specifications
- Brand: Bently Nevada
- Full Model Code: 330904-00-15-50-11-05
- Thread Type: M8X1 with stainless steel armor
- Cable Type: FluidLoc chemical-resistant
- Cable Length: 5.0 meters (16.4 ft)
- Resistance: 5.3 Ω ±0.7 Ω
Suffix Breakdown
- 330904 – Base probe model
- 00 – 00 mm unthreaded length
- 15 – 150 mm case length
- 50 – 5.0 meter cable
- 11 – ClickLoc connector with FluidLoc
- 05 – Multiple agency approvals
Critical Performance Data
- Measuring Range: 1.5 mm (60 mils)
- Accuracy: Better than ±0.06 mm (±2.3 mils)
- Temp Range: -52°C to +177°C
- Response: 0-10 kHz (±3dB)
- Pressure Seal: Viton O-ring design
Installation Notes
- Set gap at 1.0 mm (40 mils)
- Max torque: 5.1 N•m (45 in•lb)
- Min bend radius: 25.4 mm (1.0 in)
- Min target size: 13 mm (0.5 in)
Compatibility & Approvals
Works with all 3300 XL NSv systems. Backward compatible with 3300 RAM probes. Includes multiple agency approvals (Option 05).
Package Includes
- Factory-sealed probe
- Connector protector
- 12-month warranty
Global Shipping
Fast delivery via FedEx/UPS/DHL. Worldwide tracking.
Application Example
Chemical Plant Pumps: Monitors shaft vibration on acid transfer pumps. FluidLoc cable resists corrosive splashes at 90°C.
Expert FAQs
Q: What makes FluidLoc cable special?
A: Resists chemicals and fluids better than standard cables.
Q: Can I use this in explosive areas?
A: Yes – multiple approvals cover hazardous locations.
Q: How does cable length affect performance?
A: Longer cables work with up to 305m field wiring with proper shielding.
Q: Is calibration needed after installation?
A: No – factory-calibrated for plug-and-play use.
Q: Can it monitor small shafts?
A: Minimum 8.9mm diameter – reduce gap for better accuracy.
