Description

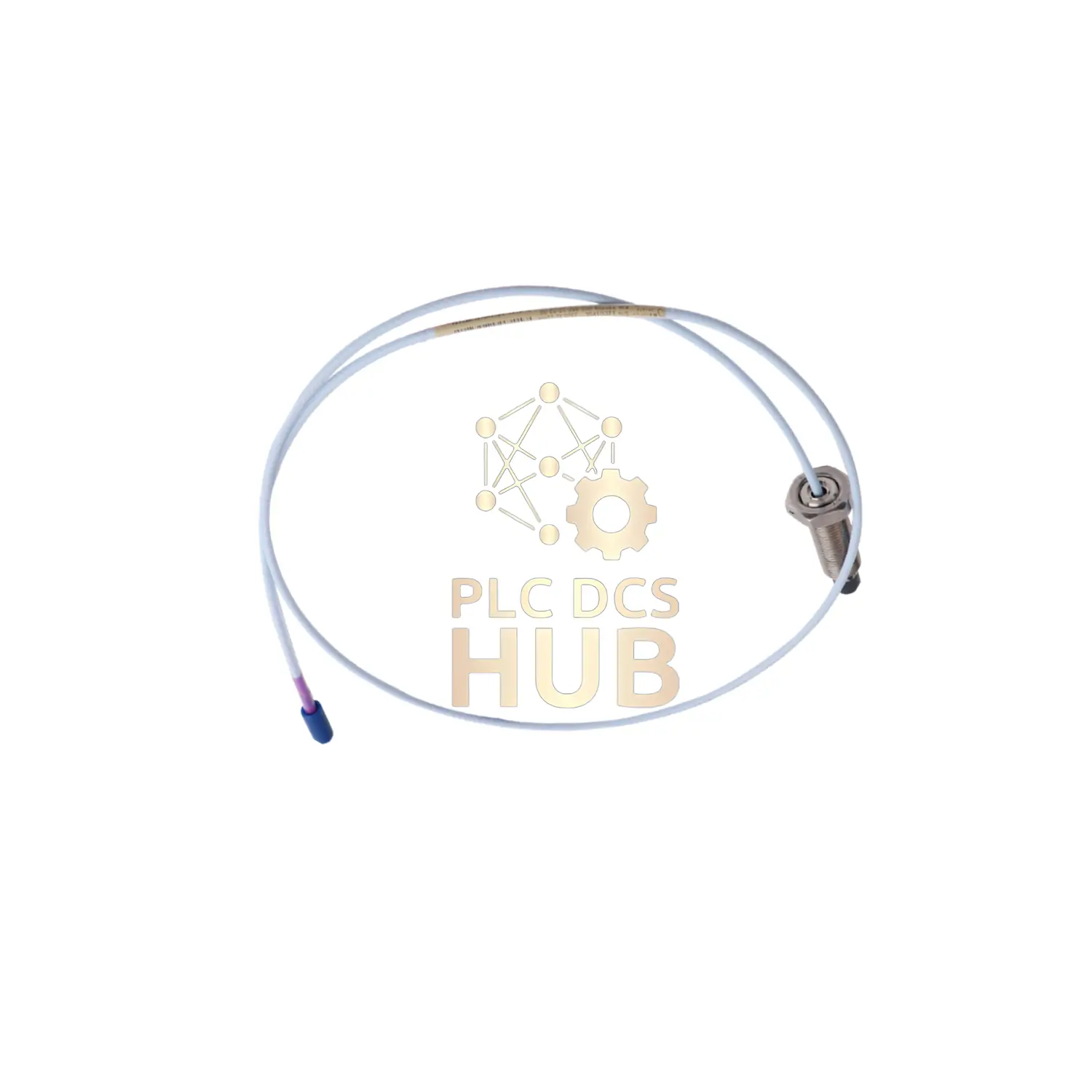

Bently Nevada 330707-00-25-10-02-00 Vibration Probe
Long-case 11mm sensor for industrial machinery monitoring. 2.5-inch stainless steel body with PPS tip. Works in extreme heat and cold. Made in USA.
Model Breakdown
- Probe Type: 330707 (11mm, 5/8-18 UNF)
- Unthreaded: 00 (0 inches)
- Case Length: 25 (2.5 inches)
- Cable: 10 (1.0 meter)
- Connector: 02 (ClickLoc + standard cable)
- Approvals: 00 (Not required)
Core Specifications
- Electrical: 5.9Ω resistance ±0.5
- Thread: 5/8-18 UNF (0.938″ max engagement)
- Bend Radius: Min 25.4mm (1.0 inch)
- Cable Type: 75 Ω triaxial FEP
Material Details
- Tip: PPS plastic
- Body: 304 stainless steel
- Seal: Viton O-ring
- Weight: 0.17 kg
Temperature Performance
- Operating Range: -51°C to +177°C
- Warning: Avoid below -34°C for seal safety
Mounting Guide
- Optimal Torque: 15.2 N•m (133 in•lb)
- Max Torque: 45.2 N•m (400 in•lb)
- Connector: Hand-tighten only
Compatibility
Works with Bently Nevada 3300 systems. Fits GE and AB monitoring equipment.
Package Contents
- 1 vibration probe
- 12-month defect warranty
Shipping Info
Global delivery via FedEx/UPS/DHL. Ships same day.
Industry Uses
- Steel mill rollers
- Paper plant drives
- Mining conveyor systems
- Marine engine monitoring
Common Questions
Q: How long is the probe body?
A: 2.5 inches – longer than standard
Q: Cable length options?
A: Available in 1m, 5m and 9m versions
Q: Water protection?
A: Viton seal resists moisture
Q: Warranty period?
A: 12 months from shipment date
Q: Approval certifications?
A: None by default (Option 00)
