Core Product Details

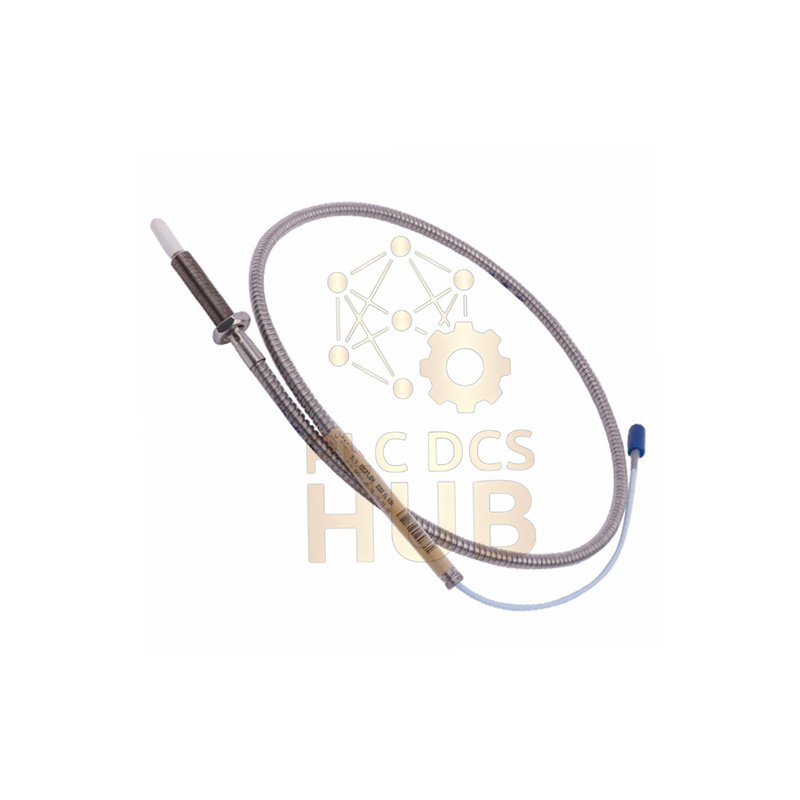

Presenting the Bently Nevada 330904-00-25-50-02-00. This is a long-body 3300 NSv Proximity Probe with M8 threading and armor. It combines a 250mm case with a 5-meter cable for deep mounting applications.
Complete Model Breakdown
Your probe’s full identity: 330904-00-25-50-02-00
- Product Core (330904)
- Series: 3300 NSv Proximity Probes
- Specs: M8X1 thread, includes stainless steel armor.
- Length Option 1 (-00)
- Meaning: 0 mm unthreaded section.
- Result: The entire case body is threaded.
- Length Option 2 (-25)
- Meaning: 250 mm overall case length.
- Application: For deep mounting holes or special installations.
- Cable Option (-50)
- Meaning: 5.0 meters (16.4 feet) total cable.
- Benefit: Reduces or eliminates need for extension cables.
- Connector Option (-02)
- Meaning: Standard ClickLoc connector.
- Note: No protective cap; for immediate installation.
- Approval Option (-00)
- Meaning: No special agency approvals.
- Use: Standard industrial environments.
Key Advantages
- Deep Mount Capability: 250mm length reaches into deep cavities.
- Integrated Long Cable: 5m cable simplifies wiring layout.
- Armored Durability: Steel armor protects against physical damage.
- Chemical Resistance: Superior to older RAM probes for tough processes.
- Direct Replacement: Easy upgrade for existing 3300 RAM systems.
- Discover more in our 3300 NSv Proximity Probes collection.
Technical Specifications
- Manufacturer & Model: Bently Nevada 330904-00-25-50-02-00
- Measurement Parameters
- Linear Range: 1.5 mm (60 mils)
- Optimal Gap: Set to 1.0 mm (40 mils)
- Scale Factor: 7.87 V/mm (200 mV/mil)
- Accuracy (Linearity): < ±0.06 mm
- Electrical Properties
- Probe Resistance (5.0m): 5.3 Ω ± 0.7 Ω
- Frequency Response: 0 to 10 kHz
- Minimum Target: 8.9 mm diameter (flat surface)
- Mechanical Details
- Mounting Thread: M8 x 1
- Case Dimensions: 250mm long, fully threaded
- Construction: Armored, AISI 304 SST case, PPS tip
- Integrated Cable: 5.0 meters, FEP insulated, 75 Ω
- Installation Limits
- Max Thread Engagement: 12 mm
- Recommended Torque: 5.1 N•m (45 in•lb)
- Absolute Max Torque: 7.3 N•m (65 in•lb)
- Min Cable Bend Radius: 25.4 mm (1.0 in)
- Environmental Ratings
- Operating Temp: -52°C to +177°C
- Sealing: Viton® O-ring for pressure differential
Package & Service Info
- Contents: One new probe in original factory packing.
- Warranty Protection: Full 12-month manufacturer warranty.
- Shipping Options: Express delivery via FedEx, UPS, DHL.
- Technical Support: Connect on WhatsApp: +86 158 8020 0923.
Professional FAQ
When would I need a 250mm long probe case?
When mounting through a thick housing or casing. The long length allows the probe to pass through insulation, brackets, or deep mounting bosses to reach the measurement point.
How does the 5-meter cable affect system setup?
It often connects directly to the monitor junction box. This removes one connection point (probe to extension cable), improving reliability and saving installation time.
What is the torque specification for M8x1 threads?
For M8 threads, use 5.1 N•m (45 in•lb) as the target. Never exceed 7.3 N•m (65 in•lb). Over-torquing can strip threads or damage the probe tip.
Can this armored probe be used in high-pressure applications?
The probe has a Viton® O-ring seal for differential pressure. However, it is not pressure-tested before shipping. For critical pressure applications, contact Bently Nevada’s custom department for testing.
What is a key installation tip for long, fully-threaded probes?
Use a thread guide or starting nut. The long, thin threaded body can bend or cross-thread easily. Start the first few threads by hand very carefully to ensure perfect alignment before using a tool.
Buyer’s Selection Guide
- Confirm your equipment uses an M8x1 threaded hole.
- Measure to ensure you need the 250mm probe length.
- The 5m cable is ideal for medium-distance runs.
- This is a standard industrial model (-00 approval).
- All purchases include warranty and reliable courier shipping.
