Description

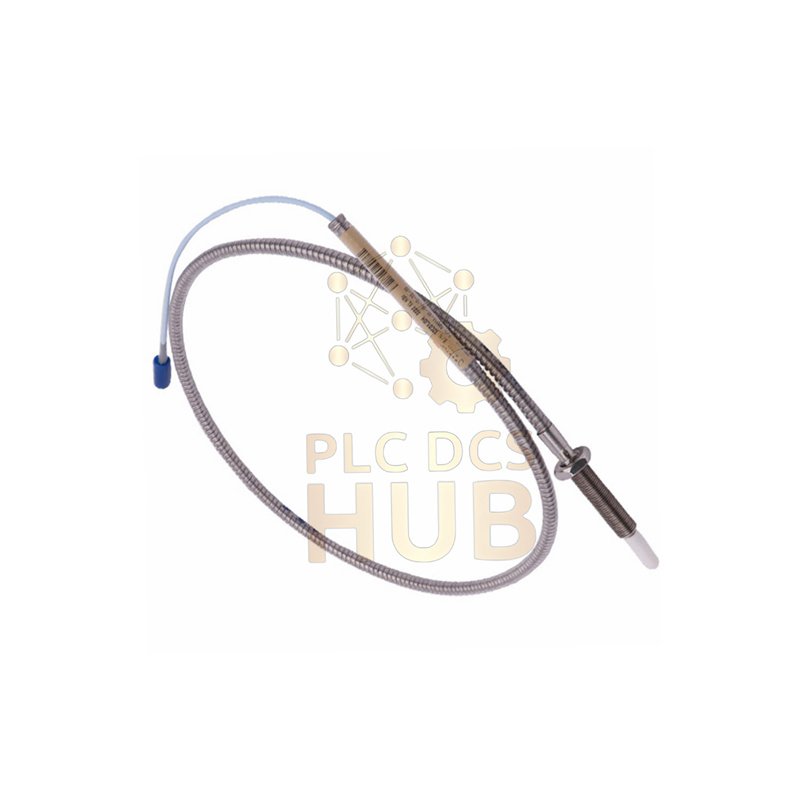

Product Overview
- Brand: Bently Nevada
- Full Part No.: 330904-05-14-05-02-00
- Model Range: 3300 NSv Proximity Probes
- Condition: New Original, Factory Packed
- Warranty: 12 Months
Model Number Breakdown
- 330904: Product Identifier
- Series: 3300 NSv
- Thread: M8 x 1.0 Metric
- Feature: With Protective Armor
- 05: Unthreaded Length
- 50 mm
- 14: Case Dimensions
- 140 mm Total Length
- 05: Cable Specification
- 0.5 Meter (20 Inches) Long
- 02: Connection Type
- ClickLoc Mini-Coaxial Connector
- Standard Cable
- 00: Safety Approvals
- No Special Agency Certifications Required
Technical Specifications
- DC Resistance (0.5m): 4.0 Ω ± 0.5 Ω
- Linear Range: 1.5 mm (60 mils)
- Recommended Gap: 1.0 mm (40 mils)
- Sensitivity (ISF): 7.87 V/mm (+12.5% / -20%)
- Linearity (DSL): Better than ±0.06 mm
- Frequency Response: 0 to 10 kHz
- Minimum Target: 8.9 mm diameter (13 mm recommended)
- Materials: PPS Tip, AISI 304 Stainless Steel Armored Case
- Temperature Range: -52°C to +177°C
- Thread Torque (M8): Finger tight + 0.56 N•m max
- Sealing: Viton® O-ring for pressure differential
- Cable: 75 Ω coaxial with FEP insulation
Frequently Asked Questions
Q: What is the main benefit of the NSv series over older probes?
A: The 3300 NSv Proximity Probes offer better chemical resistance. This makes them suitable for harsh process compressor applications where older probes might fail.
Q: This model has an M8 thread. Where is this size typically used?
A: M8 threads are common on smaller machinery, European equipment, and applications where space is limited. Always check your mounting hole size before ordering.
Q: The cable is only 0.5 meters long. Is that enough?
A: This short cable is designed to connect to an extension cable near the machine. It keeps the expensive probe short and allows you to choose the exact extension length needed.
Q: How do I install this armored probe correctly?
A: Hand-tighten first. For the final torque, do not exceed 0.56 N•m (5 in-lb). Over-tightening can damage the M8 threads. The armor protects the cable, not the threads.
Q: Can I get this part shipped quickly for an urgent repair?
A: Yes. We ship globally using FedEx, UPS, and DHL for express delivery. Every 330904-05-14-05-02-00 probe comes with a full 12-month manufacturer warranty.
