Description
Bently Nevada 3300 NSv Proximity Probe
Product Overview

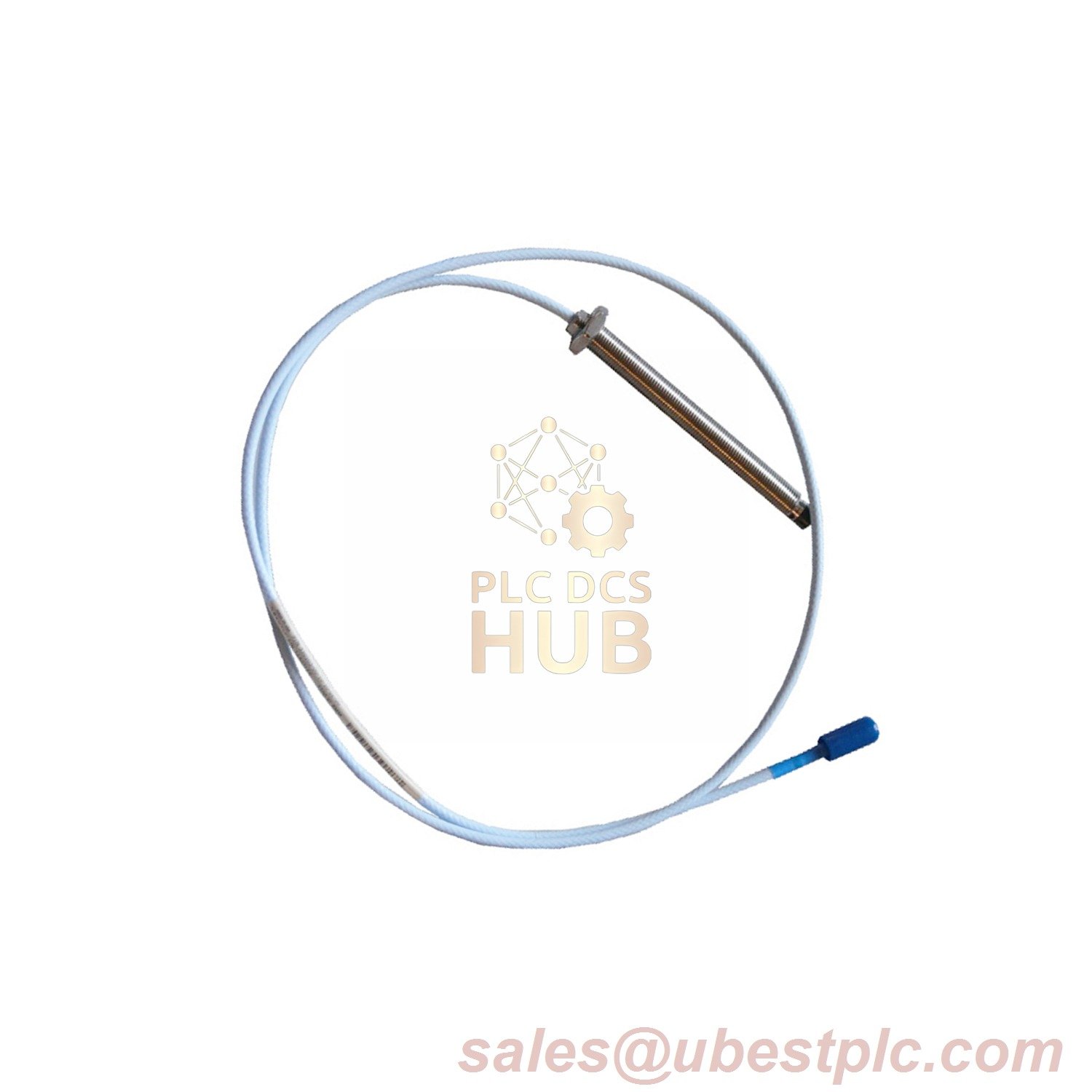

The 330905-08-13-10-02-05 is a multi-certified reverse-mount probe with 1.0m armored cable and M10x1 threads. Designed for hazardous area monitoring, it operates in extreme conditions from -52°C to +177°C with CSA/ATEX certifications, ideal for critical machinery protection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 330905-08-13-10-02-05 |
| Suffix Code | 08(80mm unthreaded)-13(130mm case)-10(1.0m)-02(ClickLoc)-05(CSA/ATEX) |
| DC Resistance | 4.2Ω ±0.5 @ 1m |
| Linear Range | 0.25–1.75mm (-1 to -13 Vdc) |
| Frequency Response | 0-10 kHz (±3dB) |
| Housing Material | AISI 304 Stainless Steel |
| Sealing | Viton® O-ring (15 bar rated) |
Key Features
- 50% higher chemical resistance vs 3300 RAM probes
- Dual-layer EMI shielding with 69.9 pF/m capacitance
- Gold-plated ClickLoc connectors prevent signal loss
Why Choose This Probe?
- Meets API 670 5th Edition standards
- Withstands 20G vibration (IEC 60068-2-6)
- 1.0m cable length optimized for cabinet-to-sensor routing
