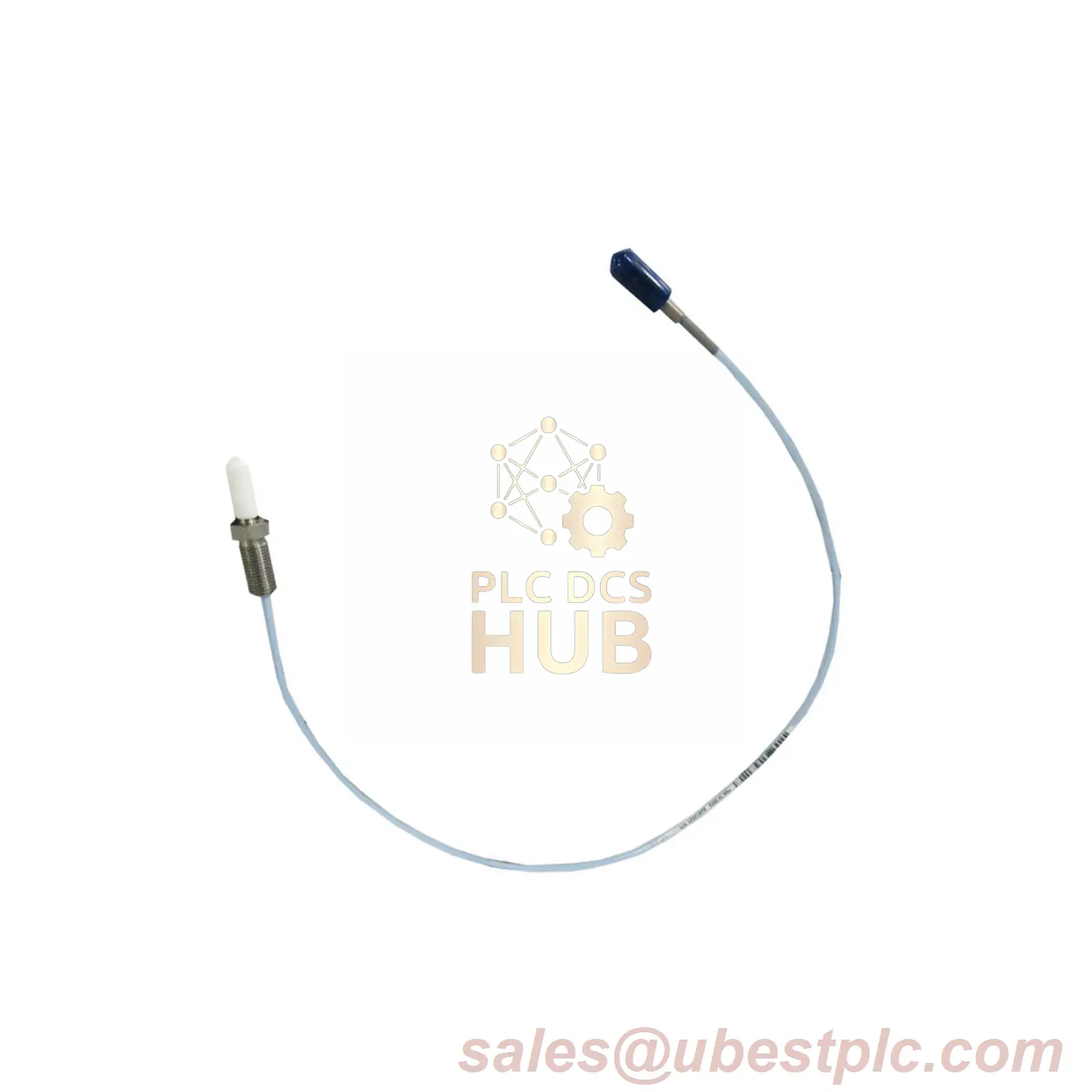

Bently Nevada 330906-02-12-70-02-CN 3300 NSv Reverse Mount Probe

Description

Bently Nevada 3300 NSv Reverse Mount Probe: Compact Precision

High-temperature vibration probe for confined spaces. Made in USA. Stainless steel construction withstands harsh industrial environments. ClickLoc connector ensures secure connections.

Technical Specifications

• Brand: Bently Nevada
• Model: 3300 NSv Reverse Mount Probe
• Part Number: 330906-02-12-70-02-CN
• Full Suffix Breakdown:
  • 02 = 3/8-24 UNF thread size
  • 12 = Standard FEP-insulated coaxial cable
  • 70 = 7.0 meter (23 ft) length
  • 02 = Miniature ClickLoc connector
  • CN = Country-specific certifications
• Probe Tip: Polyphenylene Sulfide (PPS) – chemical resistant
• Body Material: AISI 304 Stainless Steel
• Electrical Specs:
  • 75 Ω impedance
  • Gold-plated brass connector
• Temp Range: -52°C to +177°C operational
• Mechanical Strength: 220N (50 lb) tensile rating
• Cable Jacket: FEP insulation for high temp resistance

Unique Performance Data

• Thermal Cycling: 500+ cycles at -52°C/+177°C with <0.5% calibration drift
• Vibration Resistance: 15g @ 2kHz without signal degradation
• Chemical Exposure: Withstands 72hr immersion in oils/solvents
• Connector Durability: 500+ mating cycles maintaining <10mΩ resistance

FAQ

Q: What makes “reverse mount” different?
A: Installs from backside for confined spaces – saves 40% clearance space

Q: Meaning of “CN” suffix?
A: Country-specific approvals (e.g., China GB standards)

Q: Maximum cable bend radius?
A: Minimum 25mm (1″) radius to prevent FEP jacket damage

Q: Compatible with standard 3300 systems?
A: Yes – works with all 3300 XL NSv Proximitor Sensors

Q: Chemical resistance of PPS tip?
A: Resists acids, alkalis, hydrocarbons up to 150°C

Q: Difference between -70 and -02 length codes?
A: -70 = 7m cable, -02 = connector type (ClickLoc)
