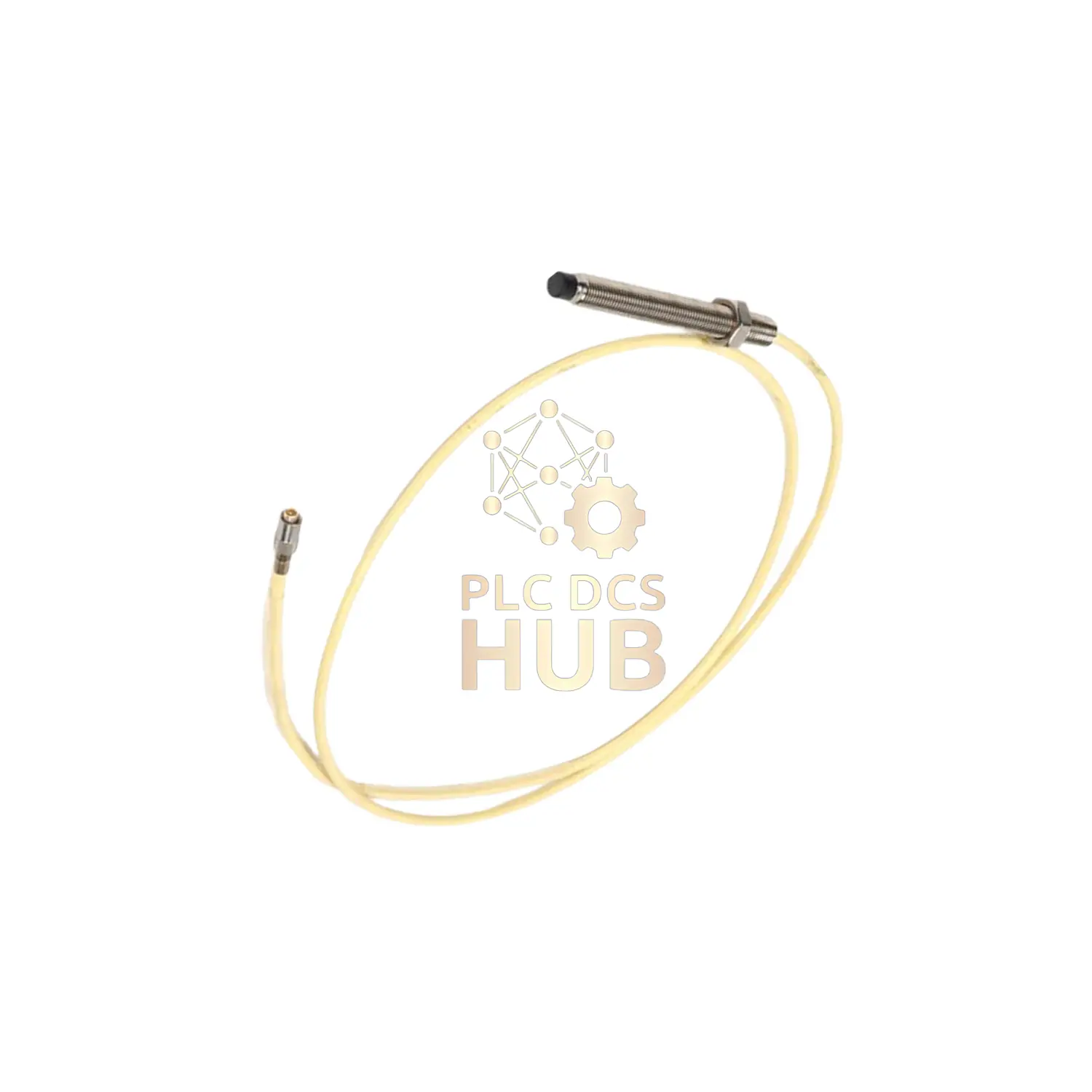

Bently Nevada 7200 Proximity Mount Probe 21504-00-16-05-02

Description

Bently Nevada 21504-00-16-05-02 Industrial Vibration Sentinel

Precision Engineering for Critical Systems

8mm High-Fidelity Sensor | 160mm Compact Profile | Factory-Calibrated Accuracy

Advanced Performance Metrics

• Dynamic Resolution: 0.002mm (2μm) at 25°C
• Phase Shift: <1° @ 1kHz
• EMI Resistance: 100V/m @ 10kHz-1GHz
• Shock Survival: 100g @ 11ms (MIL-STD-202)
• Dielectric Strength: 1500V AC (probe to case)

Configuration DNA

21504-00-16-05-02
├── 00: Zero-clearance mounting (flush installation)
├── 16: 160mm armored housing (6.3")
├── 05: 500mm flexible cable (20±3")
└── 02: MIL-spec twist-lock connector

Operational Excellence Features

• ▸ 5000hr MTBF @ 85°C continuous operation
• ▸ <1ms response delay for real-time control
• ▸ Reverse polarity protection (-30V surge)
• ▸ 360° radial sensing capability

Technical Support Insights

Q: Suitable for vertical shaft downward mounting?
A: Yes – IP67 sealing prevents lubricant ingress in inverted installations

Q: Maximum cable extension length?
A: 1000m with approved coaxial extenders (signal loss <3%)

Q: VFD interference mitigation?
A: Built-in RFI filtering for <50mVpp noise in PWM environments
