Bently Nevada High Temperature Probe | 330301-000-011-20-90-00-00

Description

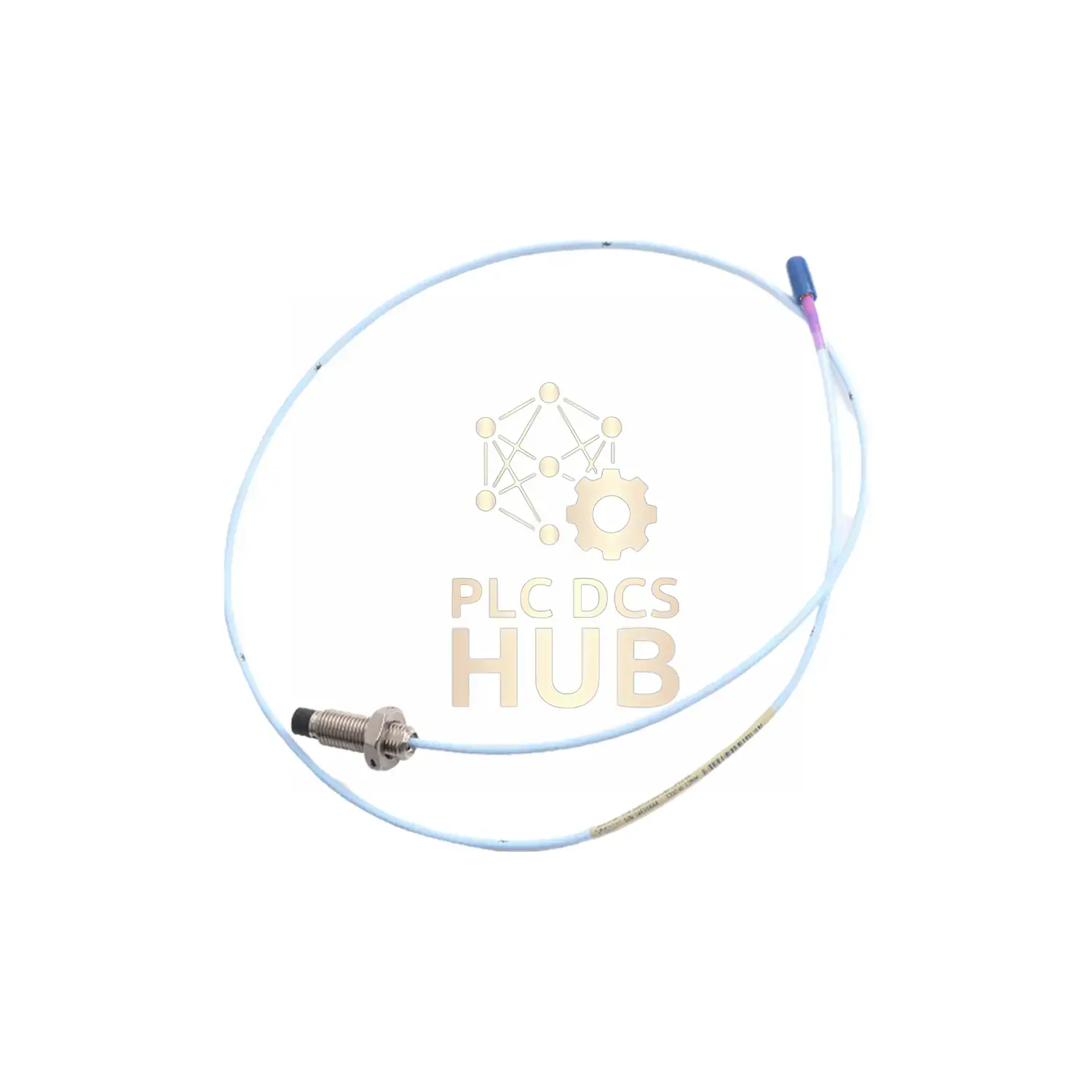

Bently Nevada 3300 XL HT Probe: Industrial Threaded Sensor for Extreme Heat

Designed for high-vibration applications up to 350°C/662°F with 3/4-16 UNF threads. Features 2m armored cable + 7m extension. Made in USA.

Get product documents:

• Download Installation Guide
• View Technical Specifications

Product Identification

• Brand: Bently Nevada
• Model: 3300 XL High Temperature Probe
• Full Part Number: 330301-000-011-20-90-00-00
• Configuration Map:
  • 000 → Unthreaded length: 0 inches
  • 011 → Case length: 1.1 inches
  • 20 → Hardline cable: 2.0 meters
  • 90 → Total cable: 9.0 meters
  • 00 → No cable armor
  • 00 → No special approvals

Technical Performance

• Heat Limit: -34°C to +350°C (-30°F to 662°F)
• Thread Type: 3/4-16 UNF industrial
• Accuracy: ±78μm linear deviation
• Response Speed: 0-6,000 Hz (±3dB)
• Detection Range: 4.0mm linear zone
• Resistance: 5.82Ω (2m cable)
• Sensitivity: 3.94V/mm ±9.65%
• Min Target Size: 30.5mm diameter
• Case Material: 316L stainless steel

Premium Features

• 3/4-16 UNF threaded for secure mounting
• Ceramic tip withstands thermal shock
• 316L stainless steel corrosion resistance
• Stable with 305m field wiring
• Low weight: 234g cable + 132g case

Shipping & Support

• 12-month product warranty
• Global delivery: FedEx, UPS, DHL
• Includes 9m cable system
• Dedicated technical support

Technical Questions

• Q: What’s the thread size for installation?
  A: Standard 3/4-16 UNF threading
• Q: How long is the actual probe cable?
  A: 2m hardline + 7m extension = 9m total
• Q: Can this monitor high-speed shafts?
  A: Yes, handles up to 6,000 Hz vibrations
• Q: Is calibration included?
  A> Factory-calibrated; annual check advised
• Q: Suitable for outdoor use?
  A: Yes, with proper weather protection

Key Advantages

350°C Rating
UNF Threads
±78μm Precision
9m Range
