Description
Overview

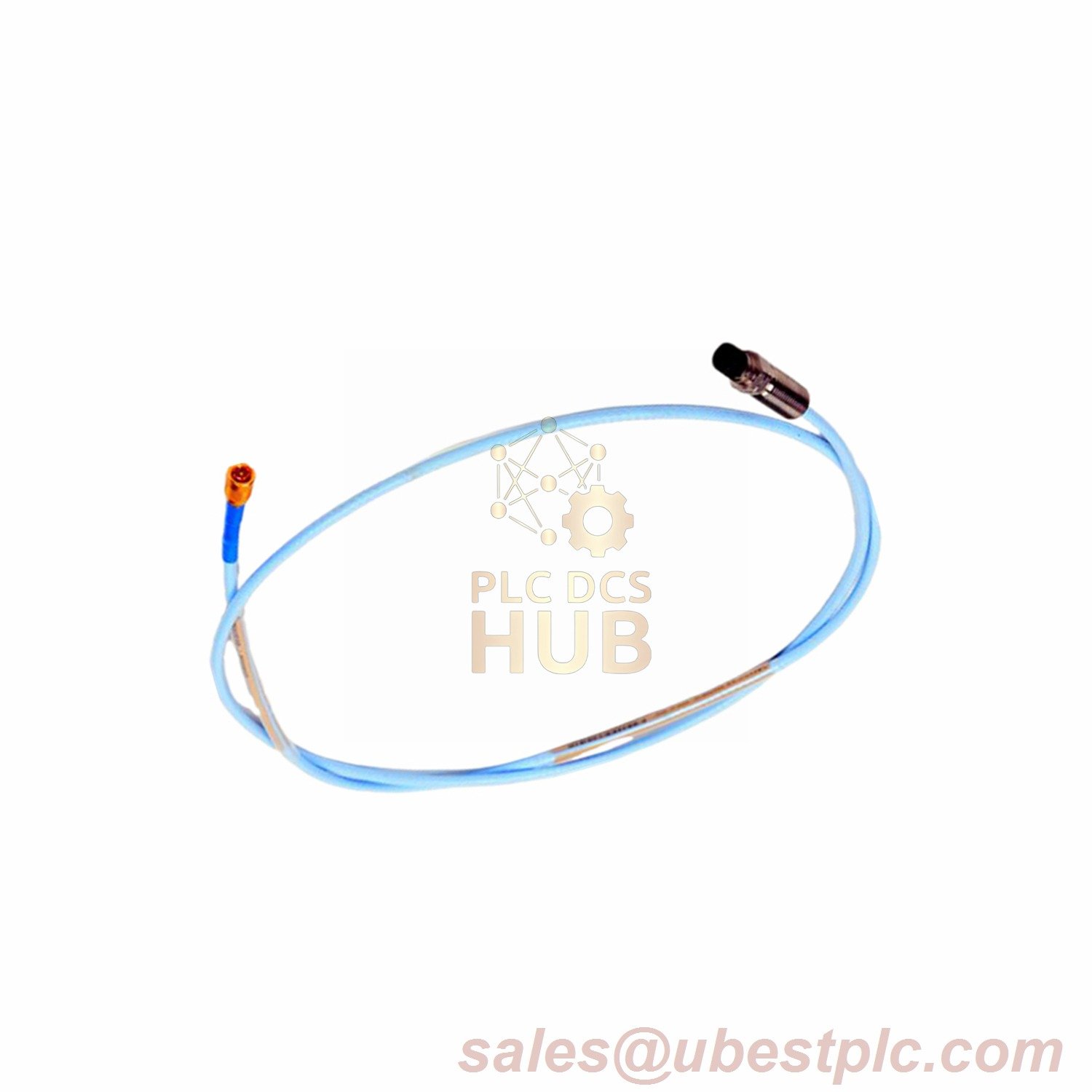

The Bently Nevada 3300 XL 8 mm Proximity Probe (Model 330104-00-10-10-02-00) is optimized for industrial applications demanding extended cable reach and mid-sized housing. Featuring a 100 mm stainless steel case (AISI 303/304) and a fully threaded design, this probe ensures adaptability in diverse installations. Its 1.0-meter standard cable with a ClickLoc connector guarantees flexible routing, while the absence of agency certifications streamlines deployment. Engineered for precision, the probe operates within a -17.5 Vdc to -26 Vdc range and maintains stability at altitudes up to 2000 meters, even in harsh operational environments.
Technical Specifications
| Category | Details |
|---|---|
| Brand | Bently Nevada |
| Suffix Breakdown | – 00: 0 mm unthreaded length – 10: 100 mm case length – 10: 1.0 m cable – 02: ClickLoc connector (standard) – 00: No agency approvals |
| Materials | Case: AISI 303/304 SST Tip: PPS Seal: Viton® O-ring |
| Electrical | Input Voltage: -17.5 to -26 Vdc Common-Mode Rejection Ratio (CMRR): >90 dB @ 60 Hz Power Supply Rejection Ratio (PSRR): 60 dB @ 100 Hz Overload Recovery Time: <50 ms |
| Mechanical | Torsional Rigidity: 20 N·m/rad Axial Load Capacity: 40 N max Mounting Angular Misalignment Tolerance: ±2° |
Contact Support
For certification documents or custom configurations:
sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
