Description

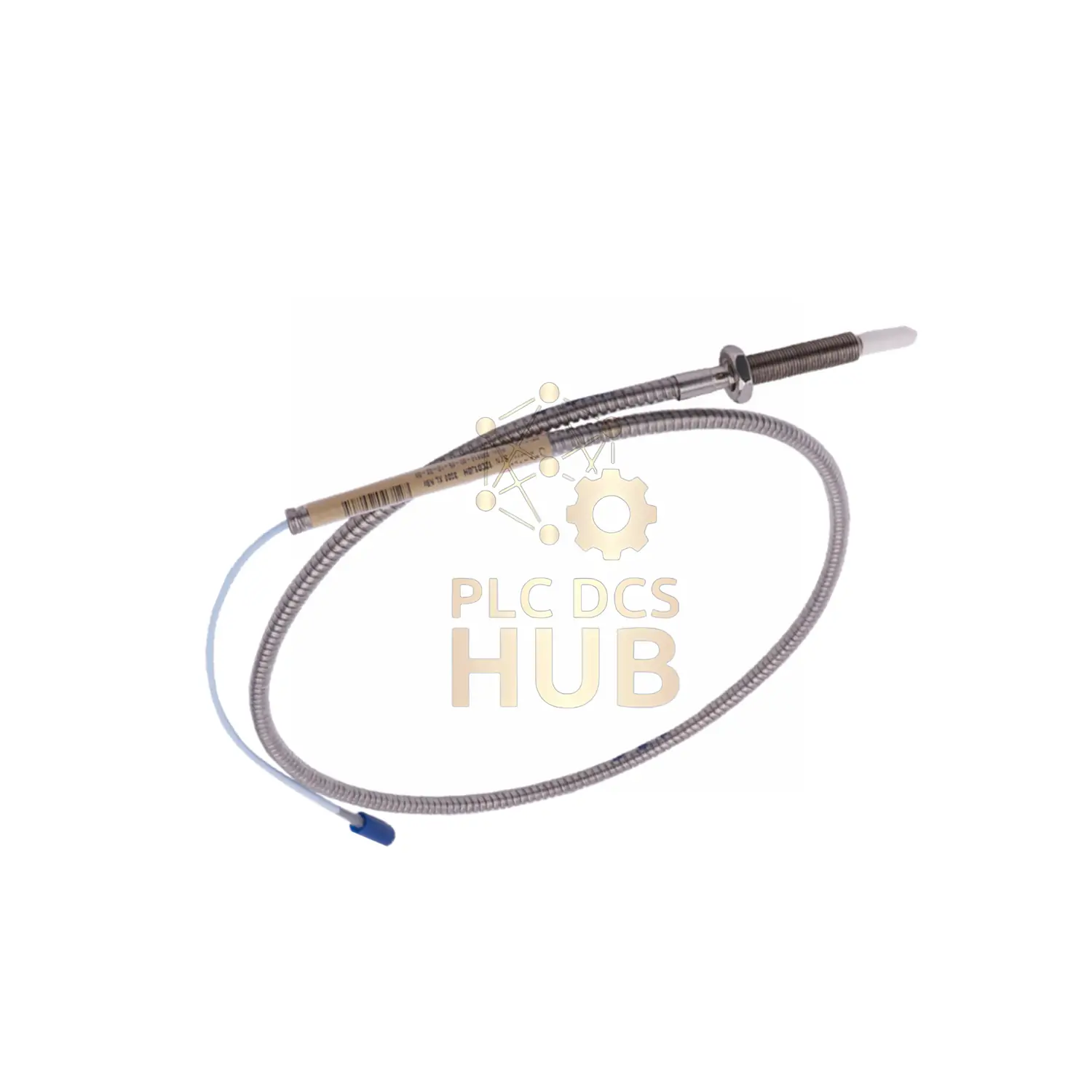

Bently Nevada Long-Reach Armored Sensor Probe
Core Features
Factory-fresh 330904-00-15-50-01-00 with 150mm stainless steel armor. Includes 5m cable and connector protector. 12-month warranty with global shipping via FedEx/UPS/DHL.
Technical Specifications
- Part Number: 330904-00-15-50-01-00
- Case Length: 150mm (long-reach design)
- Cable Length: 5.0 meters (16.4 ft)
- Output Signal: -1V to -13V DC linear
- Response Time: 0.05ms typical
- Insulation: FEP fluoropolymer
- Weight: 185g (with armor)
Installation Guide
- Optimal sensing distance: 1.0mm from target
- Max thread engagement: 12mm
- Hand-tighten only (0.56 N•m max)
- Maintain >25mm cable bend radius
Performance Data
- Temperature Range: -52°C to +177°C
- Shock Resistance: 75g peak (11ms duration)
- Vibration Limit: 25g (10Hz to 2kHz)
- Cable Pull Strength: 50N minimum
Package Includes
- Armored probe with 5m cable
- ClickLoc connector with protector
- Mounting instructions
- Factory warranty card
Common Questions
Q: Why choose armored version?
A: Protects against physical damage in harsh areas
Q: Can I use shorter cables?
A: Yes – contact for custom lengths
Q: Pressure rating?
A: Viton sealed – consult for specific pressure tests
Q: Lead time?
A: Ships same day via FedEx/UPS/DHL
Download installation diagrams and performance charts – click here!3300 XL NSv Proximity Transducer System Datasheet
