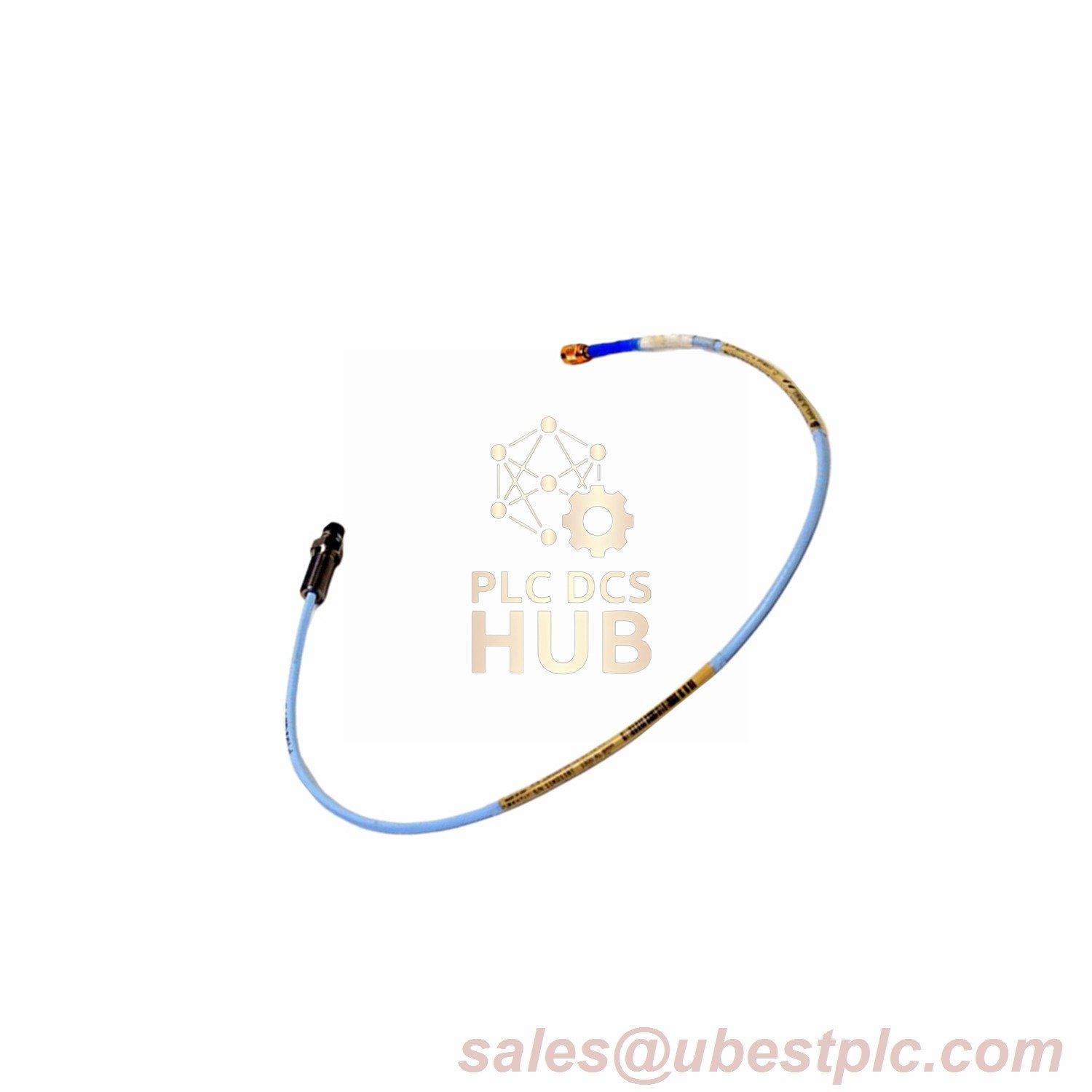

The Bently Nevada 3300 XL 8 mm Probe (Model 330140-08-50-02-00) combines rugged reliability with extended reach for industrial monitoring systems. Designed exclusively for 5-meter Proximitor sensors, this probe features a 5.0-meter standard cable and a miniature ClickLoc connector, ensuring secure connectivity in demanding environments. Its patented TipLoc molding and CableLoc design enhance durability, providing 330 N (75 lbf) pull strength, while the 8 mm PPS plastic tip and stainless steel casing resist mechanical stress.
Technical Specifications
- Brand: Bently Nevada
- Model: 330140-08-50-02-00
- Suffix Breakdown:
- 08: 0.8-inch case length
- 50: 5.0-meter cable (16.4 feet)
- 02: Miniature coaxial ClickLoc connector + standard cable
- 00: No agency certifications required
- Suffix Breakdown:
- Probe Tip: Polyphenylene sulfide (PPS)
- Case Material: AISI 303/304 stainless steel
- Temperature Range:
- Standard: -62°F to +350°F (-52°C to +177°C)
- Extended: Tip up to +425°F (+218°C); cable/connector up to +500°F (+260°C)
- DC Resistance: 8.73 Ω ±0.50 (5.0-meter length)
- Scale Factor: 7.87 V/mm ±5% (1/5m systems) or ±6.5% (9m/ETR systems)
- Linearity Deviation: <±0.025 mm (1 mil) for 1/5m; <±0.038 mm (1.5 mil) for 9m/ETR
- Humidity Resistance: <3% ASF change at 93% humidity (56 days, IEC 68-2-3)
- Pressure Seal: Viton® O-ring (untested pre-shipment)
- Cable Jacket: Abrasion-resistant PVC with 50+ mating cycles
Contact Information
For inquiries or custom configurations, email sales@ubestplc.com. Our team will gladly assist with technical details or order processing.
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
