Description
Product Highlights

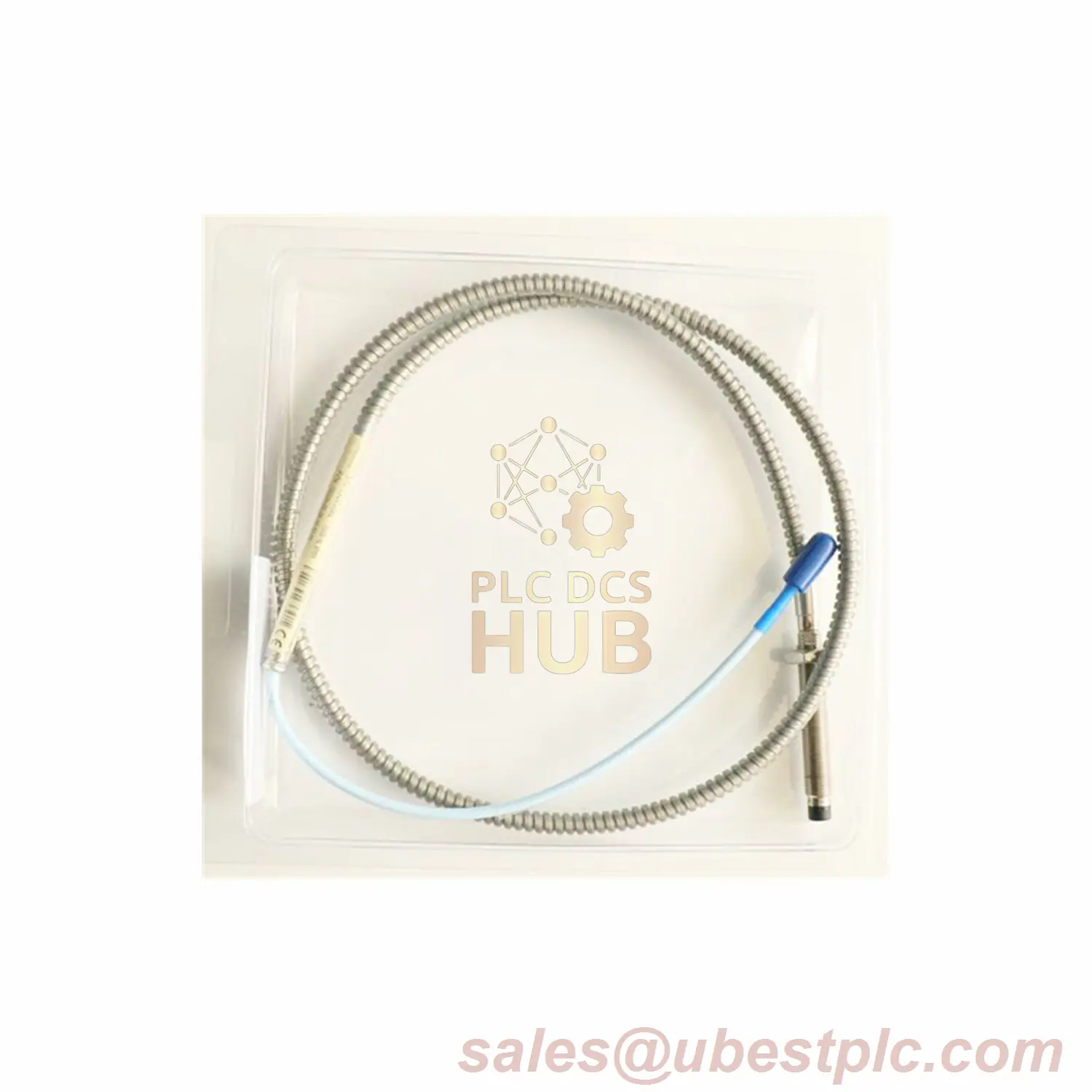

The Bently Nevada 3300 XL Probe (Part No. 330191-00-08-15-CN) features country-specific certifications and a 1.5m cable. Built with 8mm rugged design, it resists physical damage in harsh environments. Includes 12-month warranty.
Core Specifications for 330191-00-08-15-CN
| Feature | Detail |
|---|---|
| Certification Code | CN (Local Compliance) |
| Cable Pull Strength | 330N at probe / 270N at connector |
| Voltage Tolerance | -17.5V to -26V DC |
Enhanced Protection
- Seal Type: Viton® O-ring (non-pressure tested)
- Waterproof Option: FluidLoc leak-proof cable
- Thread Lock: 3/8-24 UNF (max 0.563″ depth)
Electrical Performance
- Output resistance: 50Ω
- DC resistance (1.5m): 7.73Ω ±0.50
- Power consumption: <12mA
Installation Guide
- Max connector torque: 5 in-lbf
- Works with BN Prox systems only
- Not for 1m systems (no extensions)
Industrial Applications
- Chemical plant pump monitoring
- Wastewater treatment gear protection
- Steel mill rotating equipment
Package Includes
- 1x 1.5m probe assembly
- Installation guide
- Compliance documents
Questions? Email sales@ubestplc.com
