Bently Nevada – Proximity Probes Without Armor 330191-00-40-15-CN

Description

Overview

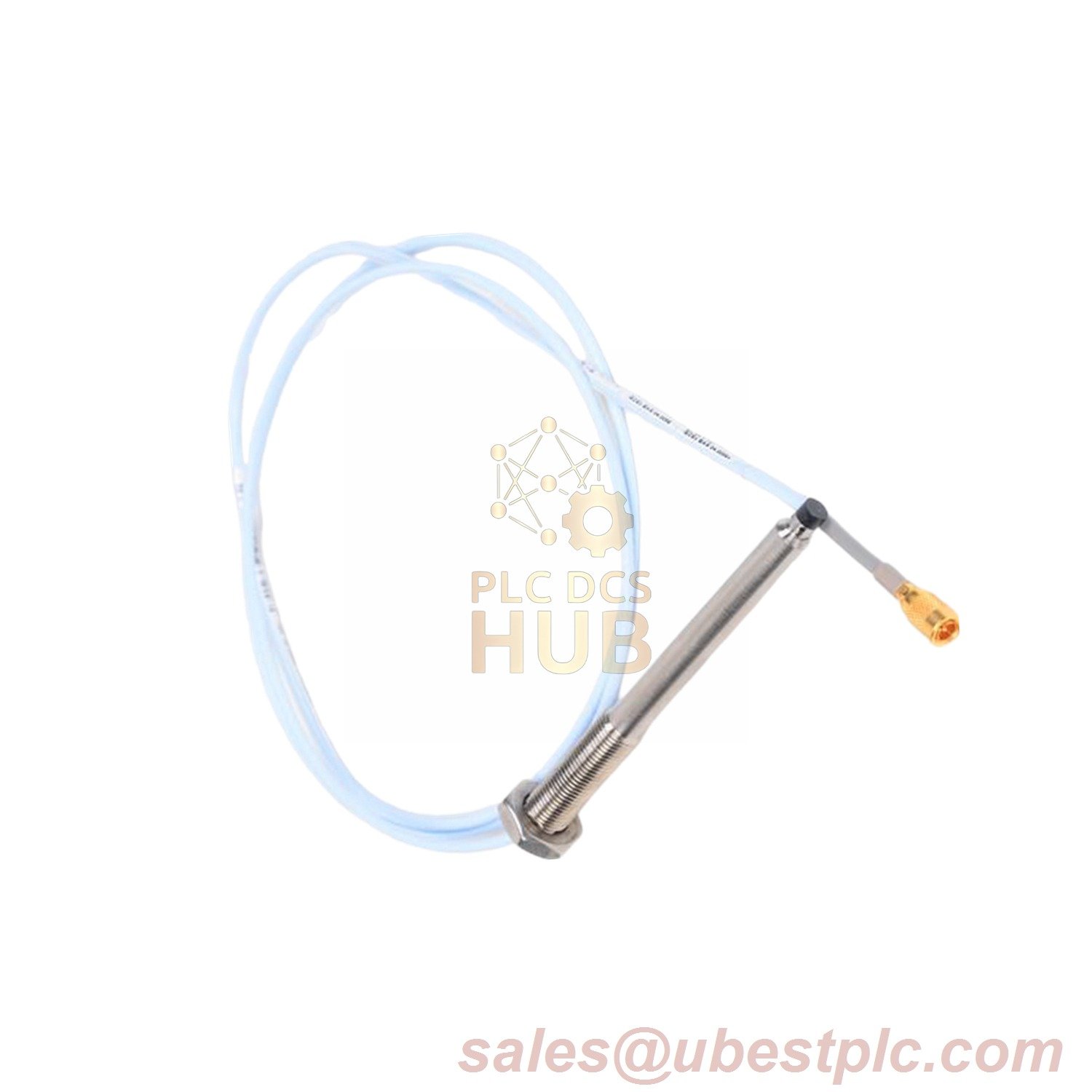

The Bently Nevada 330191 8mm ETR Probe (Part No. 330191-00-40-15-CN) is engineered for precision vibration monitoring in explosive or high-temperature industrial settings. Featuring a 1.5-meter FEP-insulated cable and 3/8-24 UNF threading, this probe integrates patented TipLoc and CableLoc technologies for secure connectivity and durability. Certified for country-specific safety standards (CN), it is ideal for hazardous zones requiring compliance and reliability.

Technical Specifications

• Brand: Bently Nevada
• Model: 330191 3300 XL 8mm ETR Probe (Unarmored)
• 330191-00-40-15-CN Breakdown:
  • 00: 0.0-inch unthreaded length
  • 40: 4.0-inch overall case length
  • 15: 1.5-meter cable (4.9 feet)
  • CN: Country-specific agency approval
• Electrical Parameters:
  • DC Resistance: 7.75 Ω ±0.48 (1.5m cable)
  • Power Supply: -23.8 Vdc to -26 Vdc (barrier-compatible)
  • Output Resistance: 52 Ω
  • Sensitivity: <1.7 mV/V input voltage fluctuation
• Mechanical Design:
  • Tip Material: Polyphenylene sulfide (PPS)
  • Case Material: AISI 316L stainless steel
  • Connector: Gold-plated beryllium copper (0.57 N•m torque)
• Temperature Range:
  • Standard (EPL Ga/Gc): -55°C to +235°C (-67°F to +455°F)
  • Extended (EPL Dc): -55°C to +280°C (T280°C classification)
• Weight: 318 g/m (11.2 oz/ft)

Contact Support

For certification documents or custom configurations:
sales@ubestplc.com

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
