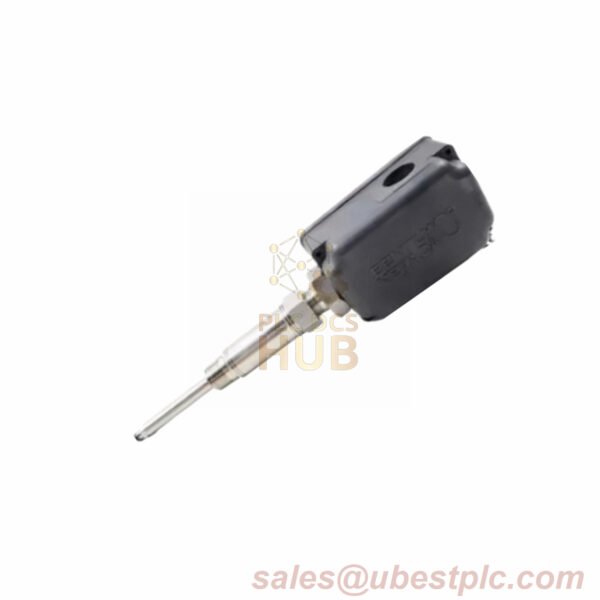

The 330881-28-04-145-03-02 PROXPAC XL Transducer is a heavy-duty industrial sensor with IP66/BASEEFA-certified housing and 145 mm probe penetration. Designed for extreme environments (-51°C to +177°C), it features a 3300 XL 8 mm probe, UV-resistant PPS housing, and 3/4-14 NPT mounting. Made in USA, COO available.
- Impact Resistance: 7 Joule impact rating at -39°C to +115°C.
- Precision Output: 7.87 V/mm ±5% incremental scale factor.
- Mechanical Stability: Supports 912 N load @ 38 mm offset.
Technical Data
| Brand | Bently Nevada |
|---|---|
| Model | 330881-28-04-145-03-02 |
| Suffix Codes | 28: 8 mm probe + multi-approval 04: 40 mm standoff adapter 145: 145 mm penetration 03: M20 fittings 02: 3/4-14 NPT thread |
| Torque Specs | 29.5 N·m (retaining nut) 39.3 N·m (sleeve locknut) |
| Frequency Response | 0-10 kHz (±3 dB) |
| Target Requirements | Min. 15.2 mm flat target Min. 50.8 mm shaft diameter |
