Bently Nevada Standard Extension Cable 330130-040-02-00

Description

Overview

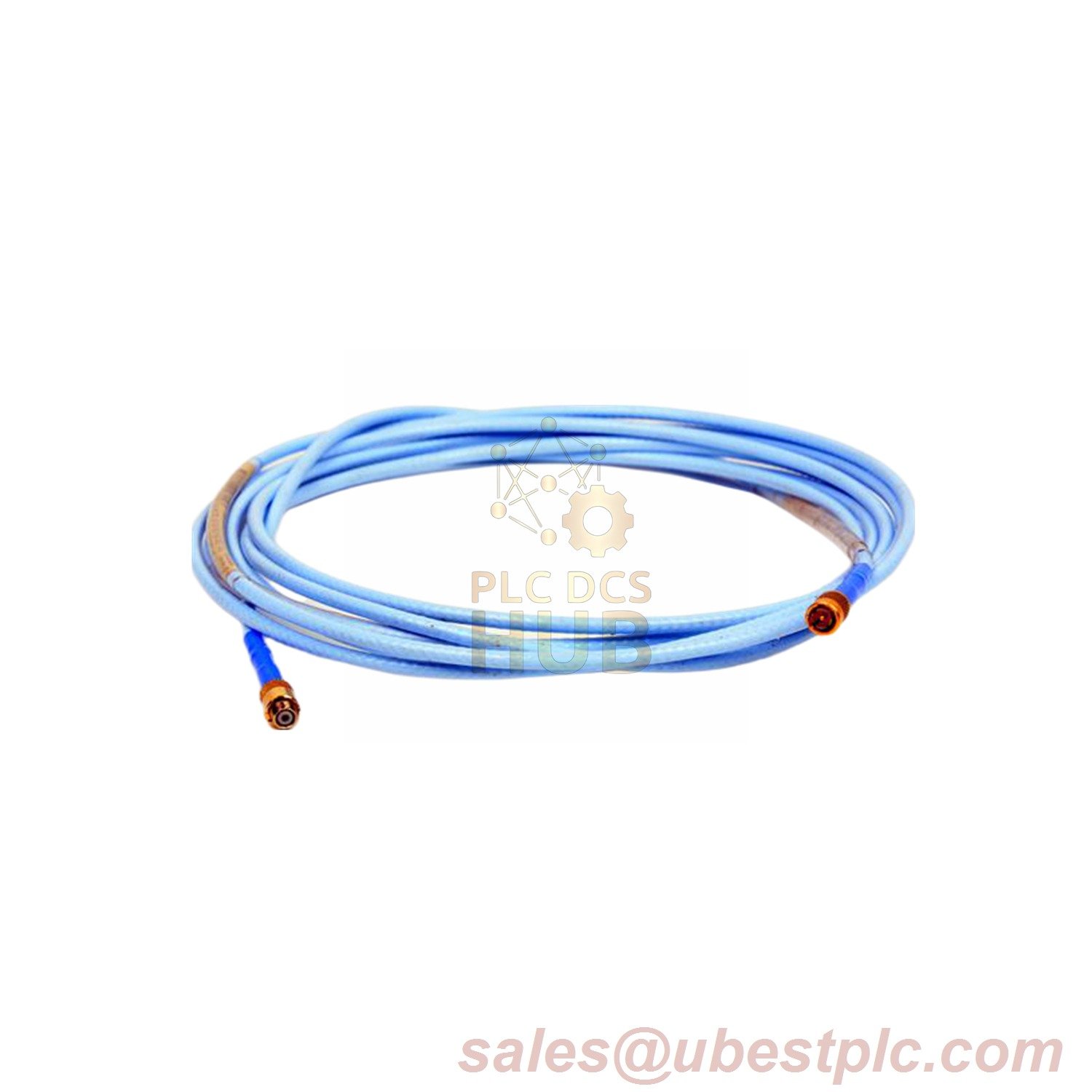

The Bently Nevada 3300 XL Extension Cable (Product No. 330130-040-02-00) delivers reliable signal transmission for vibration monitoring systems. Designed with a 4.0-meter standard cable and connector protector, it ensures compatibility with 3300 XL probes while offering flexibility in installations. Optional armored variants (103 g/m) enhance durability in harsh environments. Silicone tape is included for temporary sealing, though not recommended for oil-exposed applications.

Technical Specifications

• Brand: Bently Nevada
• Model: 330130-040-02-00
  • Cable Length: 4.0 meters (11.5 ft)
  • Cable Type: Standard (unarmored)
  • Connector Protector: Included (silicone tape alternative provided)
• Frequency Response: DC to 10 kHz (±0.5 dB)
• Impedance: 75 Ω nominal (matched to probe output)
• Shielding Effectiveness: >85 dB at 100 MHz (per MIL-STD-461)
• Maximum Voltage Rating: 300 VAC continuous, 1.5 kV transient
• Insulation Resistance: ≥1 GΩ at 500 VDC (conductor to shield)
• Bend Radius: Minimum 30 mm (1.18 in) for repeated flexing
• Flammability Rating: UL 94 V-2 compliant (self-extinguishing)
• Propagation Delay: 4.8 ns/m (1.46 ns/ft) typical

Contact Information

For pricing or customization, email sales@ubestplc.com

Check official datasheet for more detailed information: 3300 XL 8 mm Proximity Transducer System Datasheet
