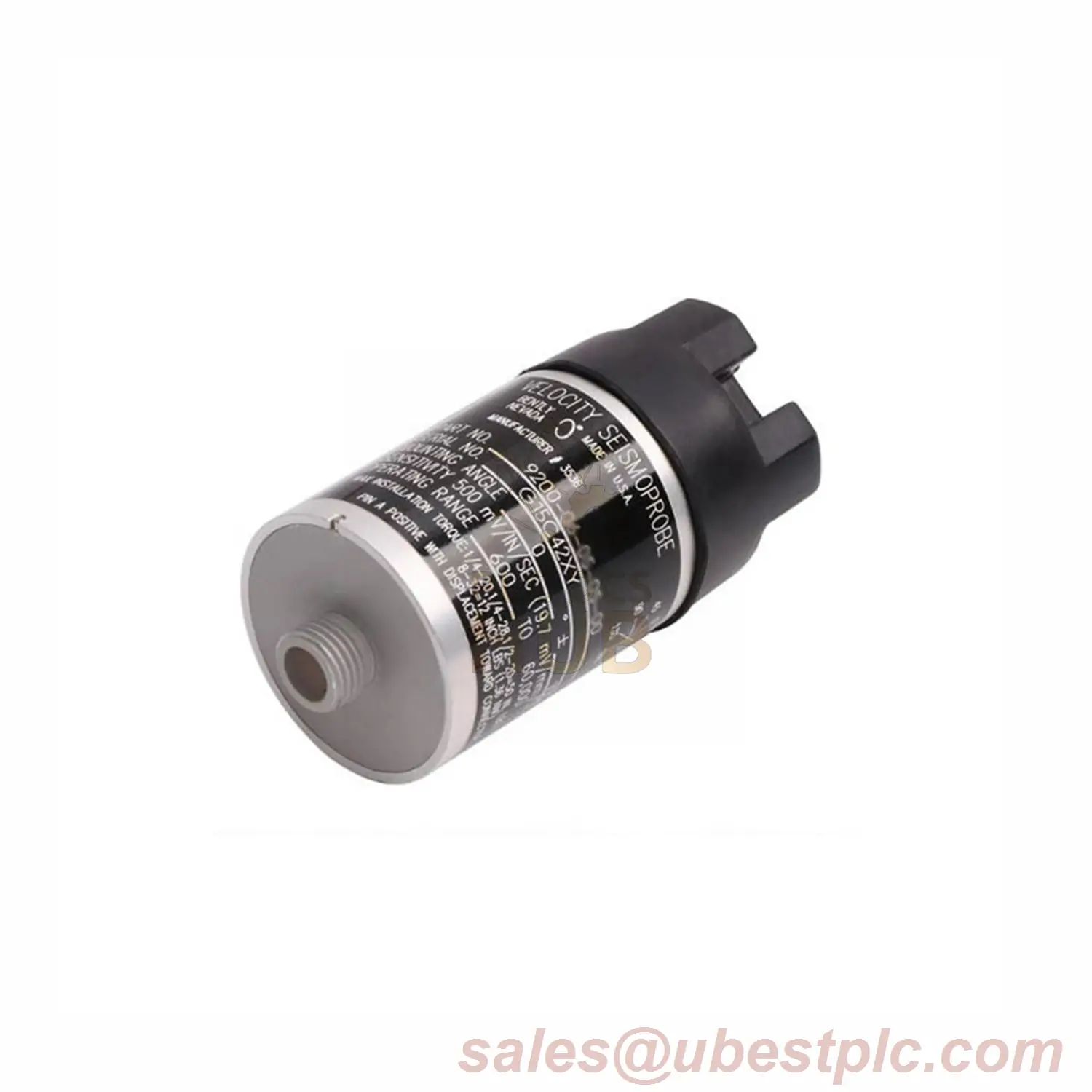

Bently Nevada 9200-03-05-05-00 Two-Wire Velocity Seismoprobe Transducer
New & original Bently Nevada 9200 transducer with 12-month factory warranty. Designed for precise vibration measurement in industrial applications. Ships globally via FedEx, UPS, or DHL.
Key Features
- 2-wire design for simplified installation
- 20 mV/mm/s sensitivity (±5%)
- Wide -29°C to +121°C operating range
- 4.5 Hz minimum frequency response
Technical Specifications
- Brand: Bently Nevada
- Model: 9200-03-05-05-00
- Measurement Range: 25 mm/s (1 in/s)
- Frequency Response: 4.5 Hz – 100 Hz
- Output Signal: 20 mV/mm/s ±5%
Configuration Options
- Mounting Angle: 90° ±2.5°
- Connector: Terminal block (Top Mount)
- Mounting Base: 1/2-in 20 UNF-3A stud
- Agency Approval: None
Installation & Setup
- Mount at 90° calibration angle
- Use 10 kΩ load between terminals A-B
- Ensure 1.25 kΩ coil resistance
Applications
- Power generation turbines
- Oil & gas compressors
- Industrial pumps
Maintenance & Lifespan
- 5+ year service life with proper use
- Clean with dry cloth only
- Avoid submersion in liquids
Safety Warnings
- Max input voltage: 30 VDC
- Do not expose to >250°F environments
- Use ESD protection during handling
FAQ
Q: What’s the sensitivity tolerance?
A: ±5% when properly oriented.
Q: Temperature effects?
A: 0.2%/°C coefficient applies above 22°C.
Q: Warranty coverage?
A: 12 months from shipment date.
