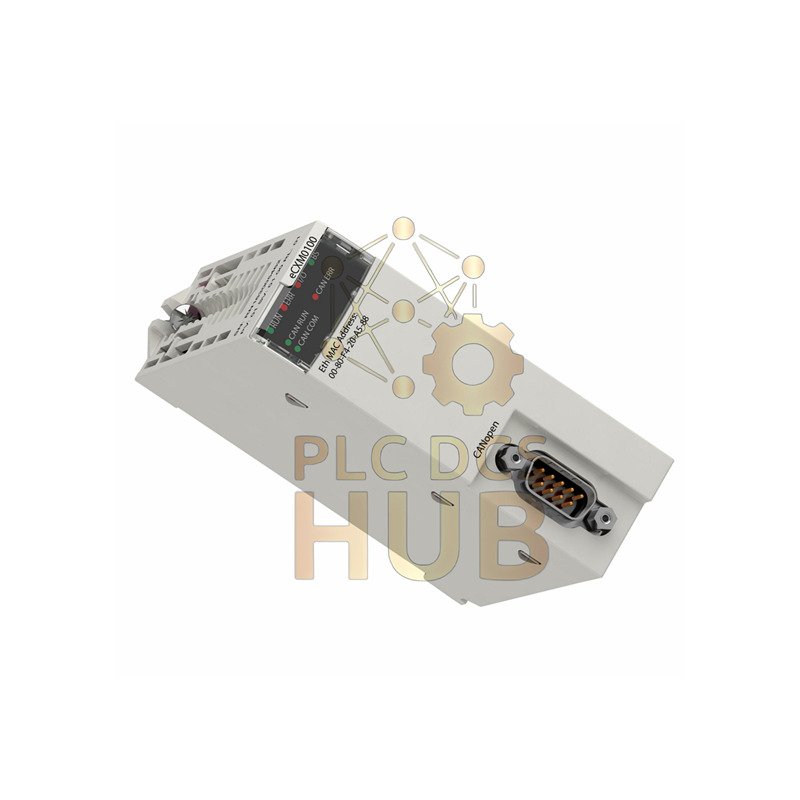

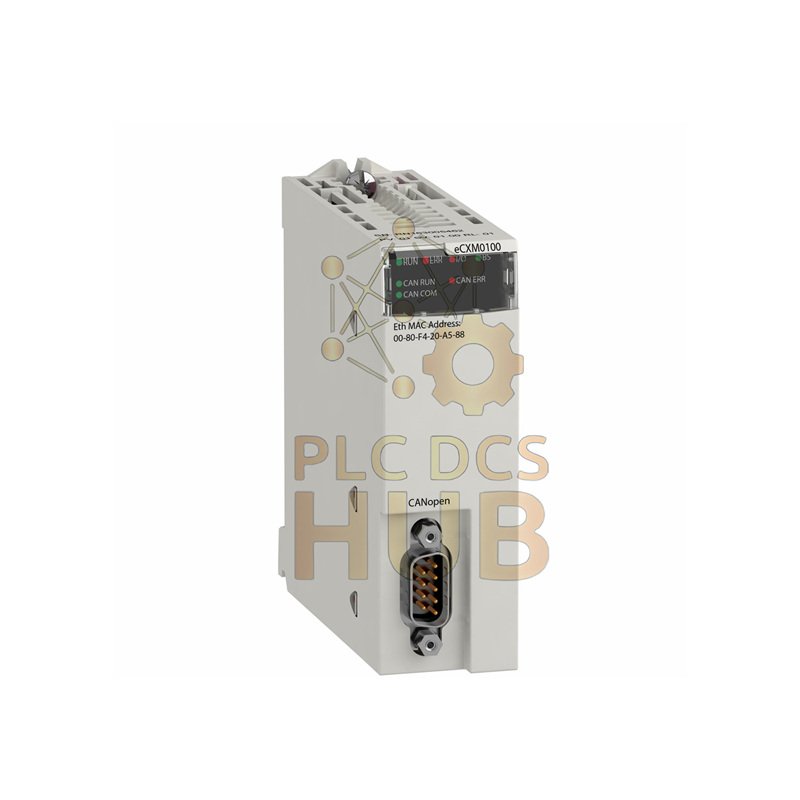

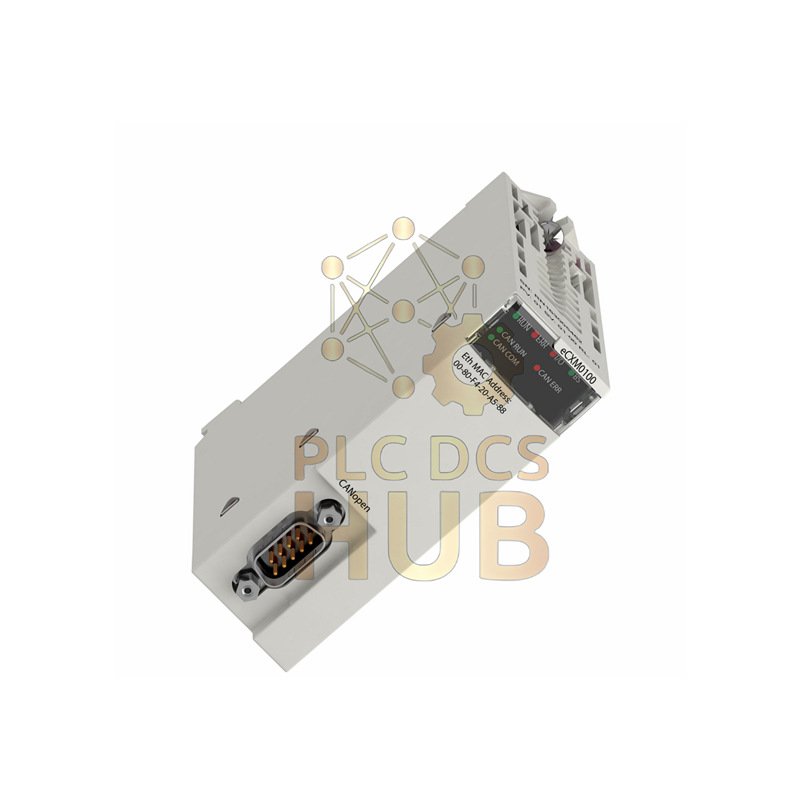

Schneider Electric BMECXM0100H CANopen Module
The BMECXM0100H module connects your Modicon X80 system to CANopen networks. This robust communication module works perfectly with M580 PLCs in industrial settings. Get the complete installation guide and technical data sheet for your BMECXM0100H module by downloading the manual now.
Technical Specifications & Performance Data
- Brand & Model: Schneider Electric BMECXM0100H
- Product Range: Modicon X80 CANopen Module
- Network Structure: Open industrial fieldbus (CANopen)
- Physical Connection: DB9 male connector for secure linking
- Transmission Method: NRZ encoding for clear data signals
- Cable Type: Profibus DP twisted shielded pair cable
- Data Rates & Distance: 9.6 kbit/s to 12 Mbit/s (100m to 1200m)
- Device Capacity: Supports up to 63 server devices on network
- Power Requirements: 24V DC internal with 70 mA current draw
- Module Format: Standard industrial module design
Environmental Operating Specifications
- Temperature Range: -13°F to 158°F (-25°C to 70°C) operational
- Storage Conditions: -49°F to 185°F (-45°C to 85°C) safe storage
- Humidity Tolerance: 10% to 95% relative humidity level
- Maximum Altitude: 6,561 feet (2,000 meters) above sea level
- Protective Features: Conformal coating protects circuitry
- Environmental Resistance: Handles gas, dust, sand, salt exposure
- Hazardous Areas: Certified for Class I Division 2 locations
Certifications & Industry Standards
- Safety Certifications: CE, UL, CSA, RCM, EAC, Merchant Navy
- Hazardous Area Approval: ATEX and IECEx Zone 2/22 compliant
- Industrial Standards: EN/IEC 61131-2, EN/IEC 61010-2-201
- Quality Assurance: UL 61010-2-201, CSA C22.2 No 61010-2-201
- Marine Certification: IACS E10 for marine applications
Packaging & Shipping Details
- Unit Package: 1 module per individual box (PCE)
- Package Dimensions: 4.65 x 4.45 x 2.17 inches
- Unit Weight: 6.843 ounces (194 grams) per module
- Bulk Package: 15 modules in master case (S02)
- Bulk Dimensions: 15.75 x 11.81 x 5.91 inches
- Bulk Weight: 7.13 pounds (3.234 kg) total weight
- Shipping Methods: FedEx, UPS, DHL express options available
- Product Origin: Manufactured in Canada (CA)
- Warranty Coverage: 12-month quality assurance guarantee
Professional FAQ Section
- What maximum distance can this CANopen module achieve?
- It reaches 3937 feet (1200m) at lower data rates like 9.6 kbit/s.
- How many devices can connect to the BMECXM0100H network?
- The module supports networks with up to 63 server devices maximum.
- What connector type does this module use for CANopen?
- It features a standard DB9 male connector for field wiring.
- Can this module operate in cold industrial environments?
- Yes, it functions at temperatures as low as -13°F (-25°C).
- What power supply does the communication module need?
- It requires 24V DC internal power and uses 70 mA current.
