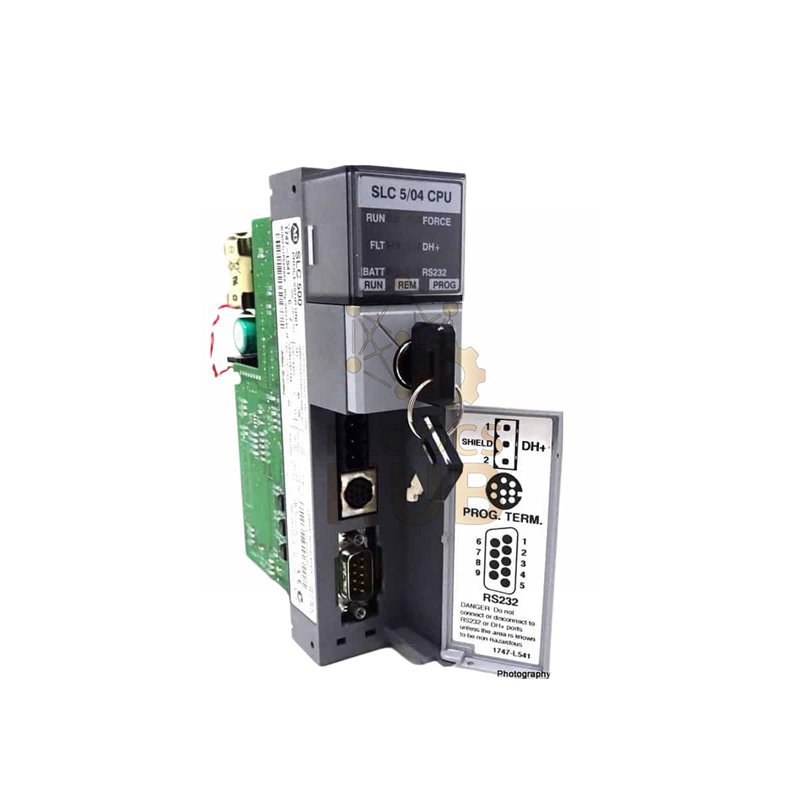

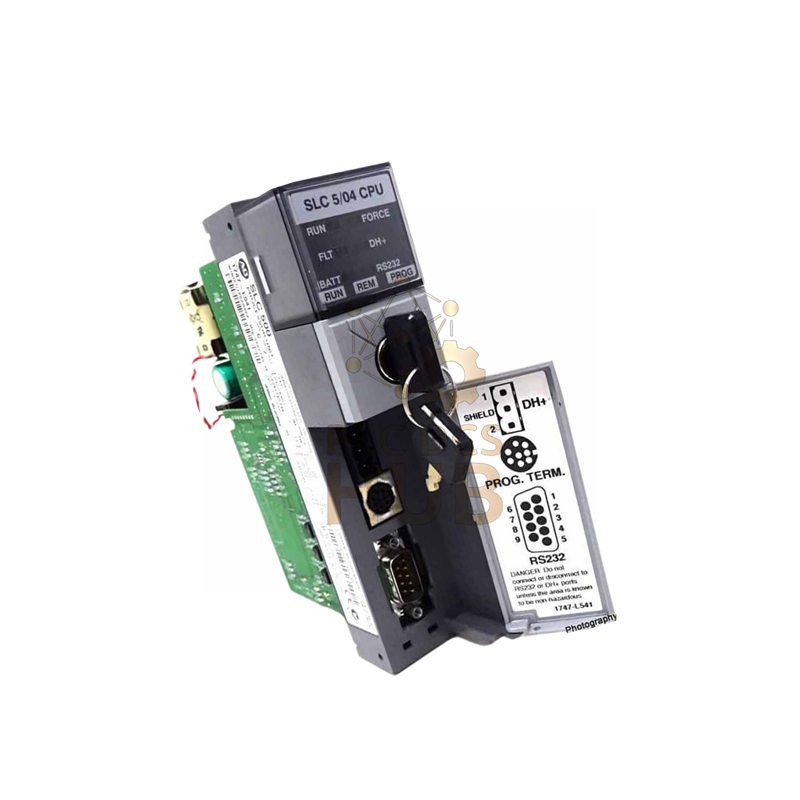

Allen Bradley 1747-L541 SLC 5/04 Controller
The Allen Bradley 1747-L541 delivers high-speed control for industrial automation. This SLC 5/04 processor features fast communication and robust performance. It handles complex tasks with ease in material handling and SCADA systems.
Key Technical Specifications
- Brand: Allen Bradley
- Series: SLC 500
- Model: 1747-L541
- Module Type: SLC 5/04 Processor
- User Memory: 16,000 Words
- Digital I/O Capacity: 4096 Inputs / 4096 Outputs
- Analog I/O Capacity: 480 points
- Program Scan Time: 0.9 ms/K
- I/O Scan Time: 0.225 milliseconds
- Communication Ports: Data Highway Plus (DH+), RS-232
- Backplane Current: 1A @ 5V DC, 200mA @ 24V DC
- Operating Temperature: 0 to 60 °C
- Battery Backup: Yes (1747-BA)
- Interrupt Response: 1ms STI, 0.5ms DII
Communication Capabilities
- DH+ port supports high-speed network communication
- RS-232 port configurable for DF1, DH485, ASCII protocols
- Extended messaging capabilities for distributed systems
- Supports remote I/O and DeviceNet pass-through functionality
Package Contents
- One 1747-L541 controller module
- Installation documentation
- Product specification guide
Shipping Information
- Global shipping via FedEx, UPS, and DHL
- Fast processing and reliable delivery services
- Tracking provided for all shipments
Download Documentation
- Complete technical manual: SLC 500 Hardware Manual
Frequently Asked Questions
- What communication protocols does the 1747-L541 support?
The controller supports Data Highway Plus and RS-232 protocols including DF1, DH485, and ASCII. - How many I/O points can this processor handle?
It controls up to 4096 digital inputs, 4096 digital outputs, and 480 analog I/O points. - What is the typical program scan time?
The 1747-L541 has a program scan time of 0.9 milliseconds per kilobyte. - Does this controller require a battery backup?
Yes, it uses the 1747-BA battery for memory protection during power loss. - What applications is this controller best suited for?
Ideal for medium-scale automation, material handling, HVAC control, and SCADA systems.
