Description
Network Bridge For Your Machines

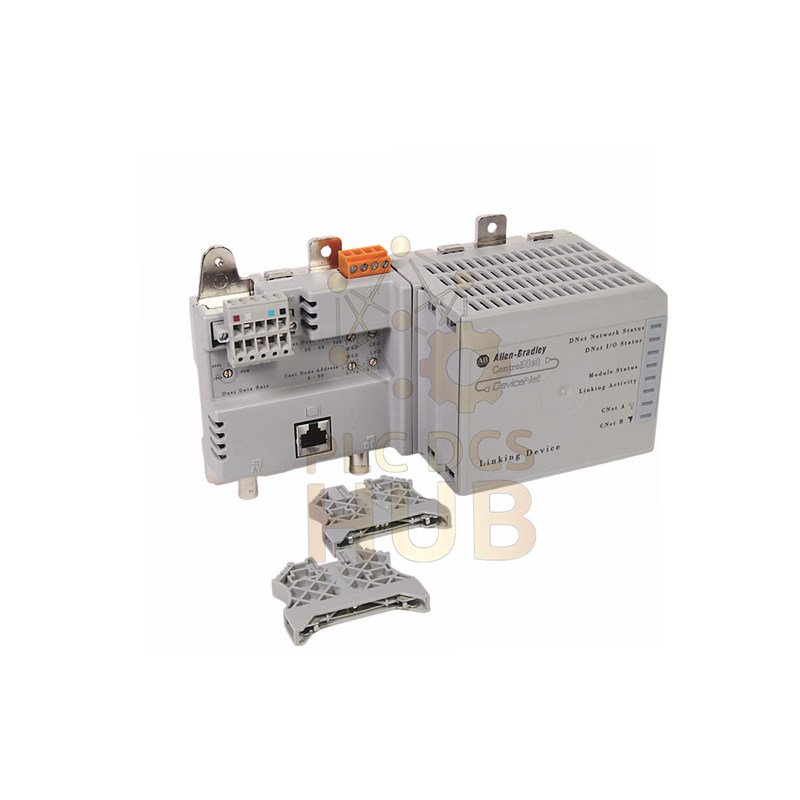

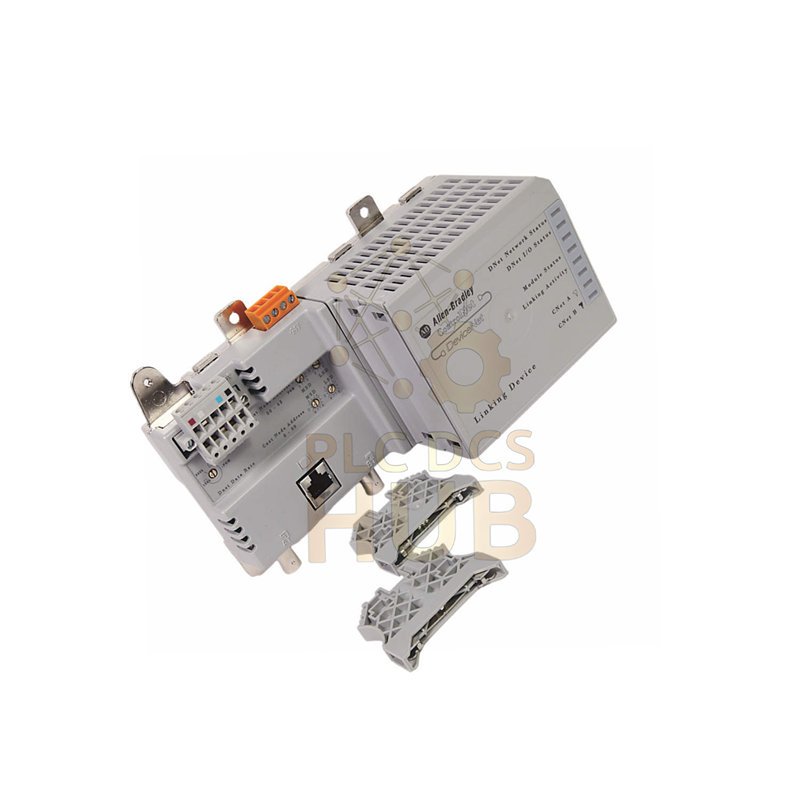

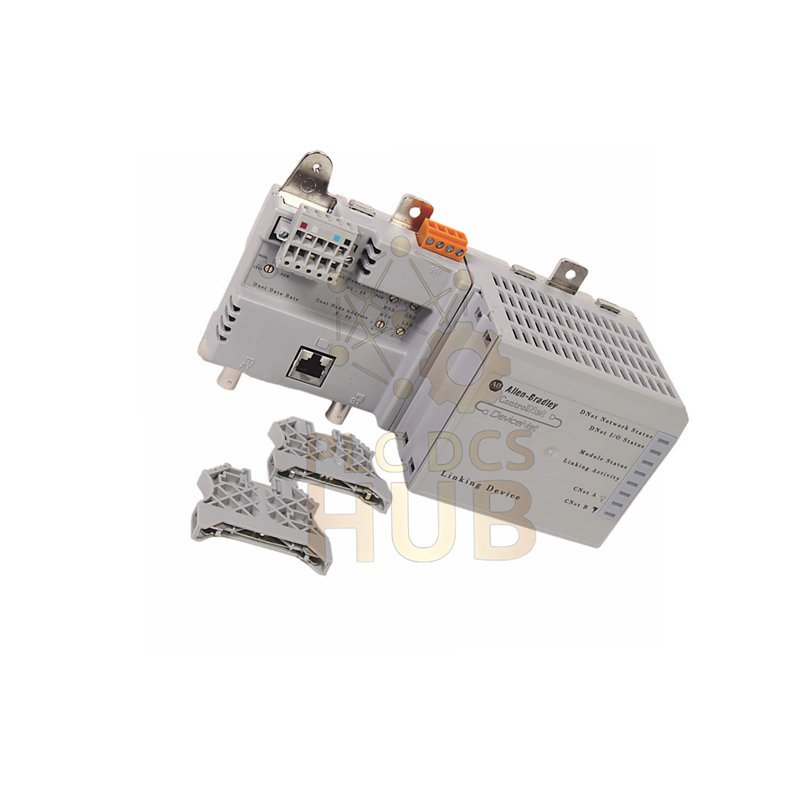

The Allen-Bradley 1788-CN2DN connects two different networks.
It links ControlNet and DeviceNet systems together.
This device allows data to flow between them.
It is essential for mixed network factories.
The 1788-CN2DN ensures smooth machine communication.
Top Product Features
- Easy Integration: Plug-and-play setup saves installation time.
- Strong & Tough: Built for harsh industrial environments.
- Safe Design: Electrical isolation protects your equipment.
- Reliable Data: Maintains stable network connections.
Complete Technical Details
- Brand & Model: Allen-Bradley 1788-CN2DN
- Device Type: ControlNet to DeviceNet Linking Device
- Input Power: 24V DC, 500 mA
- DeviceNet Power: 24V DC, 90 mA
- Isolation: 30V continuous
- ControlNet Port: Uses RG6 coaxial cable
- DeviceNet Port: Uses 20 AWG cable
- Power Terminals: Accept 22-14 AWG wire
- Operating Temp: 0°C to 60°C (32°F to 140°F)
- Protection Rating: Open-style, no enclosure
- ESD Protection: High 6-8 kV immunity
- Vibration Resistance: 2g from 10 to 500 Hz
Ordering & Support
- Includes a 12-month product warranty.
- We ship fast worldwide with FedEx, UPS, and DHL.
- The package contains the 1788-CN2DN device only.
Installation Notes
- Mount the module on a DIN rail.
- Use the correct wire sizes for connections.
- Follow proper network wiring guidelines.
- Ensure the power supply is stable 24V DC.
Expert FAQ
What is the main job of this device?
It acts as a bridge or translator between ControlNet and DeviceNet.
What power supply do I need?
You need a clean 24V DC power source for the input.
Does it have surge protection?
Yes, it has strong surge immunity on its ports.
From experience, what is a common setup error?
Using incorrect cable types for the network connections causes failures.
How do I know if I need this device?
If your system has both ControlNet and DeviceNet devices that need to talk, you need the 1788-CN2DN.
