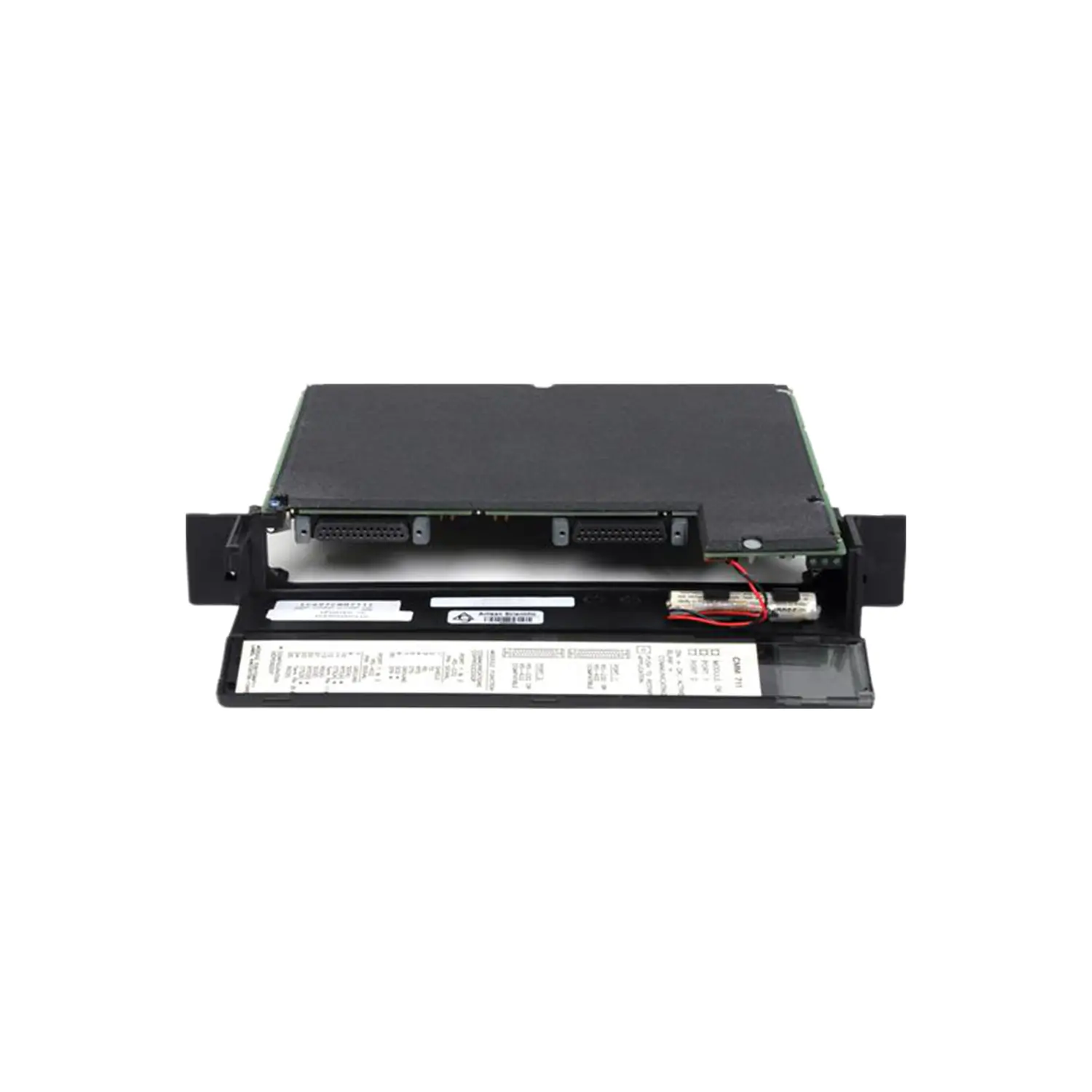

GE Fanuc IC697CMM711: Multi-Protocol Communication Module
Core Capabilities
???? Discontinued Industrial Workhorse
Drive legacy PLC systems with SNP/CCM/Modbus RTU support. Features 2 configurable serial ports and 12MHz processor.
Key Specifications
- Brand: GE Fanuc (Emerson)
- Model: IC697CMM711
- Protocols: SNP-X Master/Slave | CCM Peer | Modbus RTU Slave
- Ports: 2x RS-232/422/485 (25-pin D-sub)
- Speed: 300-19,200 baud
- Power: 700mA @5VDC
Installation Alert
⚠️ Always power off rack before installation
1. Insert into Series 90-70 baseplate
2. Configure via VersaPro/Logicmaster
3. Use pushbutton for comms reset
4. Monitor 3 LED indicators (OK/PORT1/PORT2)
Protocol Combinations
CCM/CCM | CCM/RTU | SNP/SNP | RTU/SNP
Supports multi-module setups
Industrial Applications
- Legacy power grid control systems
- Factory automation retrofits
- Water treatment plant monitoring
- Paper mill machinery comms
Compatibility Notes
Works with:
– Logicmaster 90-70
– VersaPro Professional
– Proficy Machine Edition
VME Standard C.1 compliant
Module Status
???? Discontinued but available as NOS/NIB
• No battery required
• Software-configured operation
• 80C186 microprocessor architecture
Technical FAQ
Q: Supports Modbus TCP?
A: No – RTU serial only
Q: Maximum cable length?
A: 1200m (RS485) / 15m (RS232)
Q: Replacement available?
A: Emerson migration kits suggested
