Description
Reliable Process Controller for Tough Environments

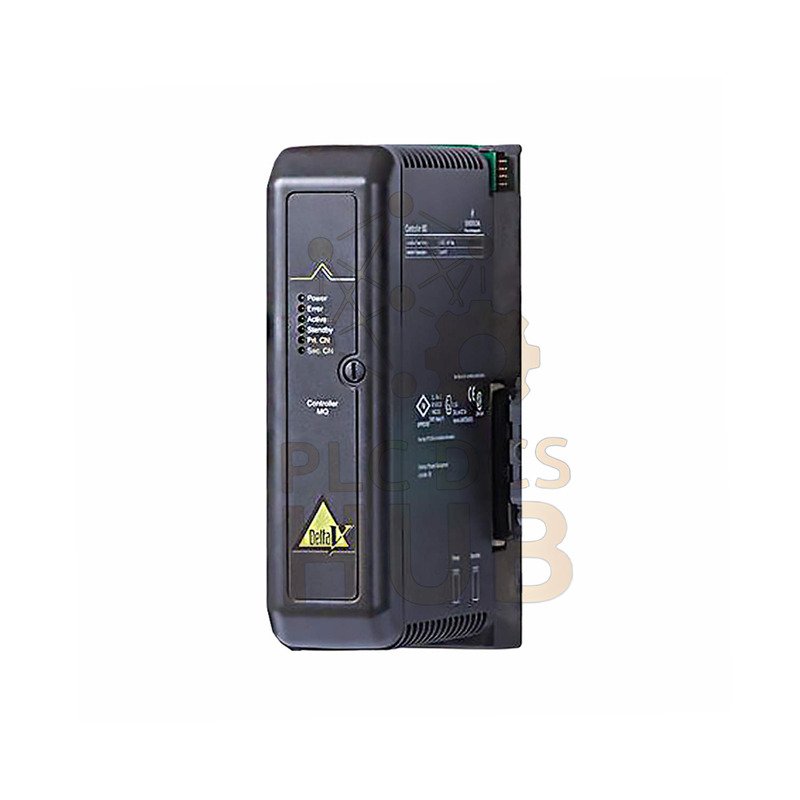

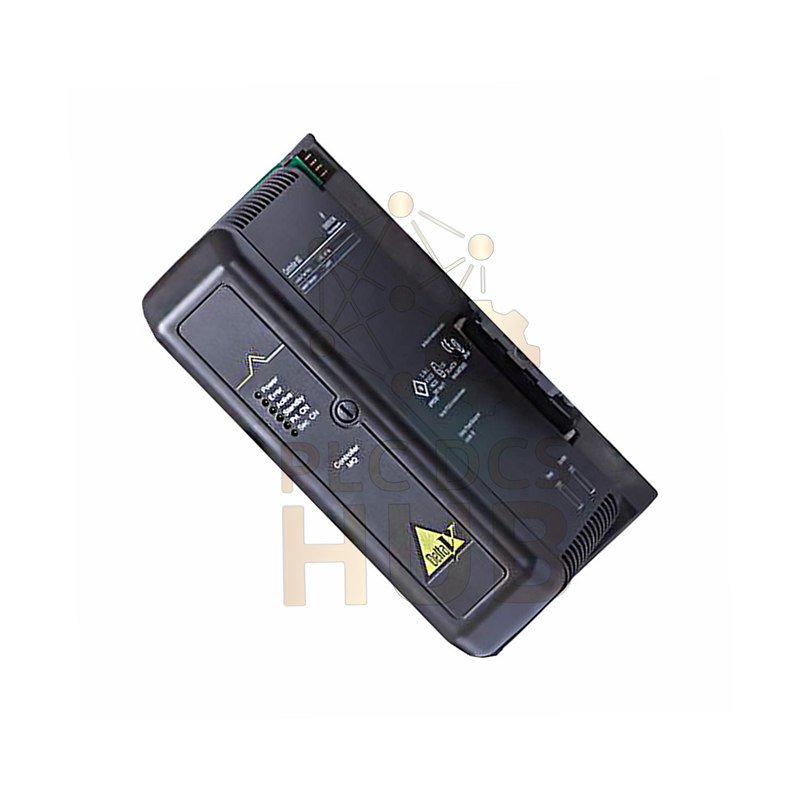

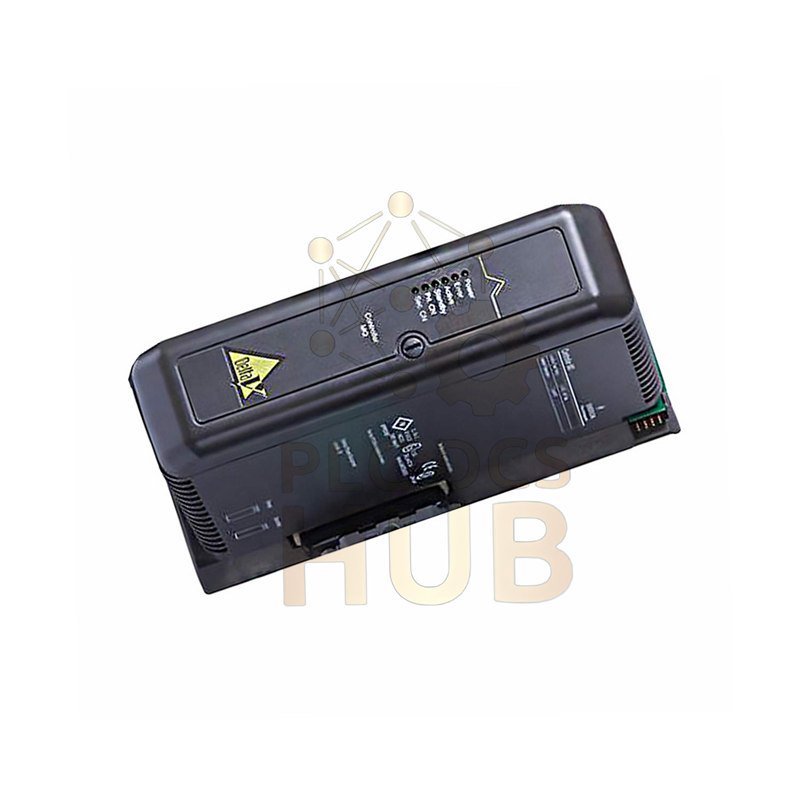

This is the Emerson VE3008 DeltaV MQ Controller. It is also called KJ2005X1-MQ1 or 12P6381X042. The VE3008 controls industrial processes. It works in very hot and cold places. This controller is strong and dependable.
Technical Specifications
- Brand & Model: Emerson VE3008 (KJ2005X1-MQ1)
- Series: DeltaV MQ Controller Series
- Memory: 48 MB user memory for programs
- Power Use: 5.0W normal, 7.0W maximum
- Power Input: From system power supply carrier
- Fuse: 3.0 A non-replaceable protection
- Network Ports: Two 8-pin RJ-45 connectors
- Operating Temp: -40°C to +70°C wide range
- Storage Temp: -40°C to +85°C safe range
- Humidity: 5% to 95% non-condensing
- Shock Rating: 10g for 11ms during operation
- Vibration: Meets strict operative limits
- Coating: Conformal coating for protection
- Warranty: 12 months quality guarantee
Key Features & Benefits
- Works in extreme temperatures from -40°C to 70°C
- Dual network ports for primary and backup connection
- Clear LED lights show power and status easily
- Strong protection against shock and vibration
- Special coating resists dust and airborne chemicals
- Low power use saves energy and cost
- Easy mounting on power/controller carrier
- Reliable performance in harsh factory conditions
LED Indicator Guide
- Green Power LED: Shows DC power is good
- Red Error LED: Warns about problems
- Green Active LED: Controller is primary
- Green Standby LED: For future backup use
- Yellow Primary CN: Network communication okay
- Yellow Secondary CN: Backup network okay
- Flashing LEDs: Used for software ping test
- Alternating LEDs: Firmware update happening
Shipping & Service
- One Emerson VE3008 controller unit
- All necessary documentation included
- Secure industrial packaging
- Fast worldwide shipping available
- Carriers: FedEx, UPS, or DHL
- Real-time tracking number provided
- 12-month product warranty
- Technical support available
Expert Questions & Answers
What is the main use of this controller?
It controls process automation in plants. It handles inputs and outputs for machines.
Can it work in outdoor installations?
Yes, its wide temperature range allows outdoor use. The coating protects against contaminants.
How do the network ports work?
One port is for primary control network. The other is for a redundant backup network.
What does the conformal coating do?
It protects circuit boards from dust and chemicals. This is for Class G3 environments.
How do I choose the right controller?
Check your temperature needs and I/O count. The VE3008 is for medium applications.
What is a common setup mistake?
Not checking the carrier slot. It must mount on the right slot for power.
