Description
Product Overview

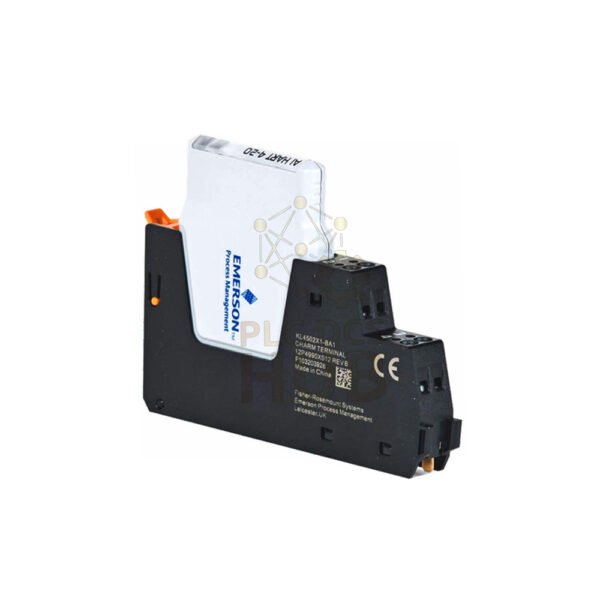

The DeltaV SE4304T01 is an Analog Output 4-20 mA HART CHARM. It provides reliable analog output signals for process control. This CHARM supports HART communication for smart device integration. It is part of the DeltaV Electronic Marshalling system. The design reduces wiring complexity and installation cost.
Key Features
- Signal types: 4-20 mA with/without HART, or 0-20 mA
- High accuracy: 0.25% of span (0–60°C), 0.5% (-40–70°C)
- 16-bit resolution: Precise analog output control
- HART v7 support: Pass-through for AMS, variable and status available
- Field power: 20 mA at 15V DC into 750 Ω load
- Protection: 24 mA current limiting and field wiring disconnect
Technical Specifications
- Brand: DeltaV (Emerson)
- Model: SE4304T01
- Series: CHARM I/O (Electronic Marshalling)
- Type: Analog Output 4-20 mA HART
- Nominal signal range: 4-20 mA (0-20 mA option)
- Full signal range: 0-24 mA
- Accuracy (0-60°C): 0.25% of span
- Accuracy (-40-70°C): 0.5% of span
- Resolution: 16-bit D/A converter
- Calibration: None required
- Field power: 20 mA at 15V DC (750 Ω load)
- Current limiting: 24 mA
- CHARM power draw: 42 mA max @ 24V DC
- CHARM heat dissipation: 0.48 W
- HART version: HART v7 pass-through for AMS
- HART update rate: Faster than 1 second (depends on loading)
System Compatibility
- Requires DeltaV v11.3.1 or later for SD Plus, SX, SQ controllers
- Requires DeltaV v14.3 or later for MD Plus, MQ, MX, PK controllers
- S-series and M-series controllers can run on same network (v11+)
- PK controllers supported on same network (v14.3+)
- Control modules can be assigned to any controller type
- Inter-controller references fully supported
Certifications & Hazardous Area Ratings
- CE: EN 61326-1 (EMC)
- FM (USA): Class I Div 2 Groups A-D T4; Class I Zone 2 AEx ec IIC T4
- cFM (Canada): Class I Div 2 Groups A-D T4; Class I Zone 2 Ex ec IIC T4
- ATEX: II 3G Ex ec IIC T4 Gc (plus variants with [ic], ic, nC)
- IEC-Ex: II 3G Ex ec IIC T4 Gc (plus variants)
- Marine: IACS E10, ABS, DNV certified
- Achilles: CIOC Level 1 (v13.3.1/v14.FP1), CIOC2 Level 2 (v14.3/v14.FP1)
HART Communication Details
- HART v7 pass-through for AMS Device Manager
- Variable and device status available to control system
- Update rates faster than every second (subject to HART loading)
- Supports smart field device configuration and diagnostics
Installation & Commissioning
- No calibration needed – plug and play
- Snap-in CHARM mounting on CHARM carrier
- Field wiring disconnect for easy maintenance
- Evaluate controller Time Utilization Chart for CHARM assignments
- Ensure +24V DC power supply meets 42 mA per CHARM requirement
Typical Applications
- Control valves positioners (4-20 mA)
- Variable frequency drives (VFD) speed control
- Actuator positioning and modulation
- Process variable output to recorders or indicators
- HART-enabled smart device control in DCS
Packing List
- 1 x DeltaV SE4304T01 Analog Output HART CHARM
- Mounting hardware not included – requires CHARM carrier
- No cables or connectors included
Warranty & Shipping
- Warranty: 12 months against manufacturing defects
- Shipping: FedEx, UPS, DHL available worldwide
- Tracking number provided within 24 hours of dispatch
Frequently Asked Questions (FAQ)
Q: What signal ranges does this CHARM support?
A: 4-20 mA (with or without HART) and 0-20 mA.
Q: Do I need to calibrate this module?
A: No. The CHARM requires no calibration.
Q: What is the maximum load for field power?
A: 750 Ω load at 15V DC supply, 20 mA.
Q: Which DeltaV controller versions support this CHARM?
A: v11.3.1+ for SD Plus/SX/SQ; v14.3+ for MD Plus/MQ/MX/PK.
Q: Is this CHARM suitable for hazardous areas?
A: Yes. It has FM, ATEX, and IEC-Ex Class I Div 2 / Zone 2 approvals.
Experience-Based Q&A
Q: We have slow HART update rates on some devices. What can we do?
A: Reduce HART device polling or use dedicated HART multiplexers for busy networks.
Q: Can we mix CHARM types on the same carrier?
A: Yes. CHARM carriers support mixed I/O types including AI, AO, DI, DO.
Selection Guide
- Choose SE4304T01 for 4-20 mA analog output with HART capability
- Select 0-20 mA option if your device requires that range
- Verify controller compatibility with your DeltaV software version
- Check controller Time Utilization before assigning multiple CHARMs
- Account for 42 mA power draw per CHARM at 24V DC
- For non-HART applications, this CHARM still works as standard AO
