Description

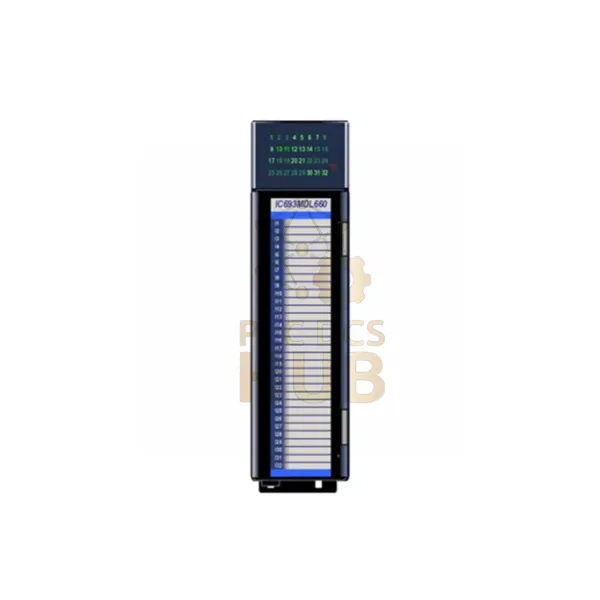

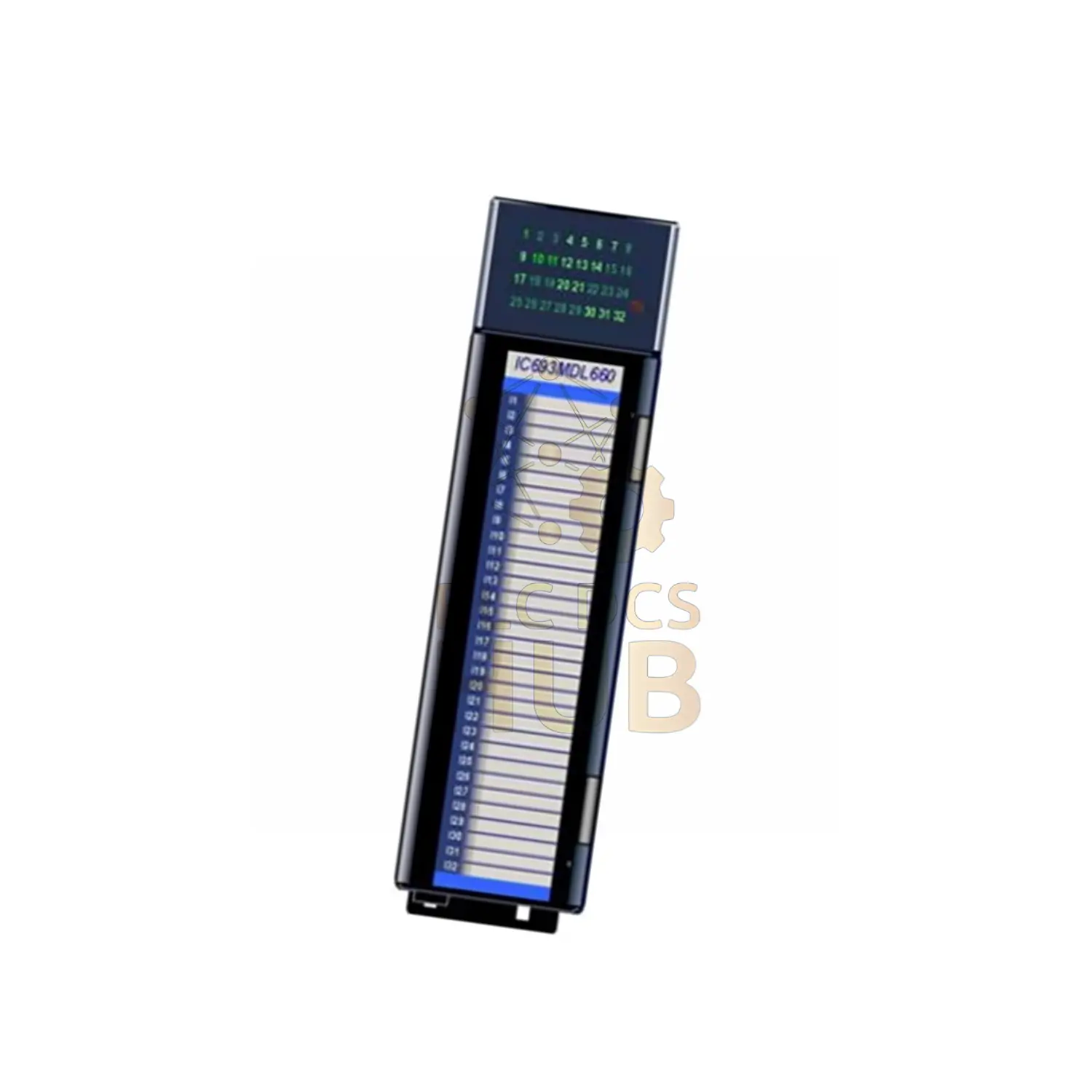

GE Fanuc IC693MDL660 32-Channel DC Input Module
High-density discrete input solution for Series 90-30 PLC systems. Handles 32 signals with ultra-fast 2ms response. Perfect for industrial automation requiring reliable data acquisition in harsh environments. Features 1500VAC isolation and wide voltage tolerance.
Technical Specifications
- Brand: GE Fanuc (Now Emerson Automation)
- Model: IC693MDL660 (Full Suffix: IC693MDL660-AA)
- Input Type: 32-channel sinking DC
- Voltage Range: 0-30VDC (On-state: 15-30VDC)
- Nominal Voltage: 24VDC
- Current Draw: 7mA/channel (5V rail)
- Response Time: <2ms
- Isolation: 1500VAC group-to-group
- Operating Temp: -20°C to 60°C
- Dimensions: 40 x 120 x 80 mm
Compatibility & Installation
- Works with all Series 90-30 PLC racks
- Group wiring: 8 inputs per group (4 groups total)
- 2 common terminals per input group
- Hot-swappable in compatible backplanes
Packaging & Shipping
- New module in factory packaging
- Basic installation guide
- 12-month warranty
- Global shipping: FedEx, UPS, DHL
FAQ
- Q: Minimum on-state voltage?
A: 15VDC required for valid input - Q: Power consumption?
A: Only 5mA from 5VDC backplane - Q: Supported PLC systems?
A: All GE Series 90-30 models - Q: Input grouping configuration?
A: 4 isolated groups (8 inputs each)
