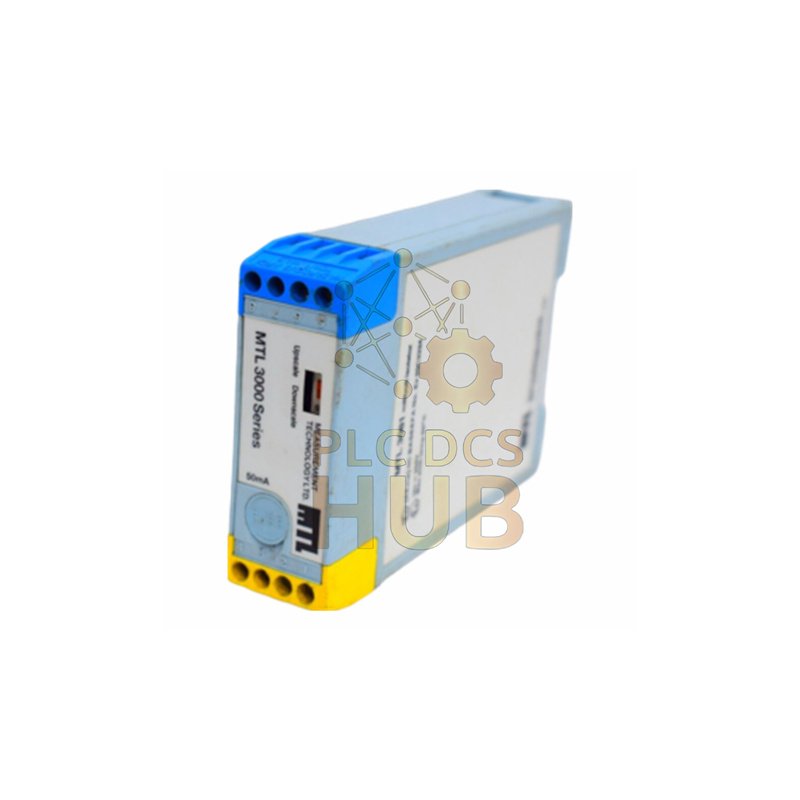

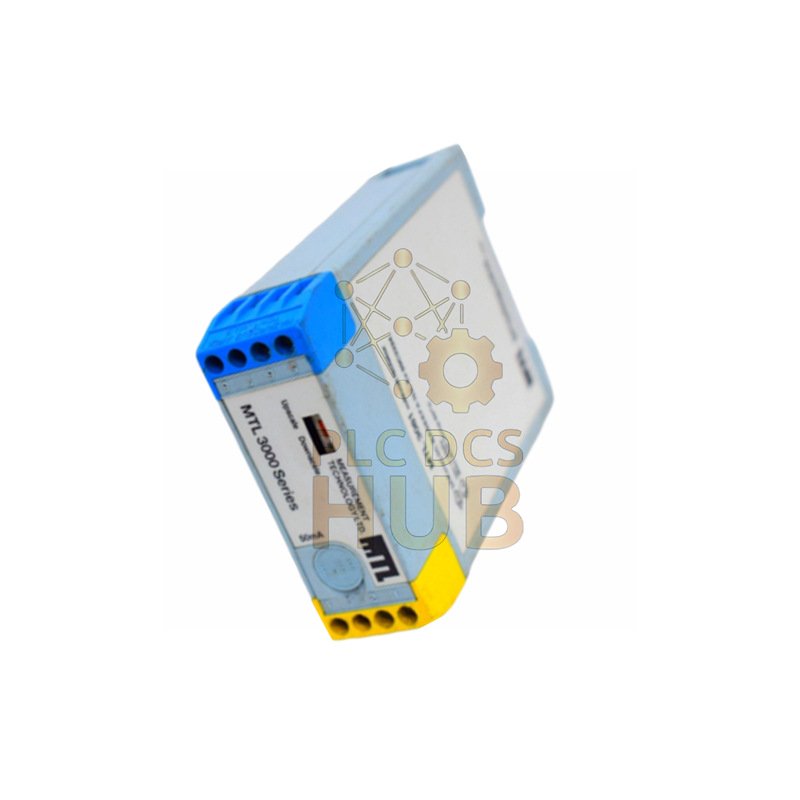

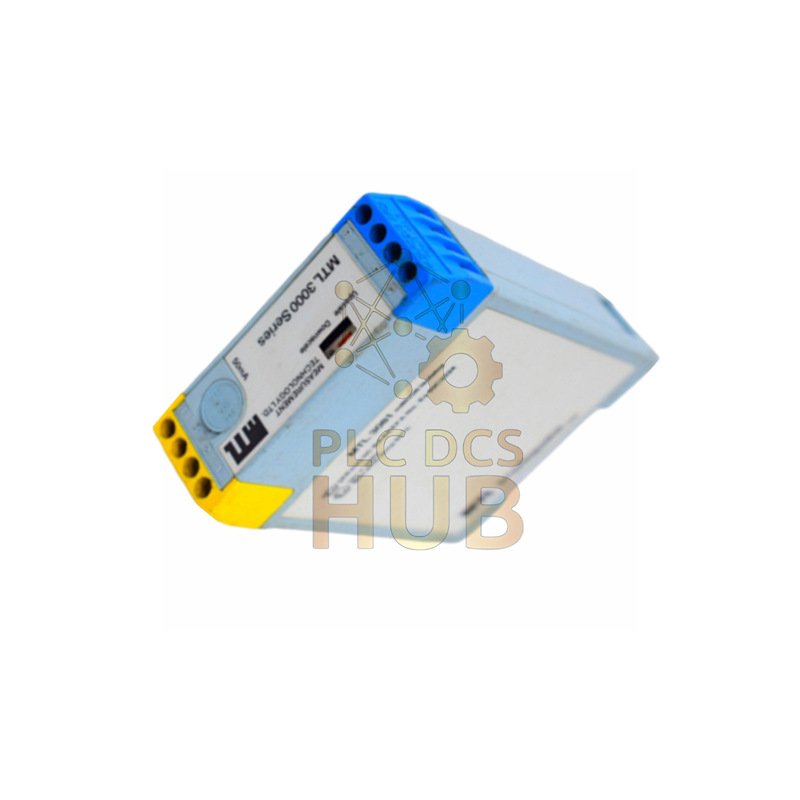

MTL3081 Signal Isolator: Simple mV & Thermocouple Interface
The MTL3081 safely transfers small DC signals from hazardous areas. It takes readings from thermocouples or millivolt sources and passes an isolated signal to your safe-area equipment. It is very easy to use with no complex setup needed.
Technical Specifications
Brand & Model: MTL MTL3081 Signal Isolator
Input Signal: 0 to ±50mV (from thermocouples or mV sources)
Output Signal: 0 to ±50mV
Accuracy: 0.05% of reading
Response Time: ~50ms
Output Impedance: ≤250Ω
Power Supply: 20-35V DC
Power Consumption: <10mA
Hazardous Location Rating: Zone 0, IIC, T4 / Div 1, Group A
Operating Temperature: -20°C to +60°C
Storage Temperature: -40°C to +85°C
Easy Installation
Just connect your sensor wires and power. Use the switch on top to set the safety drive direction. The MTL3081 is ready to work immediately.
Frequently Asked Questions
- Q1: Do I need to calibrate this unit?
A1: No. Its wide input range means it works with common sensors without any calibration. - Q2: What does the ‘safety drive’ do?
A2: If your thermocouple breaks, it can automatically set the output high or low to alert your control system. - Q3: Can I use it with a pressure transmitter?
A3: Yes, if the transmitter provides a millivolt (mV) output signal. - Q4: How is this different from the MTL3073?
A4: The MTL3081 outputs a mV signal. The MTL3073 converts the sensor signal to a 4-20mA output. - Q5: Is external software needed?
A5: No. All settings are made using simple switches and links on the unit itself.
Shipping & Package
Includes one MTL3081 unit. Shipped quickly worldwide via FedEx, UPS, and DHL.
Your Guarantee
We guarantee quality. This product comes with a 12-month warranty.
