Emerson DeltaV KJ2221X1-EA1 SISNet Repeater Carrier | 3×16 Connectors

Description

Product Overview

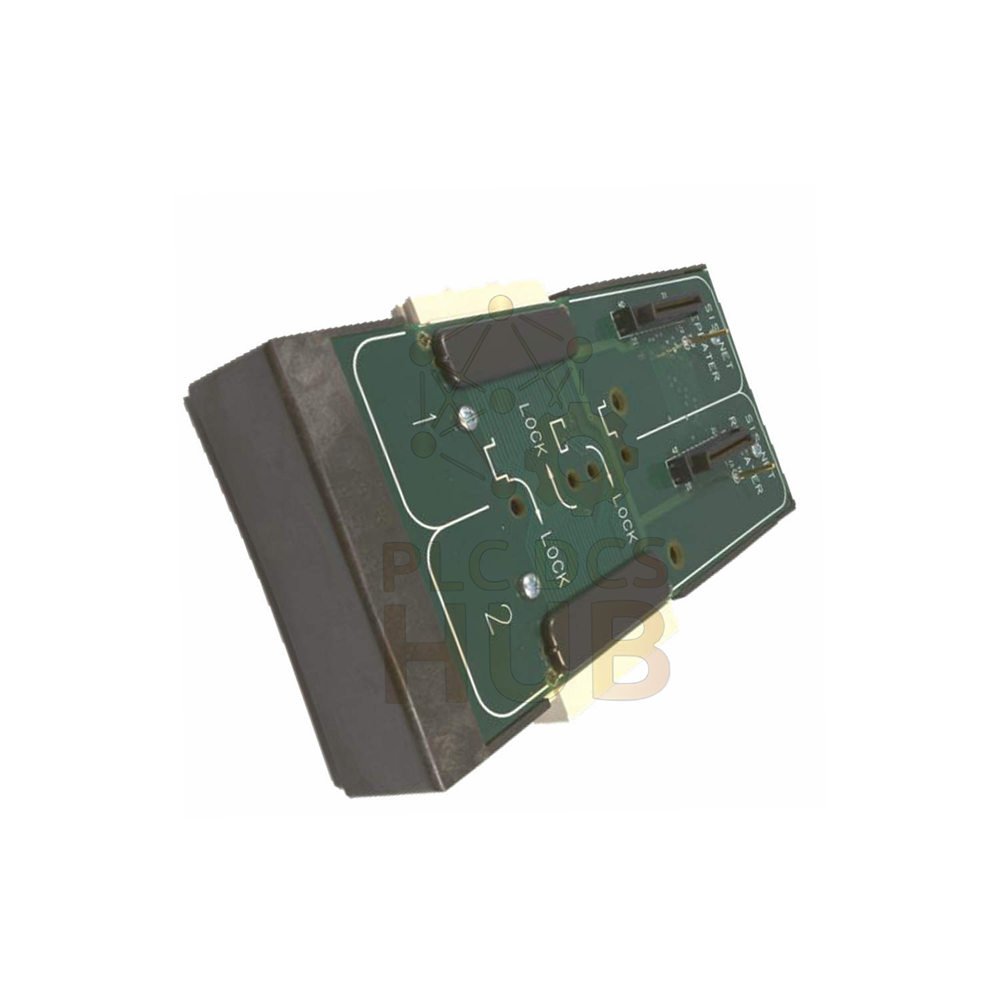

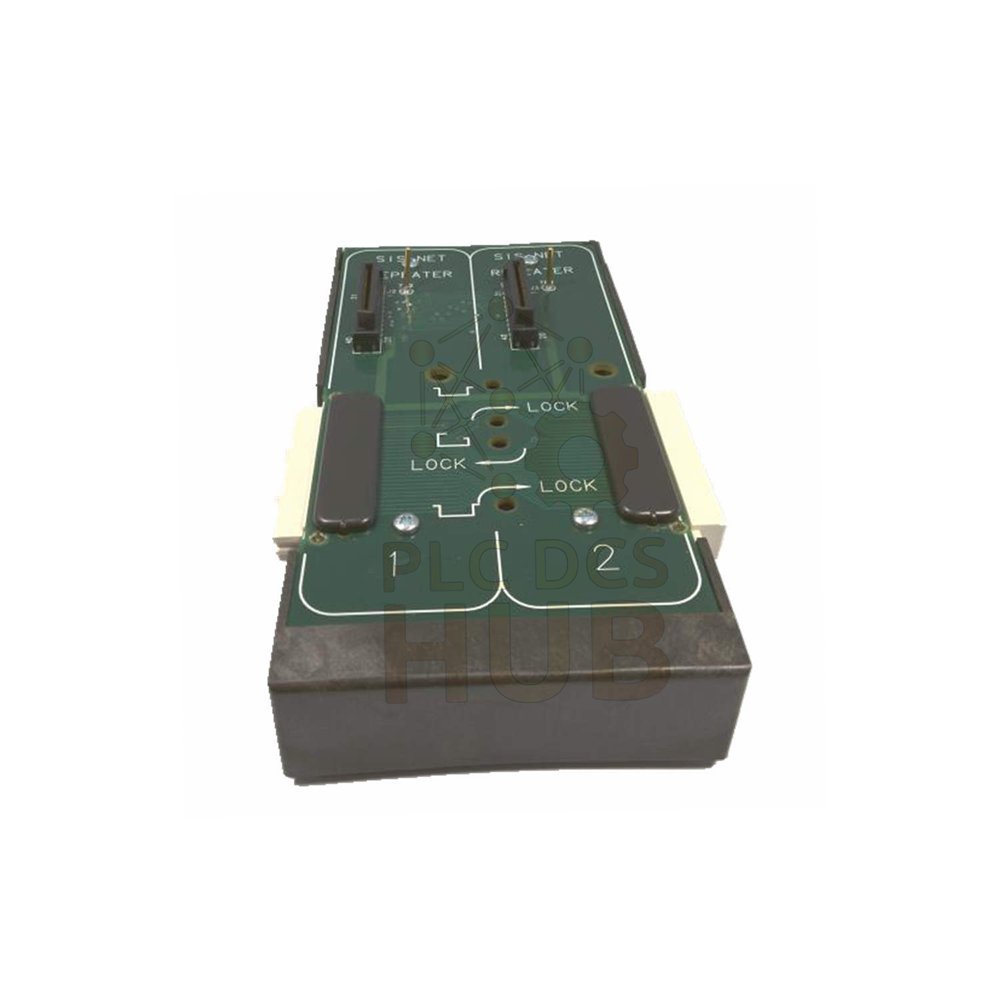

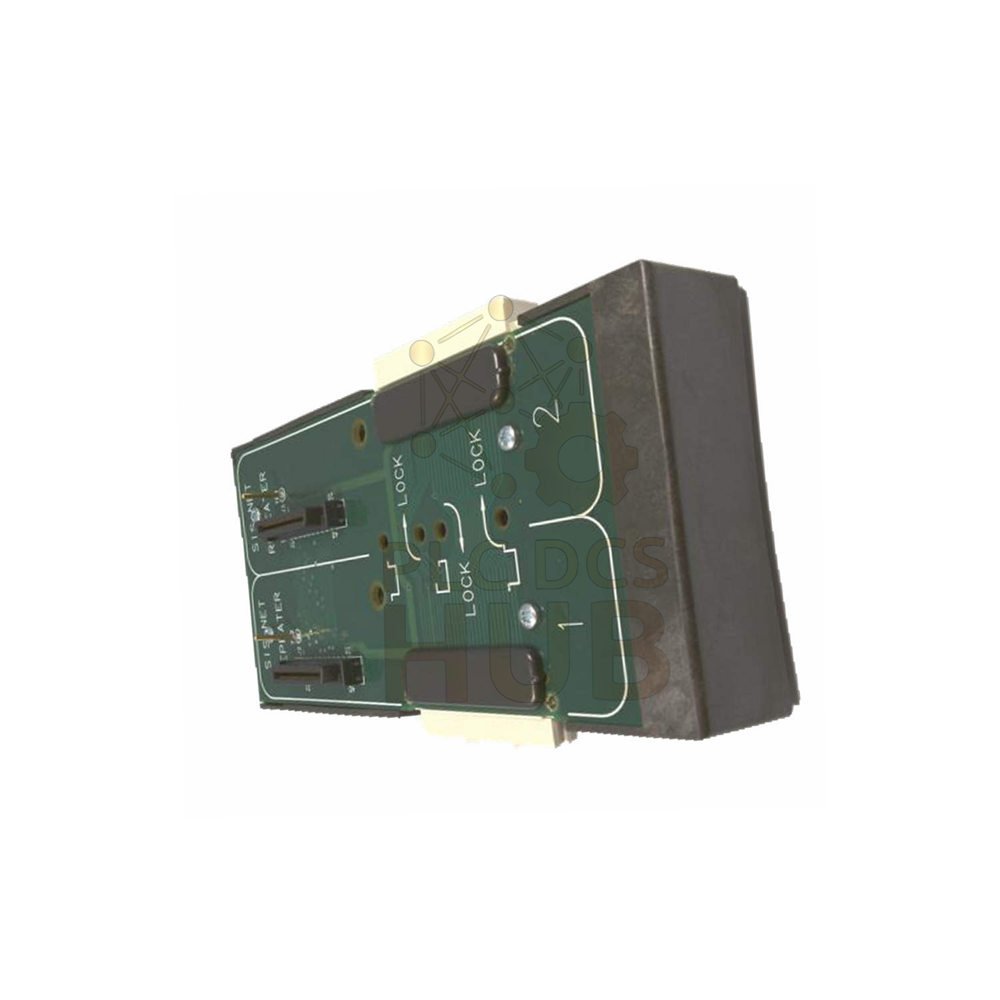

Emerson DeltaV KJ2221X1-EA1 is a SISNet Repeater Carrier for safety networks. Specifically, this device extends the distance of your DeltaV SISNet communication. Therefore, you can connect more safety devices across larger facilities.

This carrier features both 3×16 female connector and 3×16 male connector. Consequently, it provides flexible connection options for your SISNet backbone. The repeater boosts signals to maintain reliable safety data transmission.

For example, use this repeater when your SISNet cable runs exceed maximum length. As a result, you can build larger safety instrumented systems without signal loss.

Key Features

• Extends SISNet communication distance
• Includes both 3×16 male and female connectors
• Supports DeltaV safety network backbone
• Maintains signal integrity over long distances
• Plug-and-play installation for quick setup

Technical Specifications

Basic Identification

• Brand: Emerson
• Model: KJ2221X1-EA1
• Product Family: DeltaV SISNet Repeater Carrier
• Part Type: Repeater Carrier for Safety Network

Connector Specifications

• Connector 1: 3×16 female connector
• Connector 2: 3×16 male connector
• Connector Type: Industrial grade for SISNet backbone
• Application: Extends SISNet communication

Network Compatibility

• Compatible System: Emerson DeltaV SISNet
• Function: Signal repeating and carrier function
• Network Type: Safety Instrumented System (SIS) network

Electrical Data

• Power Supply: Provided by SISNet backbone
• Signal Type: Digital safety communication
• Isolation: Built-in for network segments

Physical Specifications

• Form Factor: Carrier module for DeltaV rack
• Mounting: Inserts into DeltaV chassis
• Connector Position: Front accessible

Installation Guide

• First, power down the DeltaV chassis before installation.
• Then, insert the KJ2221X1-EA1 into an available slot.
• Next, connect the SISNet cable to the 3×16 male connector.
• After that, connect the next segment to the female connector.
• Finally, restore power and verify network communication.

Commissioning & Maintenance

• First, verify LED indicators show normal operation.
• Then, check SISNet communication to all connected devices.
• For maintenance, inspect connectors for damage every 6 months.
• Also, keep connectors clean and free from dust.
• Finally, no software configuration is needed for basic operation.

Compatibility

• This repeater works exclusively with Emerson DeltaV SISNet.
• Specifically, it supports all DeltaV safety controllers.
• Therefore, use it only in DeltaV safety systems.
• It is not compatible with standard DeltaV control networks.

Certifications

• Certified for use in Emerson DeltaV SIS systems
• Meets safety requirements for SISNet communication
• Factory tested for reliability
• RoHS compliant

Package Contents

• Emerson DeltaV KJ2221X1-EA1 SISNet Repeater Carrier (1 unit)
• Installation guide (printed)
• Connector dust covers
• Mounting screws (if required)

Warranty & Shipping

We offer a 12-month warranty from the shipment date. Specifically, this covers manufacturing defects only. However, normal wear and misuse are not included.

We ship worldwide via FedEx, UPS, and DHL. Therefore, express delivery takes 3 to 7 business days. Furthermore, we provide tracking numbers within 24 hours.

Typical Applications

• Extending SISNet distance between DeltaV chassis
• Connecting safety controllers across large facilities
• Building redundant SISNet backbone networks
• Linking multiple safety system cabinets
• Expanding existing DeltaV safety installations

Diagnostic Capabilities

• LED indicators show power and communication status
• Automatic signal regeneration for weak signals
• Built-in fault detection for cable issues
• Remote diagnostics via DeltaV workstation

Frequently Asked Questions (FAQ)

1. Why do I need a SISNet repeater carrier?

SISNet has maximum cable length limits. Therefore, when your safety devices are far apart, signals become weak. The repeater boosts signals so you can reach farther distances.

2. How many repeaters can I use in one SISNet network?

You can use up to 4 repeaters in a single SISNet segment. However, each repeater adds some delay. Therefore, plan your network carefully for time-critical safety functions.

3. Does this repeater require configuration software?

No, the KJ2221X1-EA1 works automatically after installation. Just plug it in and it starts repeating signals. The DeltaV system detects it without any setup.

4. Can I use this repeater with standard DeltaV networks?

No, this repeater works only with SISNet safety networks. Standard DeltaV control networks use different hardware. Therefore, do not mix them in the same system.

5. What is the maximum distance between repeaters?

The maximum cable length depends on your cable type. For standard SISNet cable, keep segments under 100 meters. For specific distances, check your DeltaV documentation.

6. How do I know if the repeater is working properly?

Look at the LED indicators on the carrier. A steady green light means normal operation. Red or blinking lights indicate problems. Also, check device communication from your DeltaV workstation.

7. Is this repeater hot-swappable?

Yes, the DeltaV system supports hot swapping for this carrier. Therefore, you can replace it without powering down the chassis. However, SISNet communication will pause briefly during replacement.

Selection Guide

• Choose KJ2221X1-EA1 when you need to extend SISNet distance between DeltaV chassis.
• Pick this model when connecting safety controllers across separate cabinets.
• Select this repeater for large facilities with distributed safety devices.
• Consider this unit when building redundant SISNet backbones.
• Avoid this repeater if all your SISNet devices are within 100 meters of each other.
• For standard DeltaV control networks, use standard DeltaV repeaters instead.

For inquiries or volume pricing, contact us at +86 158 8020 0923 (WhatsApp).
