Description
Product Overview

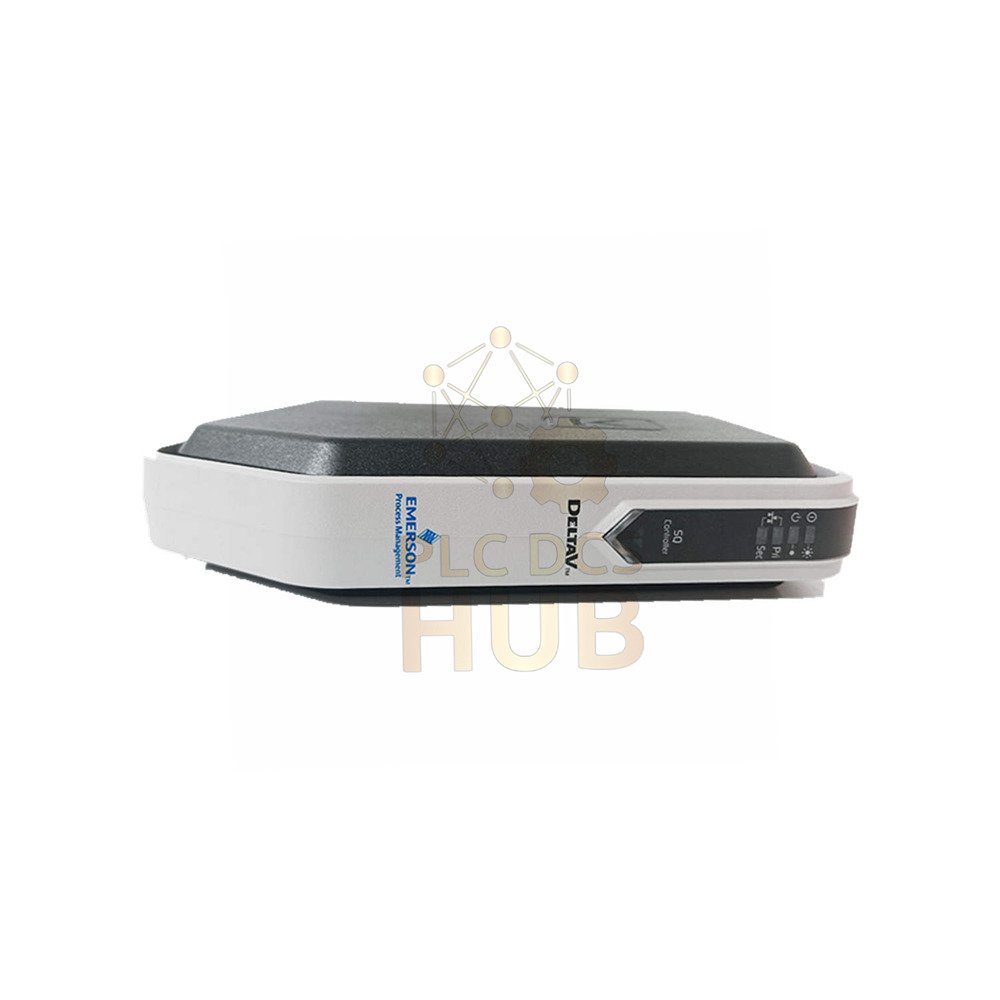

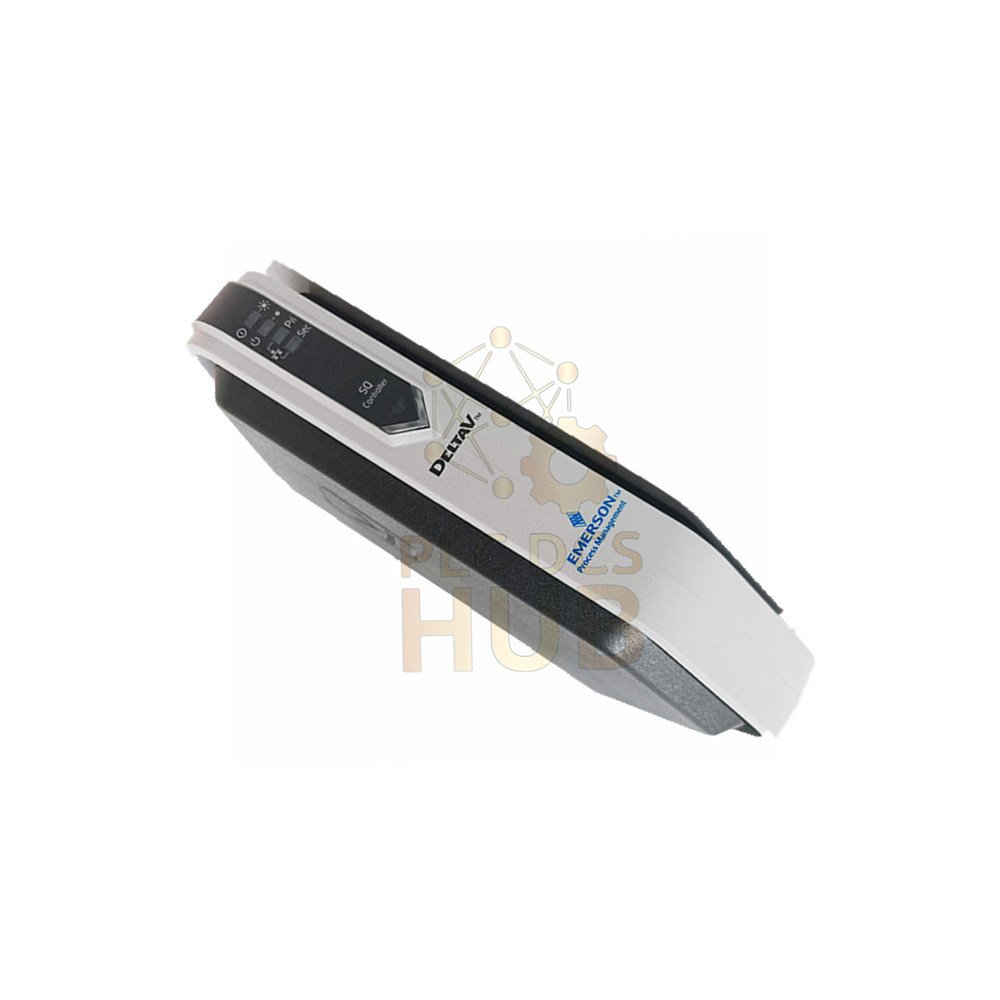

The Emerson SS6501T01 is a DeltaV SIS system with Electronic Marshalling. It uses the CHARMs Smart Logic Solver (CSLS) for safety functions. This system delivers SIL 3-capable logic solving and diagnostics. It supports up to 96 individually configurable channels per CSLS. The design reduces installation cost and simplifies lifecycle management.
Key Features & Benefits
- Optimized reliability: Redundant communications from channel to CSLS.
- Simplified safety management: Easy to maintain and update.
- Flexible I/O placement: Install I/O anywhere you need it.
- Lower installed cost: Reduced wiring and marshalling labor.
- HART integration: Built-in HART I/O for advanced field diagnostics.
- Field mountable: Hardware designed for field installation.
Package Contents
- 1 x CSLS Carrier
- 2 x CSLS (redundant pair)
- 2 x Power Modules (redundant)
- 2 x Safety Network Ports (twisted copper, single port each)
- 2 x Power Plugs
Technical Specifications – CSLS Carrier
- Brand: Emerson
- Model: SS6501T01
- Series: DeltaV SIS
- Type: CHARMs Smart Logic Solver (CSLS) Carrier
- Capacity: One (simplex) or two (redundant) CSLS + Power Modules
- Input power: +24V DC ± 10% at 12.5 A max (redundant)
- Output to LS-CHARMs: +6.3V DC at 4 A max
- Output to IS LS-CHARMs: +24V DC ± 10% at 10 A max
- Redundant Ethernet: 10/100BASE-TX, RJ45, full duplex, 100 m distance
- Mounting: Vertical T-type DIN rail
Technical Specifications – CSLS & CSLS+
- I/O channels: 96 per CSLS (individually configurable)
- CSLS per SZ Controller: 16 max
- CSLS per System: 1600 max
- I/O update rate: 50 ms
- CSLS power (simplex): +24V DC ± 10% at 325 mA
- CSLS power (redundant): +24V DC ± 10% at 575 mA (CHARMs additional)
- CSLS+ power (simplex): +24V DC ± 10% at 200 mA
- CSLS+ power (redundant): +24V DC ± 10% at 325 mA
- Power Module input: +24V DC ± 10% at 1.5 A (simplex or redundant)
- Power Module output (LS-CHARMs): +6.3V DC ± 3% at 4 A
- Heat dissipation (redundant pair): 18 W max (includes CSLS, Power Modules, SNP)
- Fuse protection: Internal non-replaceable fuse
- Network addressing: Auto-assigned during commissioning
LED Indicators
- Green – Power: DC power applied
- Red – Error: Error condition detected
- Green – Active/Standby: Shows operating mode of each CSLS
- Yellow Flashing – Pri./Sec. CN: Valid control network communication
System Compatibility & Architecture
- Redundant communications from LS-CHARMs to CSLS
- Redundant Ethernet via Safety Network Ports (SNP)
- Works with multi-core home run cables or field junction boxes
- HART I/O brings field device diagnostics into the CSLS
- Each CSLS carrier mounts one or two CSLS units
Certifications & Safety
- SIL 3 capable logic solving (IEC 61508 compliant)
- Designed for safety instrumented functions (SIF)
- Redundant power and network for high availability
- All communications are fully redundant
Typical Applications
- Emergency shutdown (ESD) systems
- Fire and gas detection systems
- Burner management systems (BMS)
- High-integrity pressure protection systems (HIPPS)
- Turbine and compressor safety control
Installation & Commissioning
- Mount on vertical T-type DIN rail
- Network addresses auto-assign during power-up
- No special tools required for installation
- Use redundant CSLS for high availability applications
Packing List
- 1 x SS6501T01 CSLS Carrier
- 2 x CSLS (redundant)
- 2 x Power Modules (redundant)
- 2 x Safety Network Ports (twisted copper)
- 2 x Power Plugs
- Mounting hardware not included – T-DIN rail required
Warranty & Shipping
- Warranty: 12 months against manufacturing defects
- Shipping: FedEx, UPS, DHL available worldwide
- Tracking provided within 24 hours of dispatch
Frequently Asked Questions (FAQ)
Q: How many I/O channels does each CSLS support?
A: 96 individually configurable channels per CSLS.
Q: Can I use this system in a SIL 2 application?
A: Yes. The system is SIL 3 capable and can be used for SIL 2 or SIL 3.
Q: What is the maximum number of CSLS per system?
A: Up to 1600 CSLS per system.
Q: Does this system support HART communication?
A: Yes. Integrated HART I/O brings field diagnostics into the CSLS.
Q: What is the I/O update rate?
A: 50 ms update rate for all channels.
Experience-Based Q&A
Q: We need to expand an existing DeltaV SIS node. Can we add more CSLS?
A: Yes. Add up to 16 CSLS per SZ Controller. Use the same redundant network.
Q: How do we handle field wiring for 96 channels?
A: Use multi-core home run cables or field junction boxes with Electronic Marshalling.
Selection Guide
- Choose SS6501T01 for a complete CSLS carrier with redundant CSLS, power modules, and network ports
- Select simplex configuration if you do not need full redundancy
- Use redundant CSLS for SIL 3 applications requiring high availability
- Ensure +24V DC ± 10% power supply with sufficient capacity (12.5 A max)
- Plan for heat dissipation – 18 W max per redundant carrier
- Use copper twisted pair Ethernet with RJ45 connectors within 100 m distance
