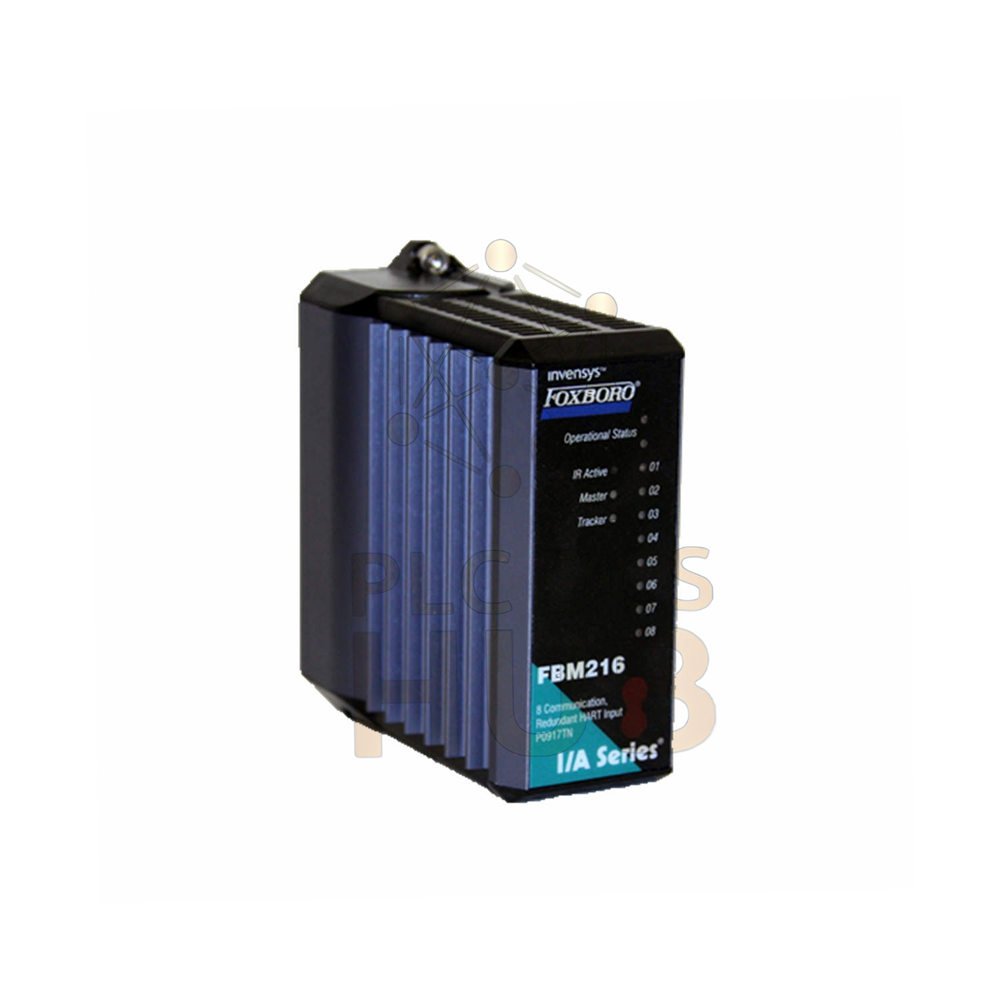

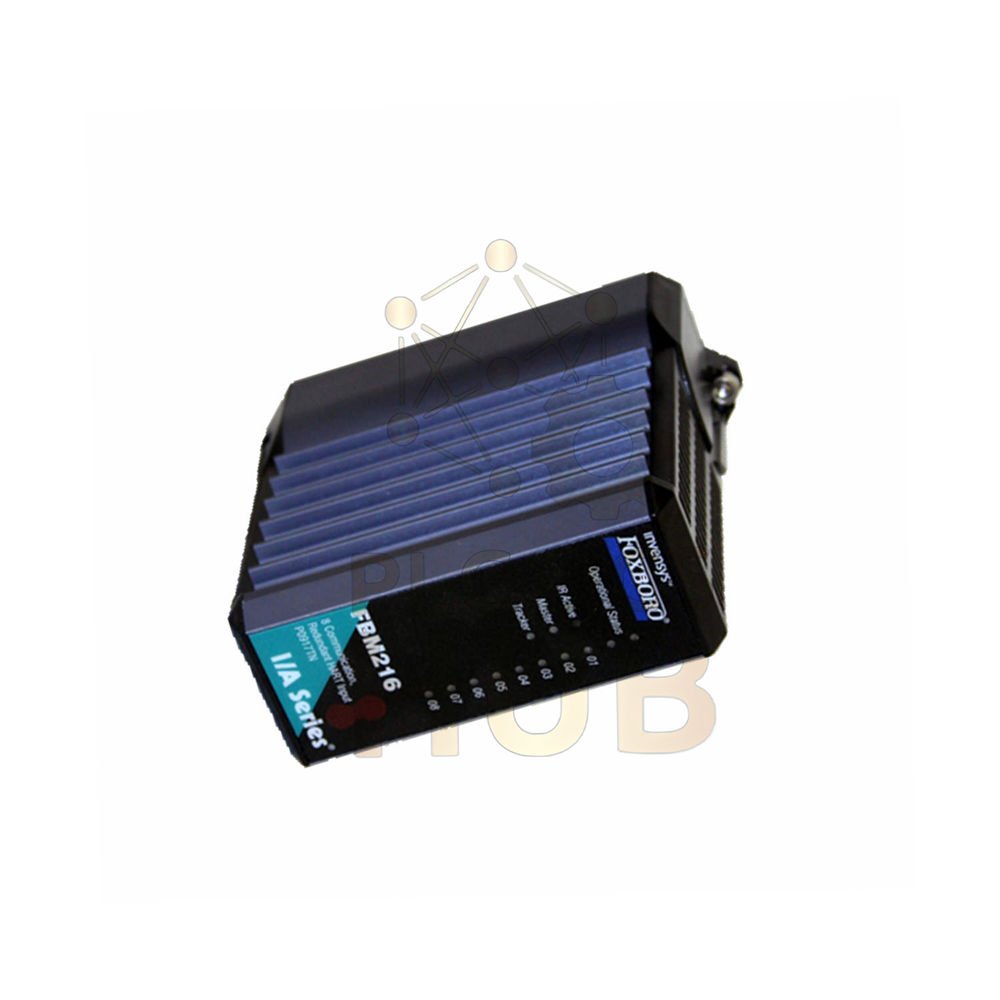

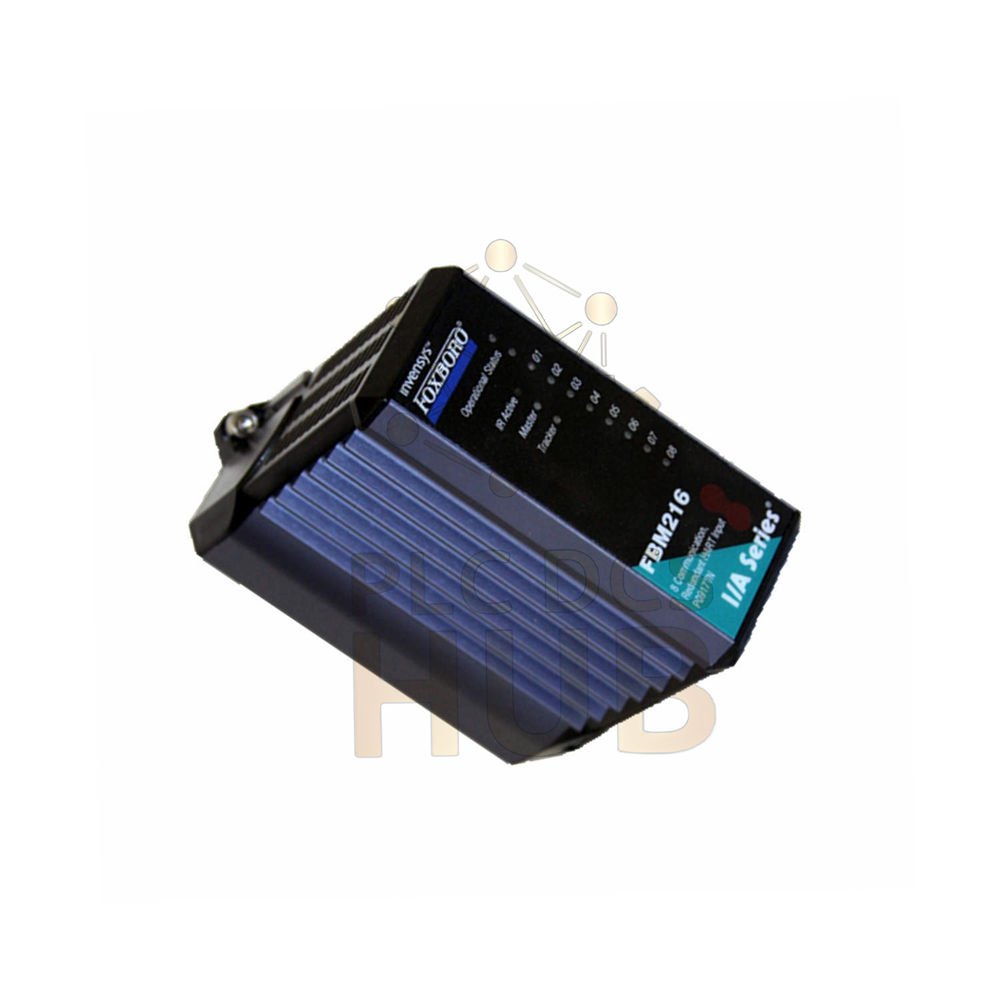

FBM216 Foxboro HART Redundant Input Interface Module I/A Series

Description

Product Overview

• FBM216 is a reliable HART input interface module.
• Developed by Foxboro for I/A Series control systems.
• Supports 8 independent input channels.
• Works with standard 4–20 mA analog loops.
• Enables communication with HART smart field devices.
• Designed for high reliability process plants.
• Redundant architecture improves system availability.
• Provides proper loop resistance for HART signals.
• Allows stable connection with intelligent transmitters.
• Ideal for modern digital process monitoring.

Key Capabilities

• Supports HART enabled transmitters.
• Communicates with handheld HART configurators.
• Compatible with intelligent device configuration tools.
• Stable signal input from field sensors.
• Designed for continuous industrial operation.
• Flexible installation with multiple mounting choices.

Signal and Interface Characteristics

• Input Signal: 4 to 20 mA analog current.
• Channel Count: 8 input loops.
• HART Support: Built-in loop resistance for communication.
• Termination Cable Length: Up to 30 meters.
• Supports reliable long distance device wiring.
• Ensures accurate signal transmission.

Mechanical Specifications

• Module Height: 102 mm.
• Height with mounting lugs: 114 mm.
• Width: 45 mm.
• Depth: 104 mm.
• Module Weight: About 284 g.

Termination Assembly Weight

• Compression Terminal: About 181 g.
• Ring Lug Terminal: About 249 g.

Installation Options

• DIN rail mounting supported.
• Compatible with 32 mm DIN rail.
• Compatible with 35 mm DIN rail.
• Horizontal mounting available.
• Can install on 19-inch equipment rack.
• Rack installation uses a dedicated mounting kit.

Expert Review

• FBM216 provides stable HART communication.
• Engineers value its simple wiring structure.
• The redundant design reduces plant downtime.
• Input loops remain stable during device changes.
• It works well in high reliability DCS systems.
• Maintenance teams like its fast module replacement.
• Ideal for plants upgrading to smart transmitters.

Compatible Devices

• HART pressure transmitters.
• Temperature transmitters.
• Flow transmitters.
• Level transmitters.
• Smart valve positioners.
• HART handheld communicators.

Typical Applications

• Oil and gas production plants.
• Petrochemical processing units.
• Power generation facilities.
• Water treatment automation.
• Pharmaceutical production lines.
• Large distributed control systems.

Diagnostics and Monitoring

• Supports HART device diagnostics.
• Allows remote device configuration.
• Helps engineers read transmitter status.
• Improves maintenance decision speed.
• Detects abnormal field signals early.

Logistics and Warranty

• Warranty: 12 months.
• Fast delivery within 24-48 hours.
• Global shipping available.
• Courier services include FedEx, UPS, and DHL.
• Professional export packaging included.

FAQ

• Can FBM216 communicate with all HART transmitters?
• Yes. It works with most standard HART field devices.

• How far can the termination cable run?
• The cable can reach up to 30 meters.

• Which installation method is best?
• DIN rail is common for cabinets. Rack mounting suits control rooms.

• How do engineers select a HART input module?
• Check channel count, control system compatibility, and HART support.

• What field experience improves signal reliability?
• Use shielded cables. Keep signal wires away from power lines.
