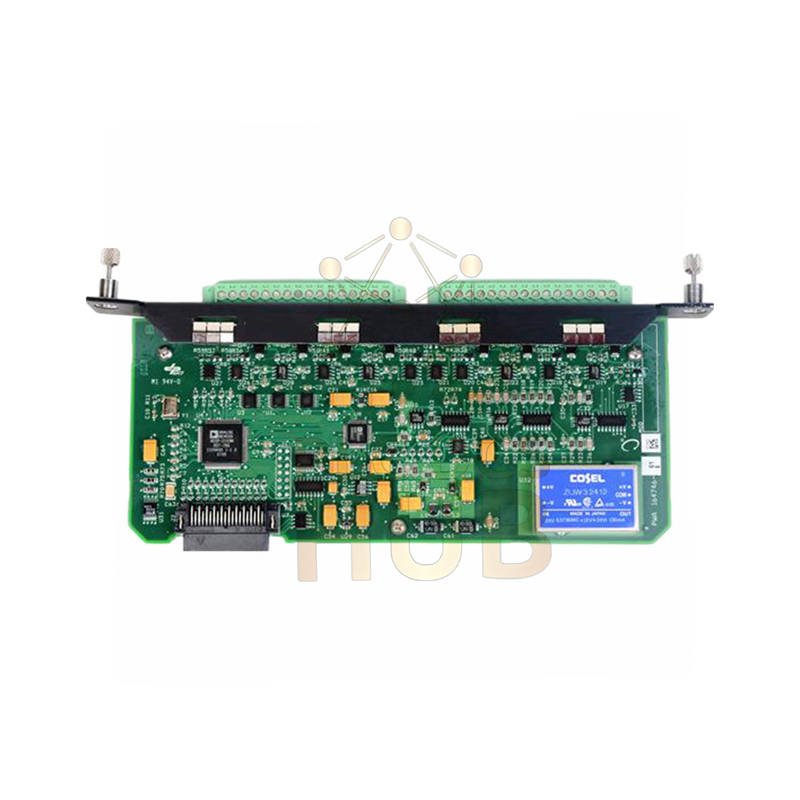

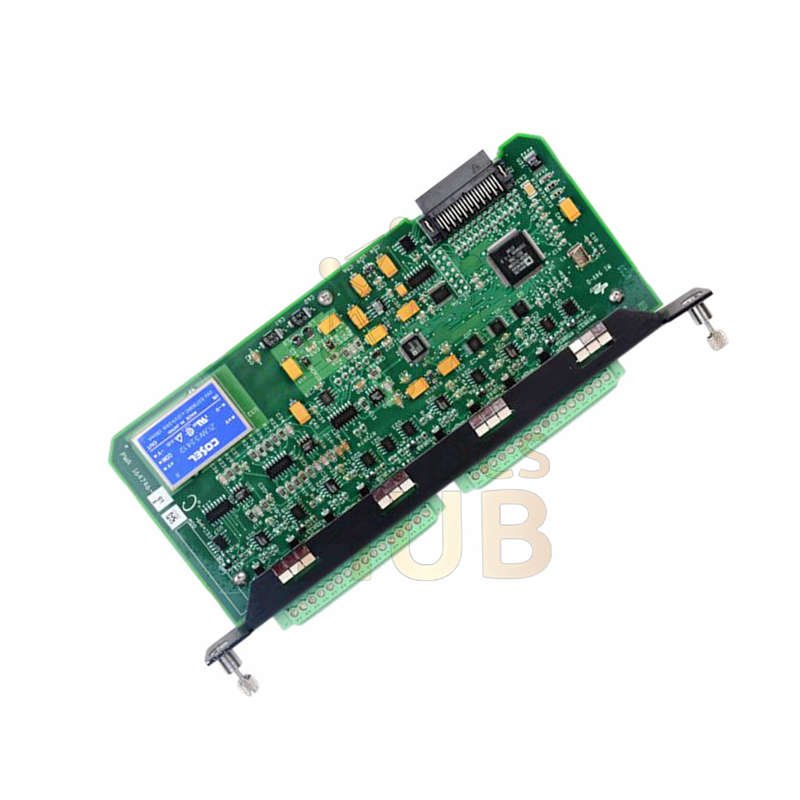

GE Bently Nevada 164746-01 Seismic Direct Input Card Monitoring Module

Description

Product Introduction

The 164746-01 is a seismic direct input card from GE Bently Nevada.
It is designed for advanced vibration monitoring.
The card connects directly to data acquisition computers.
It captures fast and accurate signals.

This module supports both real-time and background analysis.
It improves fault detection.
It helps protect critical machines.

Main Product Strengths

• Wide signal bandwidth for fast events.
• High sampling precision for clean data.
• Flexible timing modes for many studies.
• Large system scaling for complex plants.
• Direct system link without converters.

Technical Specifications

• Brand: GE / Bently Nevada
• Model: 164746-01
• Product Type: Seismic Direct Input Card
• Input Channels: Up to 8 channels
• Signal Bandwidth: DC to 24 kHz
• Sampling Resolution: 16-bit
• Maximum Sampling Rate: 65,536 samples per second per channel
• Input Voltage Range: ±10 V
• Input Impedance: 1 MΩ
• Supported DSM Count: Up to 150 modules per system
• Processing Mode: Synchronous and asynchronous
• Connection Type: Direct to acquisition computer
• Operating Temperature: 0 to 50 °C
• Maximum Power Draw: 10 W
• Signal Noise Level: Low-noise analog design
• Timing Accuracy: High stability clock source

Measurement Capabilities

• Captures low and high frequency motion.
• Supports transient event analysis.
• Maintains accuracy during fast changes.
• Improves root cause analysis.

Installation Guidelines

• Install inside supported acquisition system.
• Secure card firmly in slot.
• Use shielded signal cables.
• Verify grounding before startup.

Maintenance and Operation

• No routine calibration required.
• Monitor signals via system software.
• Replace module during planned downtime.
• Check connectors during inspections.

System Compatibility

• Works with Bently Nevada monitoring platforms.
• Supports seismic and vibration sensors.
• Integrates into large data systems.

Typical Use Cases

• Steam and gas turbines
• Compressors and pumps
• Power generation assets
• Oil and gas rotating equipment
• Critical balance-of-plant machines

Packing, Warranty, and Shipping

• 1 × 164746-01 input card
• Anti-static protective packaging
• Warranty period: 12 months
• Shipping via FedEx, UPS, or DHL

FAQ

• Is this card suitable for fast transient capture?
• Yes. The high sampling rate supports sudden vibration events.
• Can this module scale in large monitoring systems?
• Yes. It supports many modules in one system.
• Does it work with different sensor types?
• Yes. It accepts standard seismic and vibration inputs.
• How do I choose between synchronous and asynchronous modes?
• Use synchronous for comparison. Use asynchronous for independent events.
• Is this card good for long-term condition monitoring?
• Yes. It offers stable operation and low noise.
