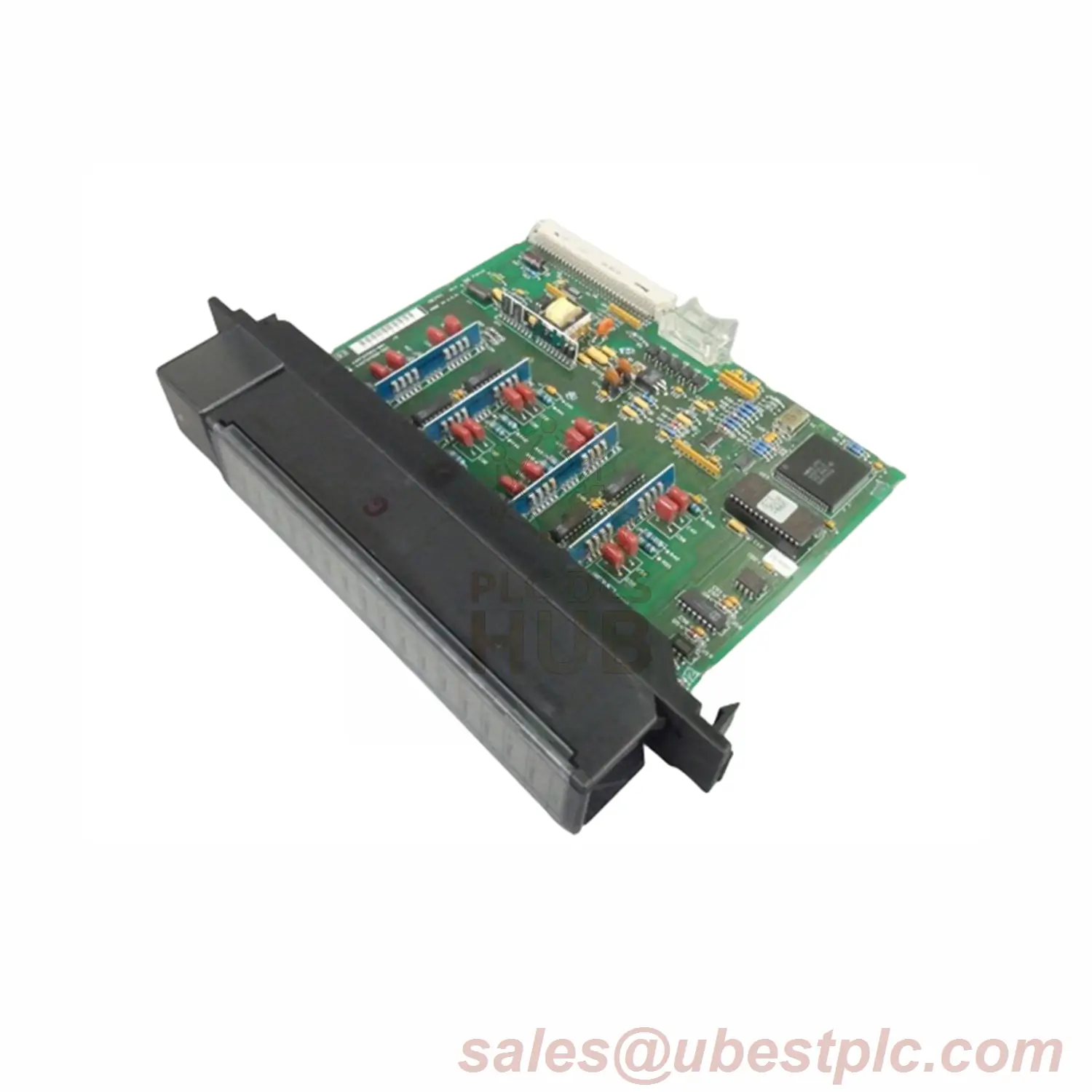

GE Fanuc IC697ALG321: Precision Analog Input Module
Core Functionality
4-channel voltage input module for industrial automation systems. Converts -10V to +10V signals to digital data with high accuracy.
Technical Specifications
| Brand: | GE Fanuc |
| Series: | Series 90-70 |
| Model: | IC697ALG321 |
| Input Range: | -10V to +10V DC |
| Resolution: | 16-bit (14-bit monotonic) |
| Conversion Speed: | 2ms per channel |
| Input Impedance: | 250Ω |
| Power Consumption: | 112mA @ 5V DC |
| Calibration Accuracy: | ±2mV at 10V |
| Filter Response: | 41Hz (single-ended) 82Hz (differential) |
Key Features
- Configurable unipolar/bipolar voltage ranges
- Programmable high/low alarm limits
- Data storage in 16-bit 2’s complement format
- Real-time operational status monitoring
- Non-volatile EEPROM configuration storage
Installation & Setup
- Mount in Series 90-70 PLC rack
- Use LogicMaster software for channel configuration
- Set voltage ranges per application requirements
- Configure alarm thresholds for process monitoring
- Verify input impedance matching (250Ω)
