Product Overview

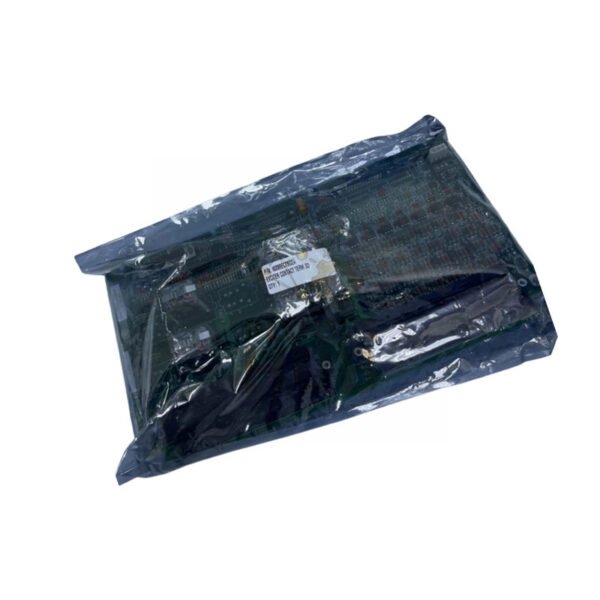

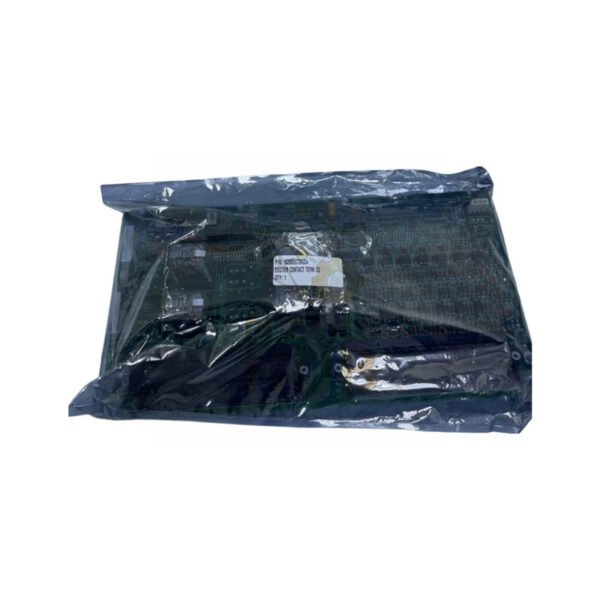

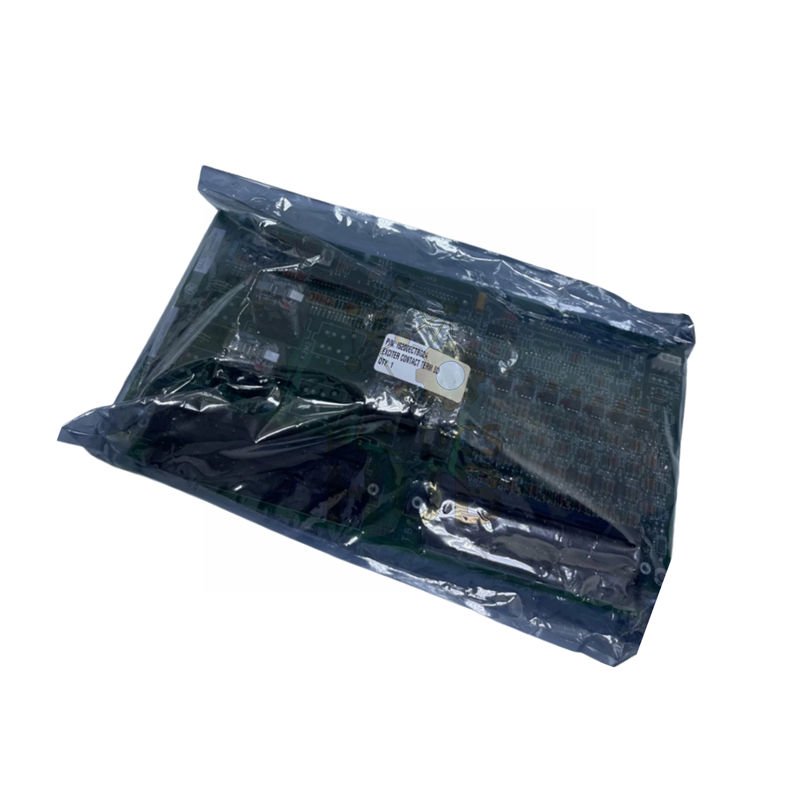

The IS200ECTBG2A is an Exciter Contact Terminal Board manufactured by General Electric for the EX2100 excitation control system. This module operates exclusively in simplex mode and handles critical contact inputs/outputs for generator excitation systems. It provides reliable relay control and monitoring with industrial-grade components.
Technical Specifications
- Brand: General Electric
- Model: IS200ECTBG2A (Full Suffix)
- Series: EX2100 Excitation Control
- Operational Mode: Simplex Only
- Relay Break Characteristic: 28V DC
- Customer Power: 125V DC
- Relay Control Voltage: 24V DC
- Wetting Voltage: 70V DC (63-84V DC range)
- Weight: 0.34 kg
- Dimensions: 150 x 76 x 90 mm
- Country of Manufacture: United States
Installation & Compatibility
This board installs in EX2100 excitation systems. It works with EMIO control boards. For simplex configuration only. Not for redundant systems. Use ECTBG1 for redundant applications. Mount securely using provided terminals. Ensure proper voltage levels before operation.
Package Includes
IS200ECTBG2A Terminal Board
Installation Manual (GEH-6632)
Hardware Components
