Description
Description:

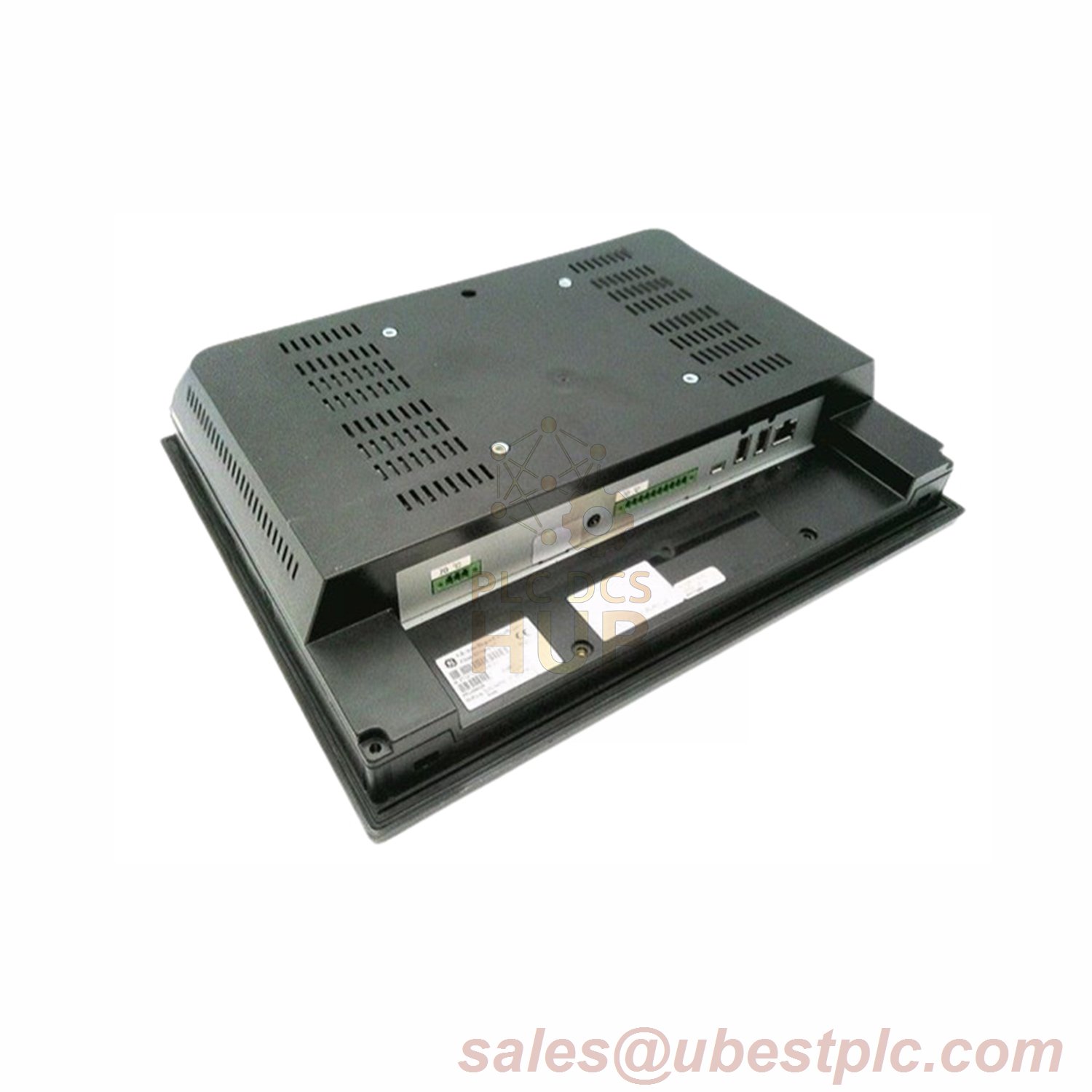

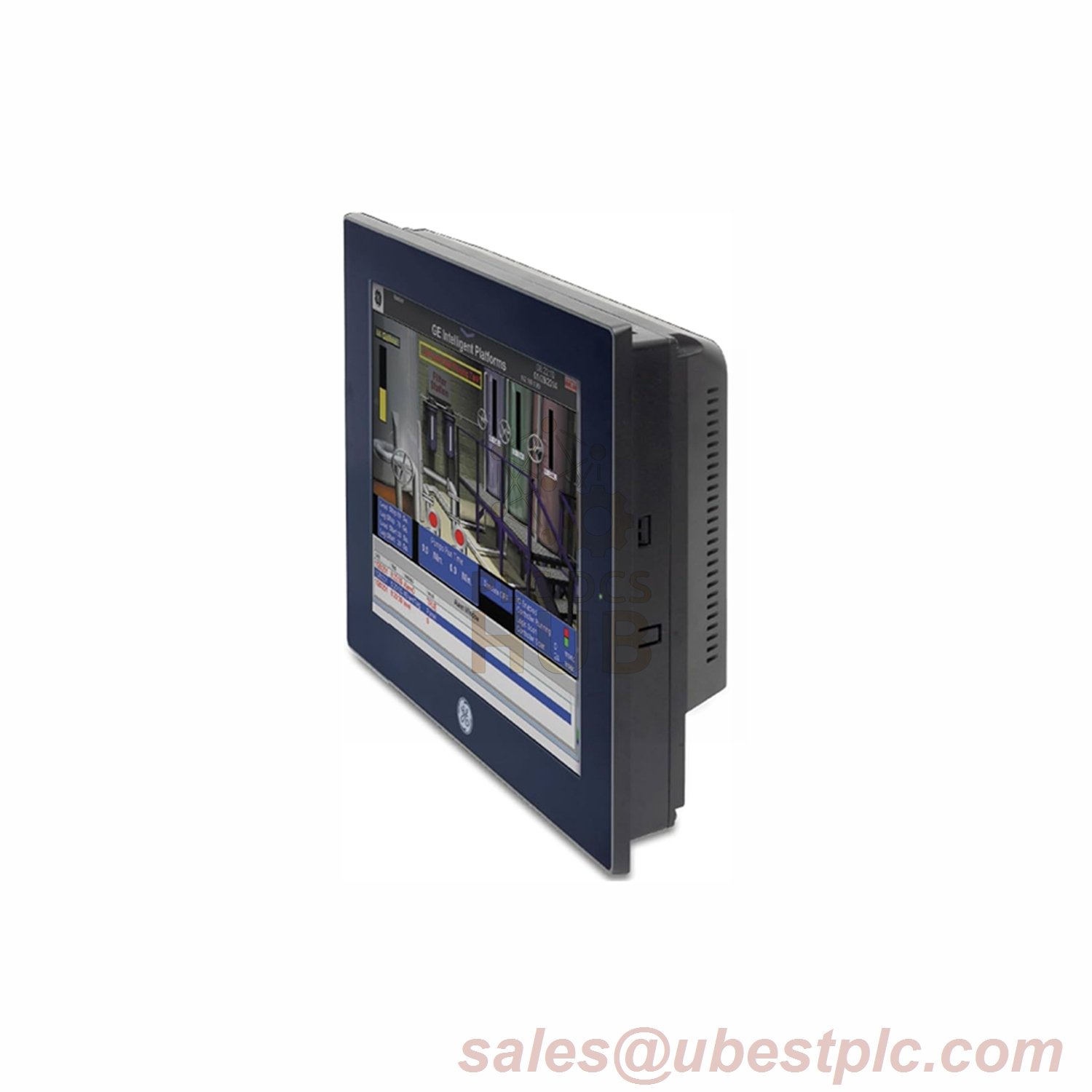

The GE Fanuc Quickpanel IC755CSS12CDA is a highly advanced 12.1-inch touchscreen HMI designed for seamless industrial applications. Built with a vibrant 800 x 600 WVGA resolution display, this device delivers sharp and clear visuals in demanding environments. The projective capacitive two-point touch screen ensures smooth and precise user interactions. Powered by a 1 GHz ARM Cortex A8 processor and equipped with robust memory options, it provides exceptional performance and reliability. The unit also supports multiple connectivity options, including Ethernet, serial ports, and USB, making it ideal for diverse industrial systems.
Technical Data:
| Specification | Details |
|---|---|
| Brand | GE Fanuc |
| Model | IC755CSS12CDA |
| Display Size & Type | 12.1-inch TFT LCD |
| Resolution | 800 x 600 pixels (WVGA) |
| Color Depth | 65,536 colors |
| Brightness | 450 cd/m² |
| Touch Screen | Projective capacitive, two-point touch |
| Operating System | Microsoft Windows Embedded Compact 7 |
| Processor | Freescale i.MX535 (1 GHz ARM Cortex A8) |
| RAM | DDR3 SDRAM, 1 GB |
| ROM | SLC NAND 512 MB |
| SRAM | 512 KB (with battery backup) |
| Ethernet Ports | 2 x 10/100BaseT (RJ-45) |
| Serial Ports | 1 x RS-232 UART, 1 x RS-232/485 |
| USB Ports | 2 x USB 2.0 (Type-A, Host), 1 x USB 2.0 (Mini Type-B) |
| Storage | 1 x SD/SDHC card slot |
