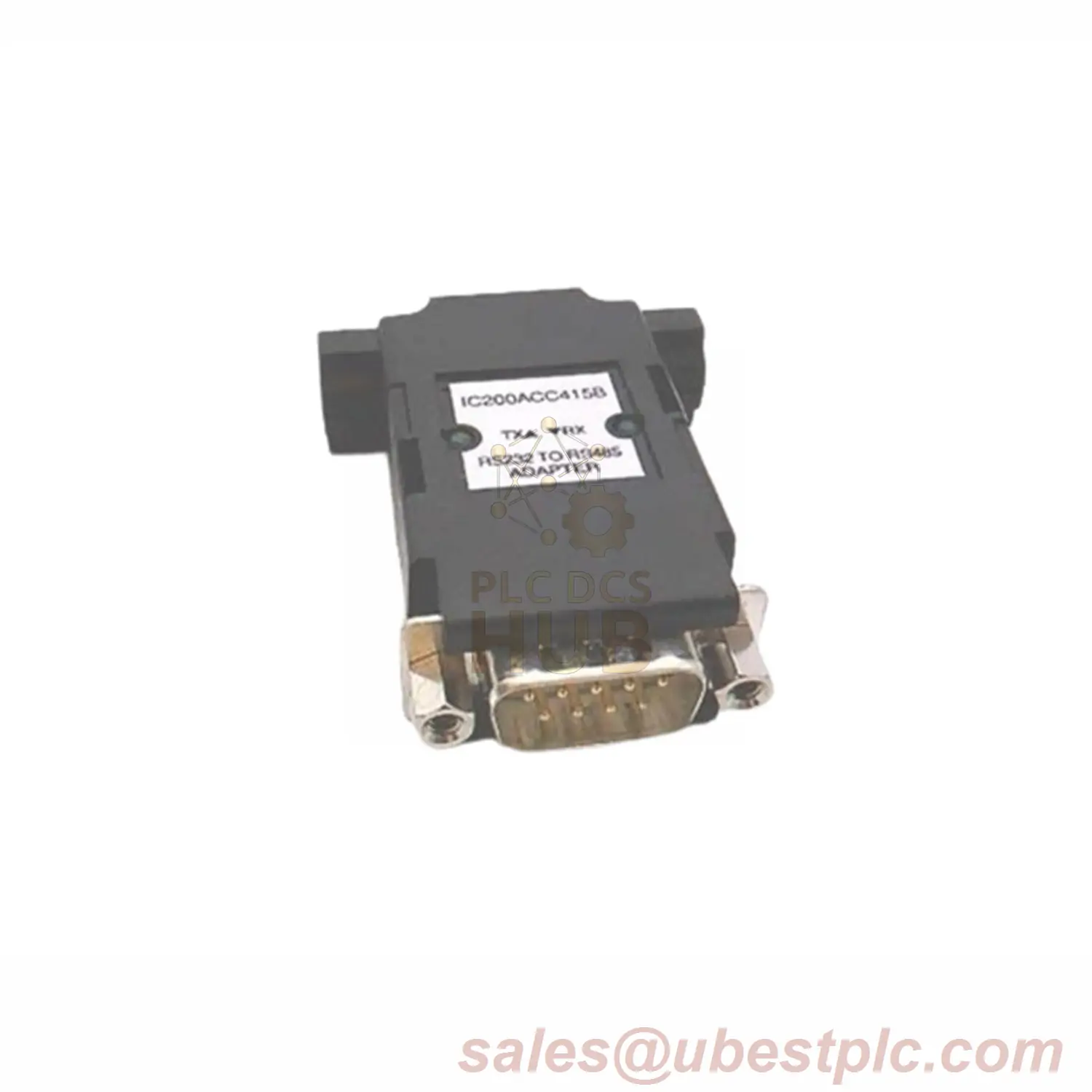

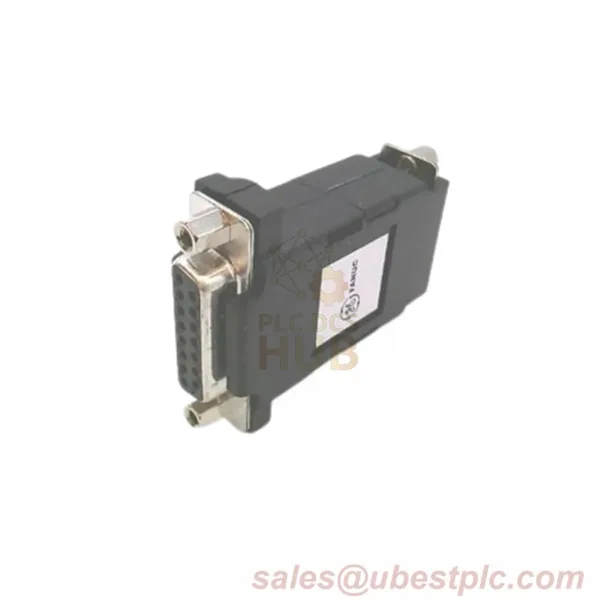

GE Fanuc | IC200ACC415 RS-232 to RS-485 Converter

Description

IC200ACC415: RS-232 to RS-485 Converter for VersaMax PLCs

GE-Emerson’s IC200ACC415 seamlessly bridges RS-232 and RS-485 networks for VersaMax Nano/Micro PLCs. Features dual LED indicators, DIN/panel mounting, and requires no external power. Enables multi-drop communications up to 115.2 kbps in harsh industrial environments.

Technical Specifications

• Brand: GE-Emerson
• Model: IC200ACC415
• Converter Type: RS-232 to RS-485
• Compatibility: VersaMax Nano/Micro PLCs
• Data Rate: 115.2 kbps max
• Connectors:
  9-pin D-sub male (RS-232) →
  15-pin D-sub female (RS-485)
• Temperature Range: -40°C to +85°C
• Power Source: PLC-powered (no external supply)
• Dimensions: 80x60x20mm (0.09kg)
• Compliance: CE, RoHS certified

Key Features

• Real-time monitoring: TX/RX activity LEDs
• Industrial durability: Wide temperature operation
• Flexible mounting: DIN rail or panel
• Multi-drop support: RS-485 network capability

Installation Guide

• Connect to PLC using IC200CBL500 cable
• Mount via DIN rail clip or panel screws
• Plug RS-232 device into 9-pin port
• Connect RS-485 network to 15-pin port
• Verify green TX/RX LEDs blink during data transfer

Packaging List

• IC200ACC415 converter (1 unit)
• Mounting accessories (DIN clip/screws)

Shipping Methods

Express delivery via FedEx, UPS, DHL. Tracking provided.

Frequently Asked Questions

• Required cable? Must use IC200CBL500 or equivalent
• Max devices on RS-485? 32 nodes standard (depends on network)
• Power consumption? Draws <5mA from PLC
• Warranty period? 12 months from shipment
