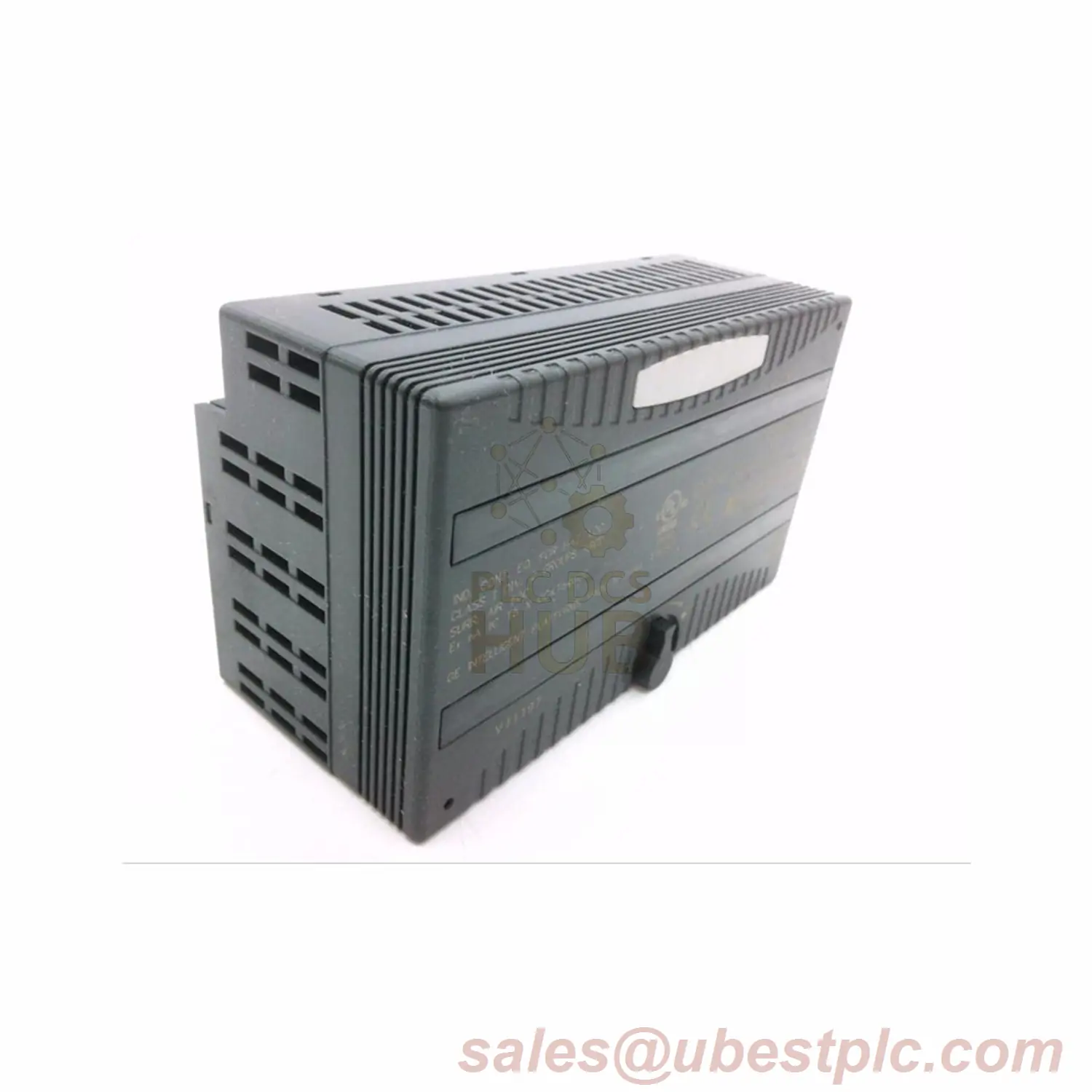

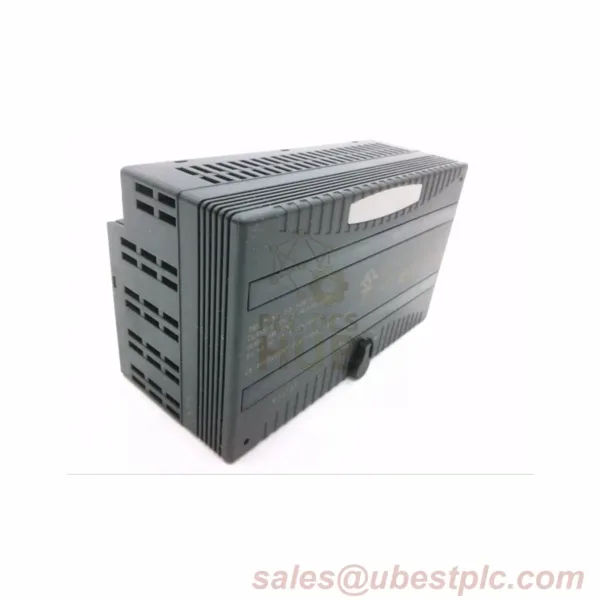

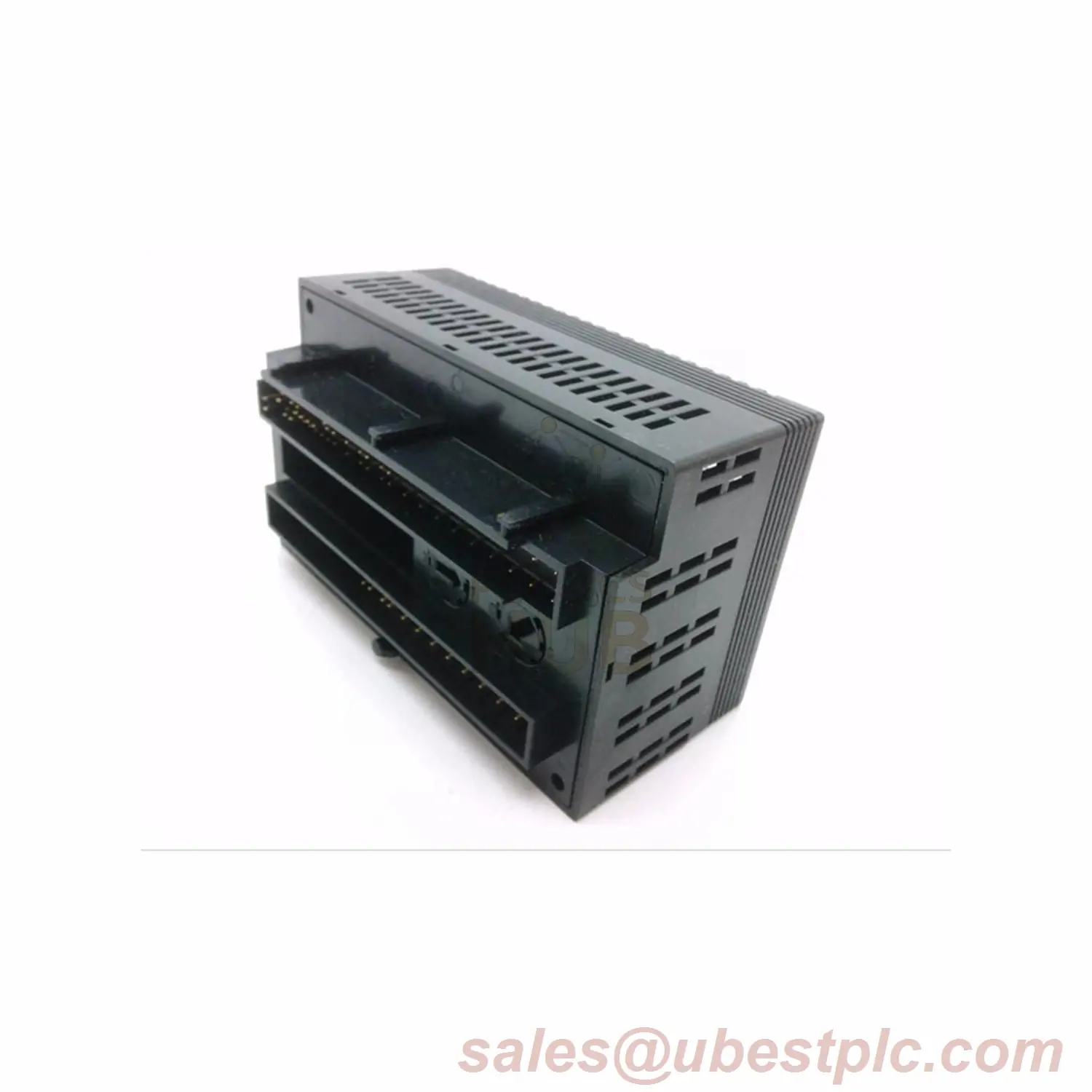

GE Fanuc VersaMax IC200ALG265 Analog Input Module
Product Description
This 15-channel analog input module from GE Fanuc’s VersaMax series delivers high-precision measurement for industrial automation. Designed for reliable data acquisition, it features 250V AC continuous isolation and supports both current (4-20mA) and voltage (-10V to +10V) signals. With built-in diagnostics and LED status indicators, it ensures stable performance in demanding environments.
Technical Specifications
Brand: GE Fanuc
Model: IC200ALG265
Type: Analog Input Module
Input Range: 4-20mA / -10V to +10V
Accuracy: 0.3% (typical), 1% max
Resolution: 15 Bits
Channels: 15 single-ended
Isolation: 250V AC continuous (1500V AC for 1 min)
Power: 5V DC, 100mA max
Key Features
• 15-bit high-resolution measurement
• LED status indicator
• Built-in diagnostics
• Compact size: 8.2 x 12.2 x 6 cm
• Lightweight: 0.3 kg
Compatibility
Works with all GE Fanuc VersaMax PLC systems and racks.
Installation
Mounts directly to VersaMax backplane. Requires standard DIN rail installation tools.
Package Includes
• IC200ALG265 Module
• Installation guide
Warranty & Shipping
12-month warranty. Ships worldwide via FedEx, UPS, or DHL.
FAQ
Q: Is this module isolated?
A: Yes, 250V AC continuous isolation.
Q: What signals does it accept?
A: 4-20mA current or -10V to +10V voltage.
Q: Is diagnostics support included?
A: Yes, built-in diagnostics.
