Description

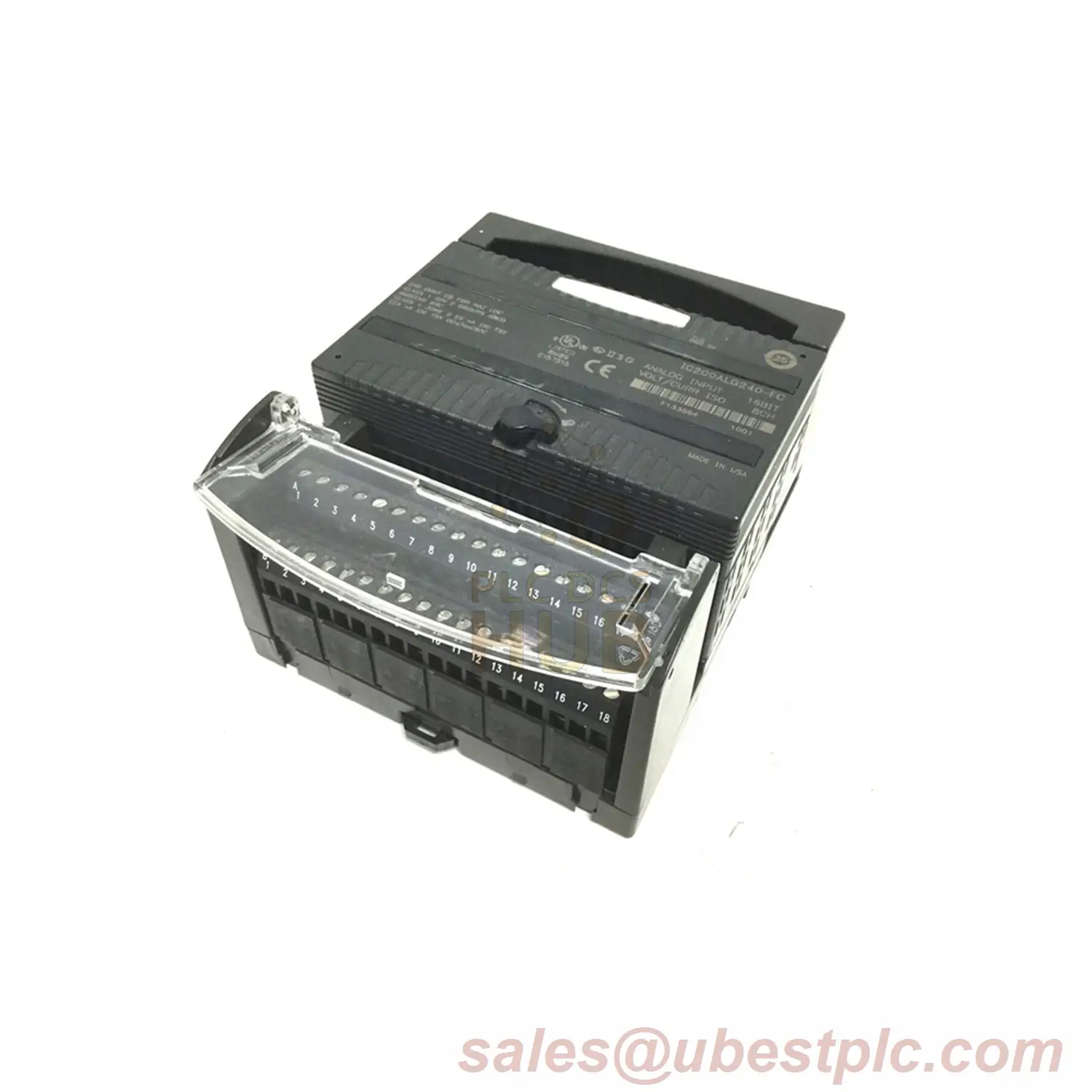

GE Fanuc IC200ALG262 8-Channel Analog Input Module
Product Highlights
Measure current signals with 15-bit precision! This VersaMax module converts 0-20mA signals for industrial control. Get fast 7.5ms updates and flexible 4-20mA/0-20mA modes.
Key Specifications
| Brand | GE Fanuc / Emerson |
| Series | VersaMax Field Control |
| Part Number | IC200ALG262 |
| Input Type | 8-channel analog |
| Signal Range | 0-20mA or 4-20mA |
| Resolution | 0.5 µA steps |
| Update Speed | 7.5ms max |
| Input Impedance | 100 Ohms |
| Power Use | 200mA max |
Special Capabilities
- Switch between 4-20mA and 0-20mA with jumpers
- 70dB noise rejection for clean signals
- Handles -10V to +10V common voltage
- Differential wiring reduces interference
Setup Guide
1. Set jumpers for desired input mode
2. Connect wires using differential method
3. Allow 50mm space around module
Works With
All VersaMax PLC systems. Not for RX3i or Series 90-30.
Box Includes
- 1x IC200ALG262 module
- 12-month warranty
- No certificates
Delivery Options
FedEx • UPS • DHL
Tracked global shipping
Common Questions
Q: Smallest current change detected?
A: 0.0000005A (0.5 µA)
Q: Works with sensors?
A: Yes – perfect for 4-20mA sensors
Q: Update speed for all 8 channels?
A: Yes – 7.5ms total scan time
Q: Warranty start date?
A: From purchase date
