Description

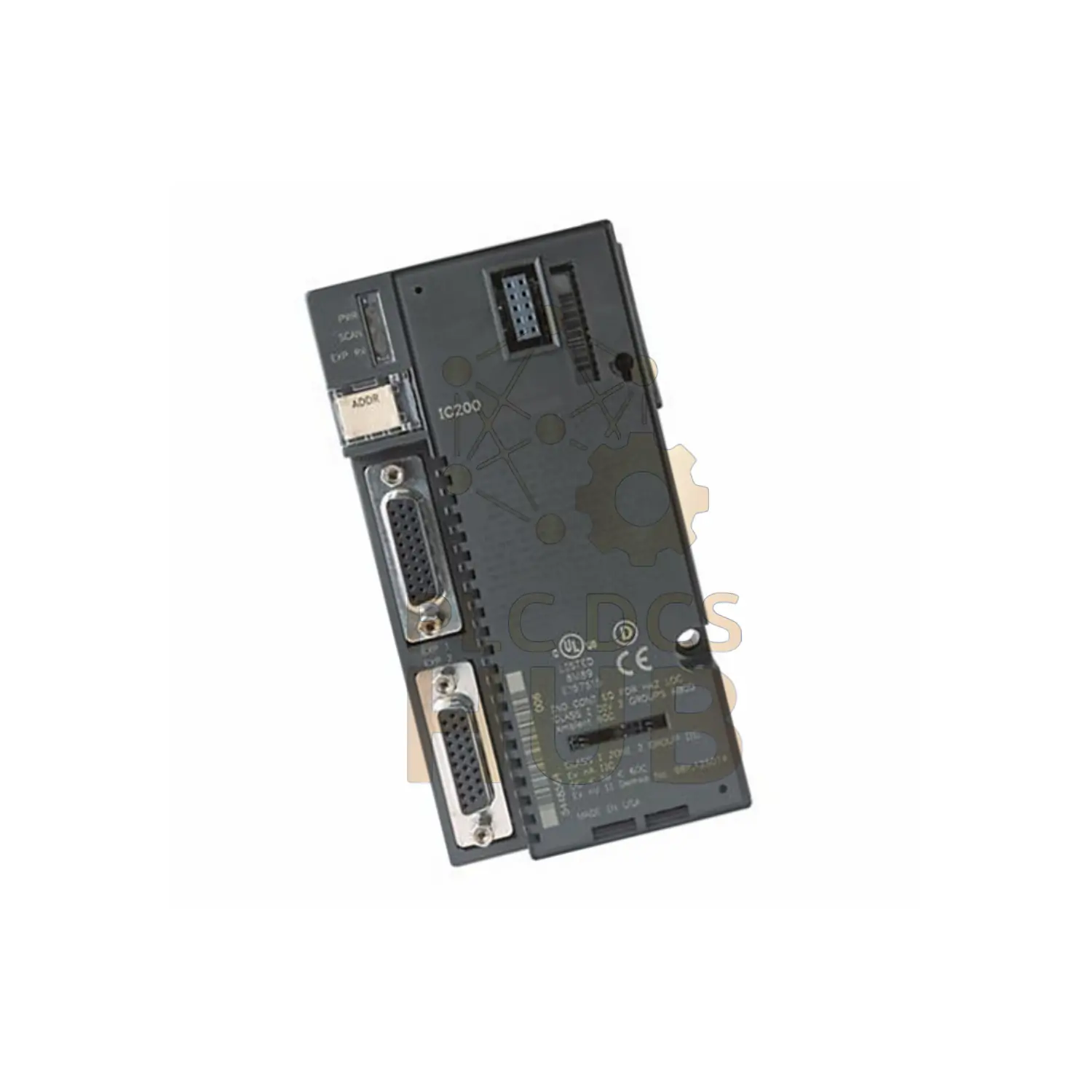

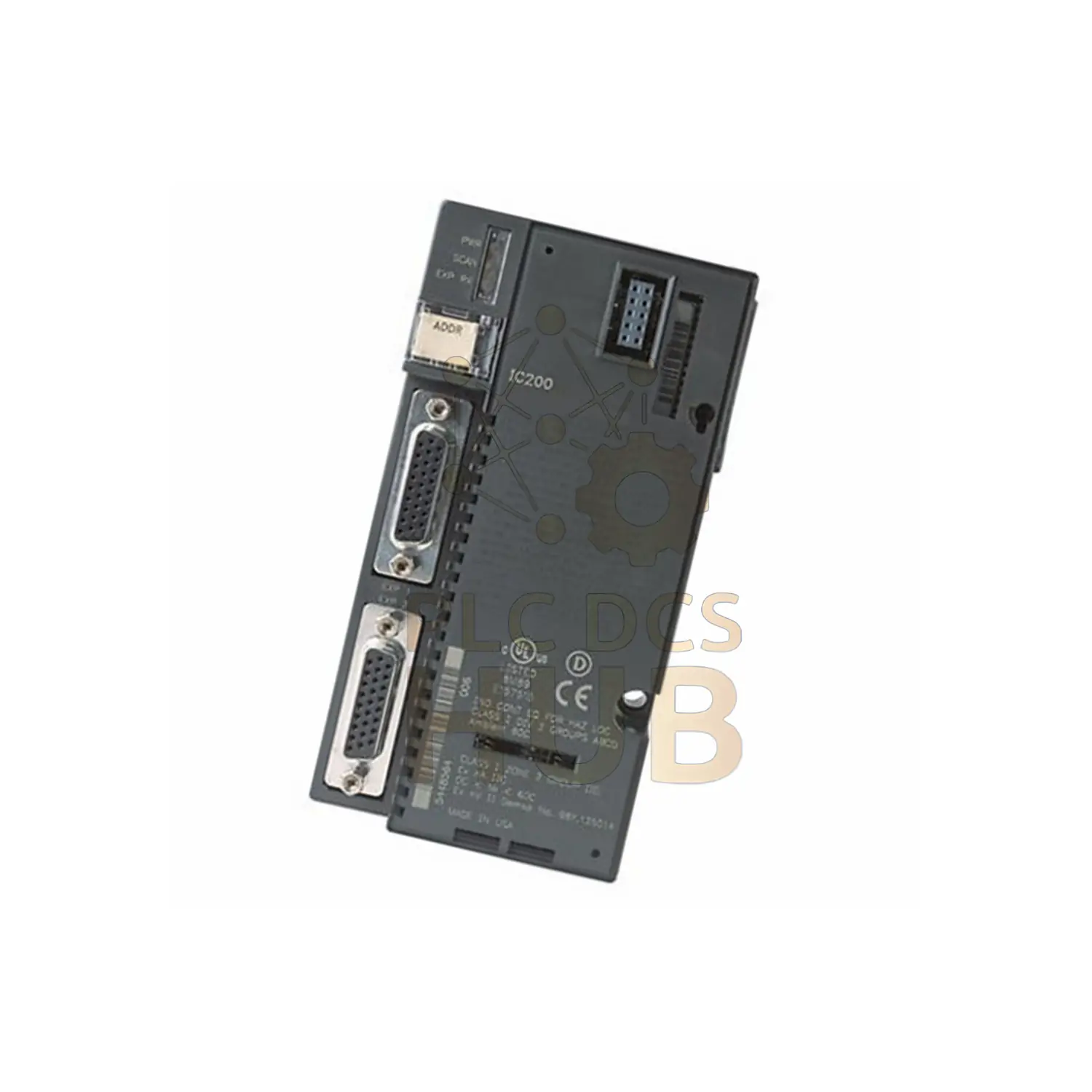

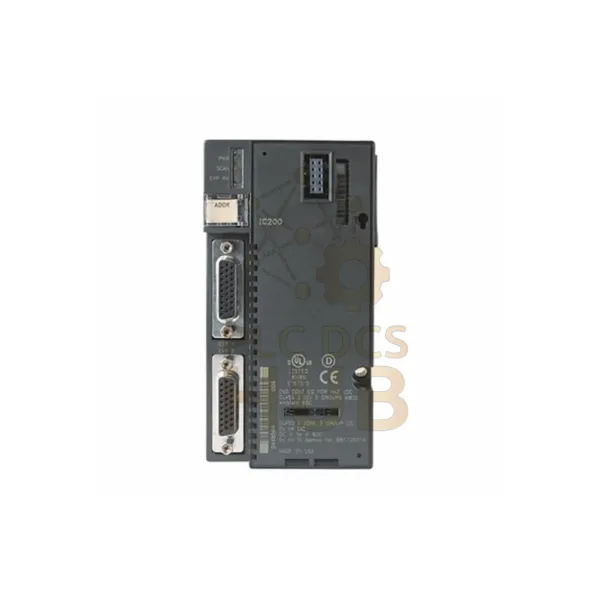

IC200PNS002 – PROFINET Scanner Module for Industrial Networks
Product Description
This GE Fanuc PROFINET Scanner enables high-speed communication in VersaMax systems. Featuring dual 100Mbps fiber ports, it supports PROFINET 2.2 Class A with configurable update times down to 1ms. Ideal for real-time control in automotive, packaging, and material handling applications requiring noise immunity.
Technical Specifications
- Brand: GE Fanuc
- Model: IC200PNS002 (Full Suffix: IC200PNS002)
- PROFINET Version: 2.2 Class A IO-Device
- Ports: 2 x 100Mbps SC-Duplex (MMF)
- Update Rates: 1ms to 512ms (configurable)
- Power: 1.10A @ 5VDC (5W)
- Operating Temp: 0 to 60°C (no fan required)
- Dimensions: 134mm W x 132mm H
Installation Guide
- Mount on standard VersaMax DIN rail
- Connect 5VDC power via backplane
- Insert SC connectors into dual fiber ports
- Verify solid green PWR/OK LEDs after startup
- Configure in Proficy Machine Edition v7.0+
Compatibility
Requires RX3i PLCs with firmware v7.0+ and Proficy Machine Edition v7.0+. Interfaces with all PROFINET IO-Device compatible equipment.
Packaging Includes
- IC200PNS002 Scanner Module (1 unit)
- DIN rail mounting kit
Shipping Options
Global delivery via: FedEx | UPS | DHL
FAQ
Q: What does amber CONNECT LED indicate?
A: Flashing amber = initializing, rapid flash = firmware update
Q: Minimum software requirements?
A: Requires Proficy v7.0+ and RX3i CPU v7.0+
Q: Supports copper Ethernet connections?
A: No, only SC-Duplex fiber ports (MMF)
Q: Operating temperature limits?
A: 0°C to 60°C without external cooling
