Description

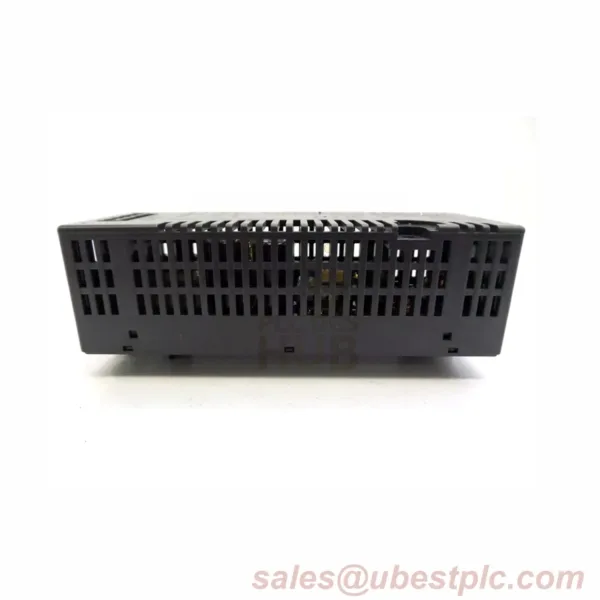

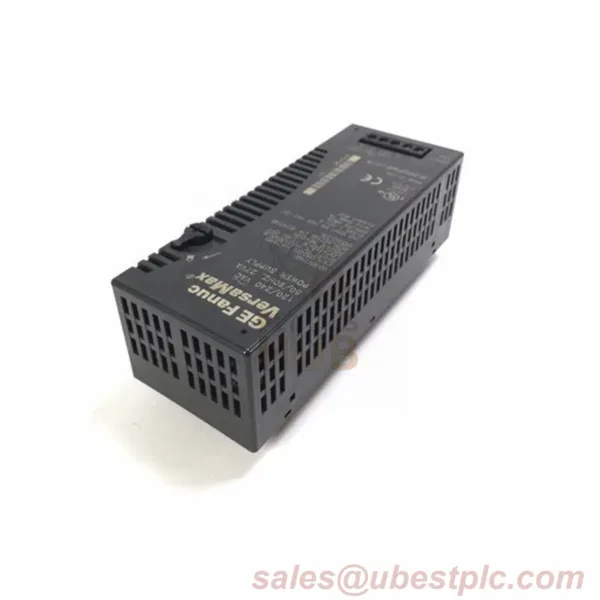

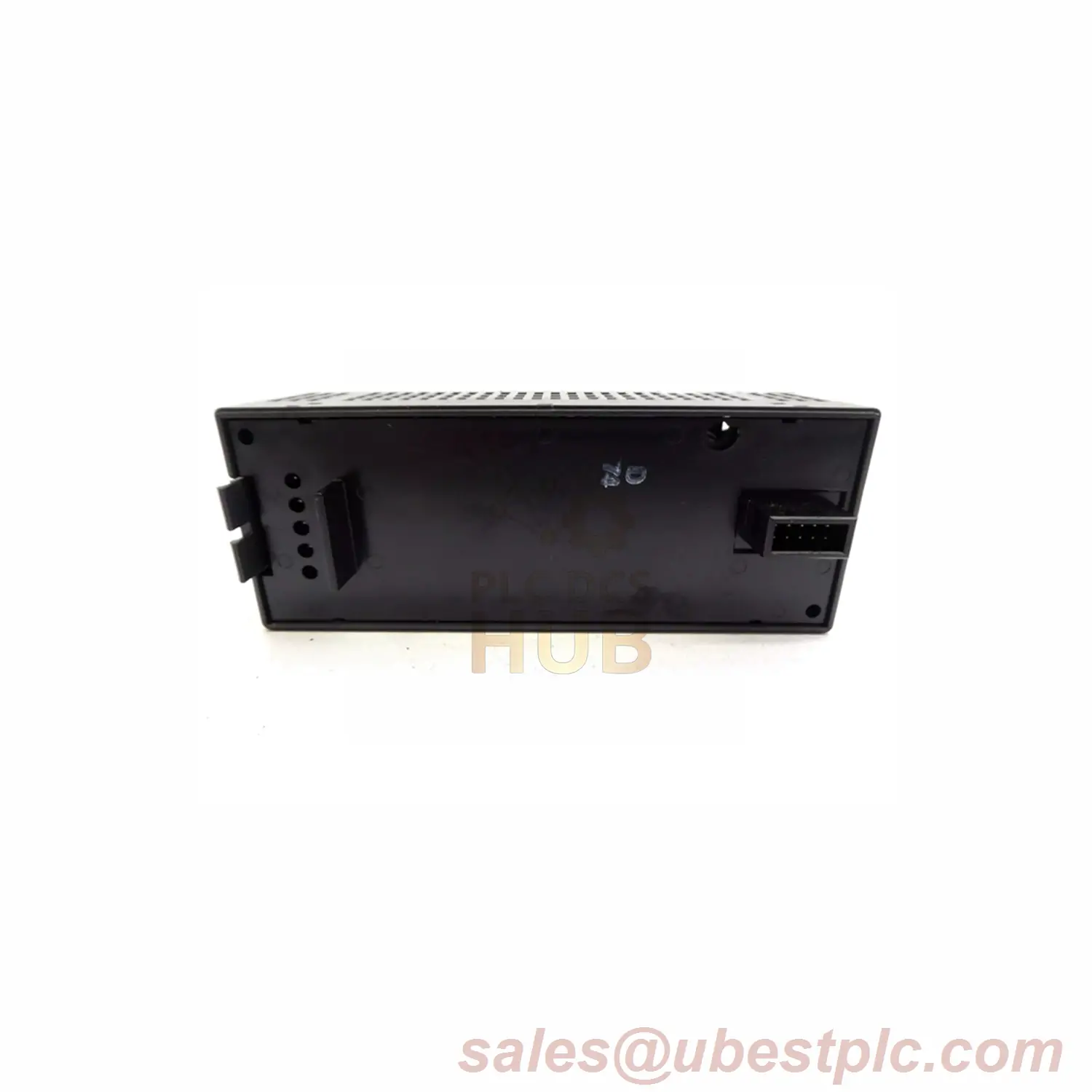

IC200PWR002 24VDC Power Supply for Industrial Systems
Reliable backplane power solution for CPUs and I/O modules. Delivers stable 3.3V/5V power with smart load distribution.
Essential Features
- Dual voltage output (3.3V & 5V) with smart current sharing
- Built-in reverse polarity protection
- 10ms power holdup during interruptions
- Compact design for space-saving installation
Power Specifications
- Brand: GE Fanuc
- Model: IC200PWR002
- Input: 18-30VDC (24VDC nominal)
- Output: 3.3VDC (1.0A max) + 5VDC
- Total Power: 1.5A max combined
- Inrush Current: 20A at 24VDC
- Protections: Short circuit, overload
- Efficiency: 85% typical operation
Installation Options
Mounts directly on CPU/NIU modules or Power Supply Booster Carriers. Requires 18-22 AWG power wiring.
System Compatibility
Works with all VersaMax PLC systems. Ideal for expanding I/O capacity.
Package Contents
- IC200PWR002 power module
- Mounting hardware kit
- Quick start guide
Warranty & Delivery
Coverage: 12-month defect warranty
Shipping: FedEx/UPS/DHL express options
Industrial Use Cases
- PLC control cabinet power
- Sensor network power hub
- Backup power for critical I/O
- Machine tool control systems
Power Supply FAQ
Q: Can both outputs work at full capacity?
A: No – total output limited to 1.5A combined
Q: Minimum input voltage needed?
A: 18VDC minimum for normal operation
Q: Reverse polarity damage risk?
A: Protected – no damage if connected backward
Q: Operating temperature range?
A: -20°C to +70°C ambient
