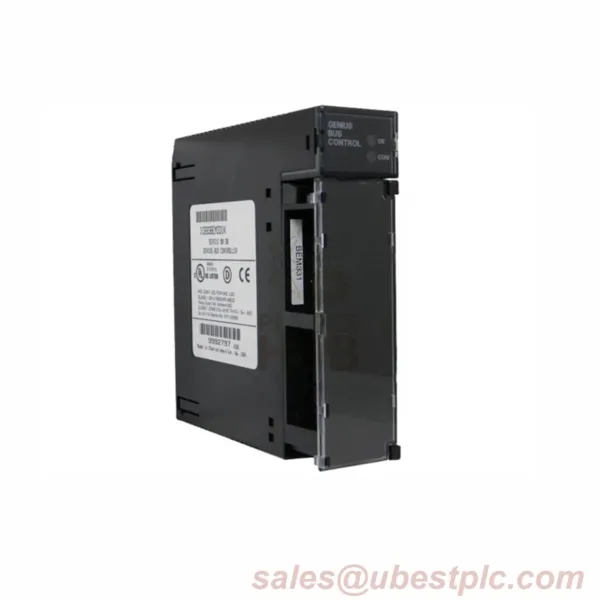

GE Fanuc IC693BEM334 Genius Bus Controller Series 90-30

Description

GE Fanuc IC693BEM334 Genius Bus Controller

Connect Series 90-30/90-70 PLCs to 31 independent Genius Bus networks. Control AC/DC I/O blocks, RTD inputs, and counters. Hot-swap not supported – install with power disconnected.

TECHNICAL DATA

• Brand: GE Fanuc
• Model: IC693BEM334 (Full Suffix: IC693BEM334)
• Type: Genius Bus Controller
• Protocol: Genius I/O Bus
• Networks: Controls up to 31 independent buses
• Wiring: Detachable terminal strip
• Configuration: Handheld monitor (HHM)
• Power: 5VDC from backplane
• IP Rating: IP20 (indoor only)

INSTALLATION GUIDE

1. Disconnect all power sources
2. Mount in 90-30/90-70 backplane
3. Secure wiring to front terminal strip
4. Configure via handheld HHM device

COMPATIBILITY

• Works With: GE Series 90-30 and 90-70 PLCs
• Devices Supported: AC/DC I/O, relays, RTD inputs, counters

PACKAGING

• IC693BEM334 Controller
• Terminal strip
• 12-month warranty card

SHIPPING

FedEx | UPS | DHL – Global 3-5 day delivery

FAQ

Q: How many devices per network?
A: Controls unlimited AC/DC I/O, RTDs, counters via Genius Bus.

Q: Can I hot-swap during operation?
A: Never. Power must be disconnected before installation.

Q: Compatible with RX3i systems?
A: No. Works only with Series 90-30/90-70 PLCs.
