Description

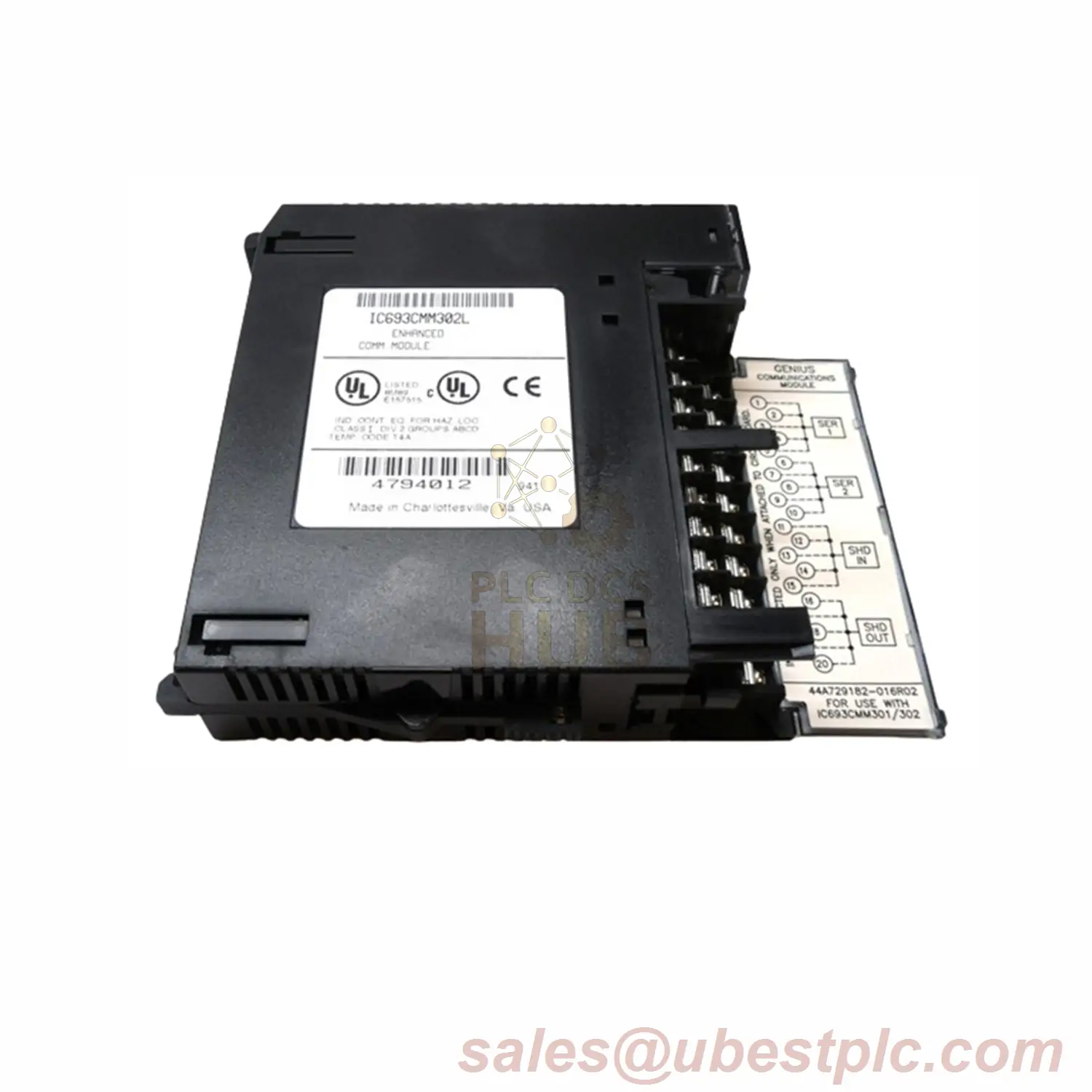

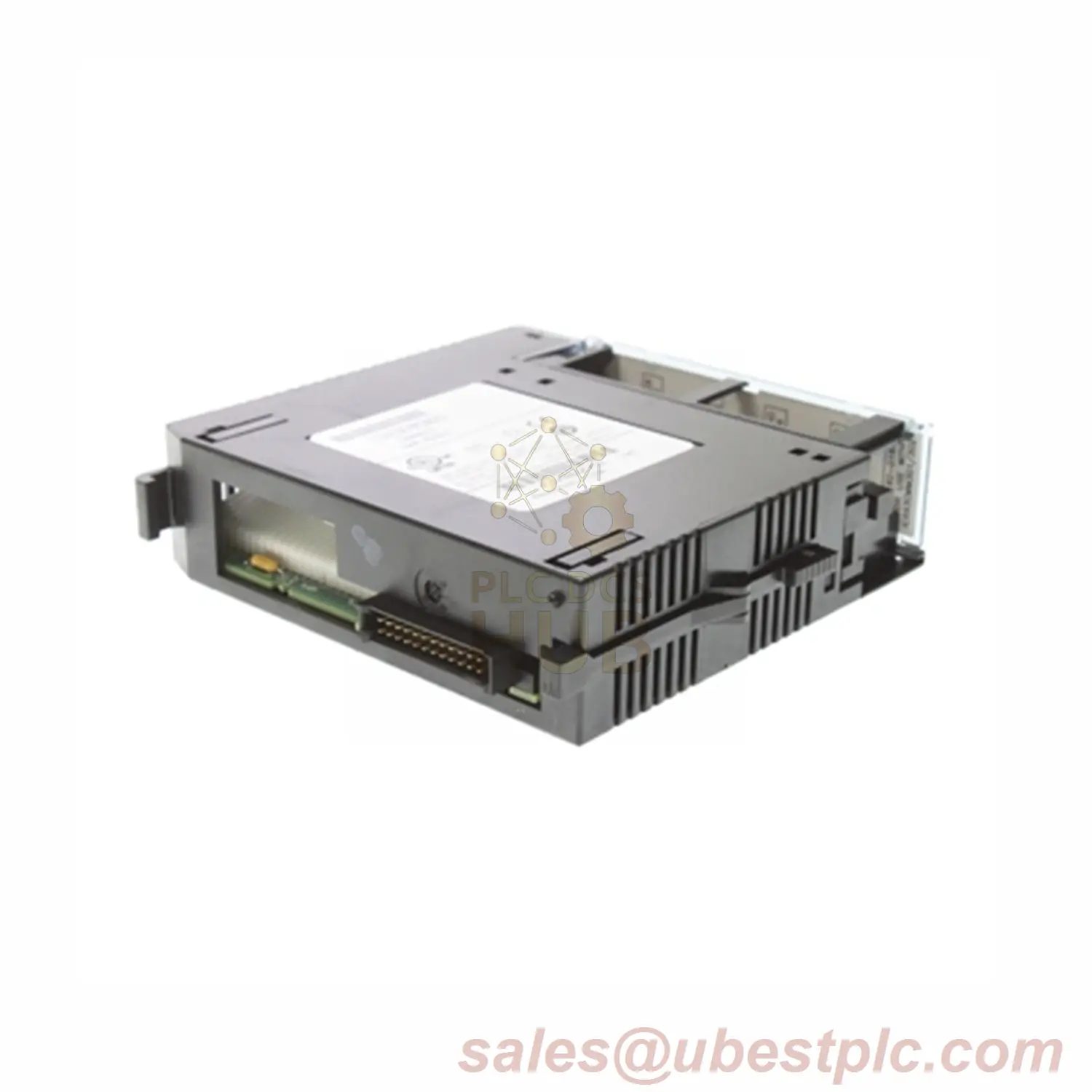

Genius Network Hub: GE Fanuc IC693CMM301 Communication Module
Connect your GE Fanuc PLCs effortlessly! This compact module creates instant Genius bus networks for up to 8 devices. Share critical data across your factory floor without complex wiring – perfect for retrofitting older systems.
Technical Specifications
| Manufacturer & Series | GE Fanuc • Series 90-30 |
| Full Model Numbers | IC693CMM301, IC693CMM301-AA, IC693CMM301-BB |
| Data Capacity | 256 bits (32 bytes) global data |
| Network Size | Up to 8 devices per bus |

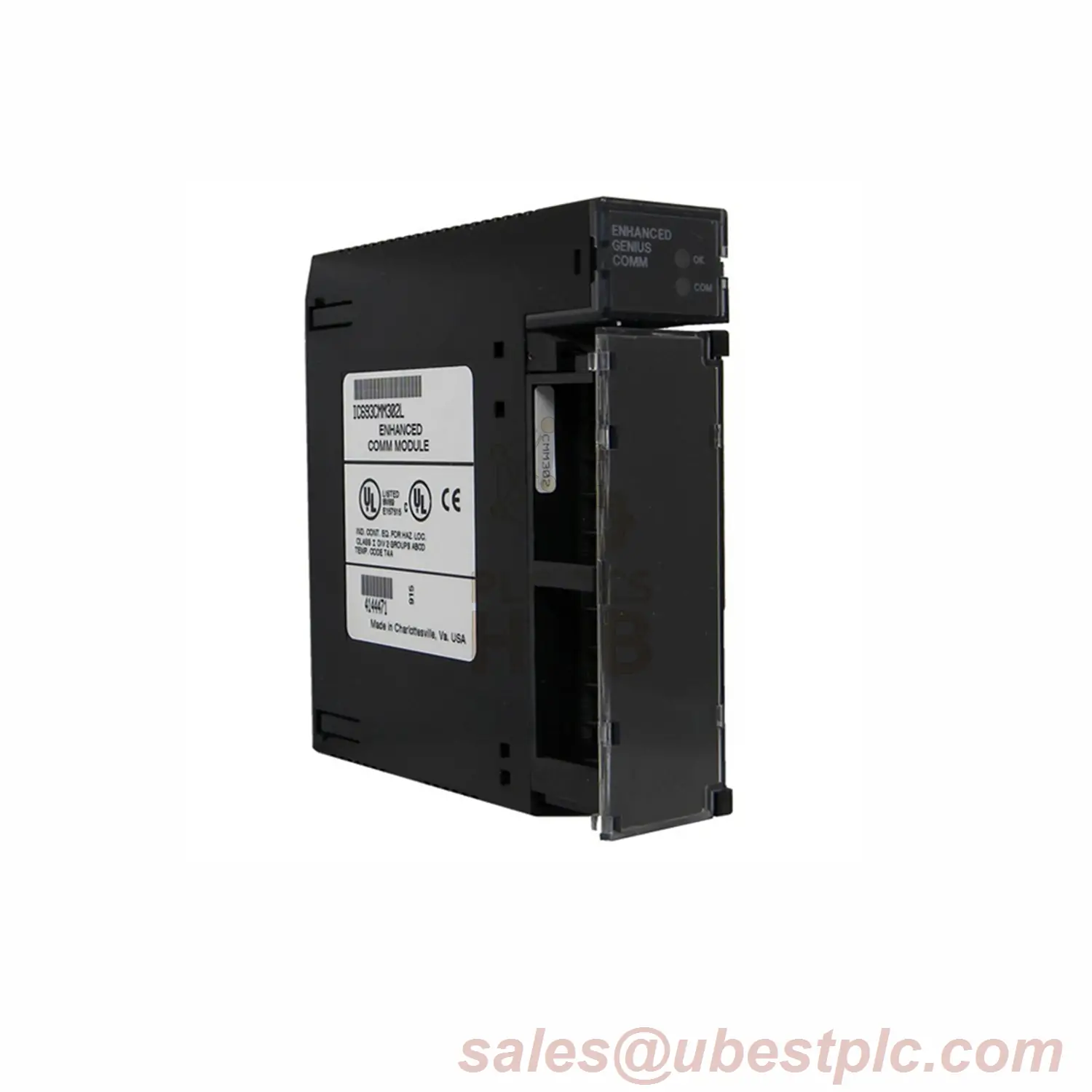

| LED Indicators | OK (green) • COM (yellow) |
| Config Methods | Handheld programmer • LogicMaster software |
| Temp Range | Operating: 0°C-60°C (32°F-140°F) Storage: -25°C-70°C (-13°F-158°F) |
| Power Consumption | 5VDC @ 250mA (typical) |
Compatible Equipment
- GE Series 90-30 PLCs (all models)
- GE Series 90-70 PLCs
- Programming computers with LogicMaster
- Devices with Genius PCIM cards
Simple 3-Step Setup
- Insert module into Series 90-30 backplate
- Connect devices via Genius bus cable
- Configure data tables using handheld programmer
Package & Support
- 1 × IC693CMM301 Genius Module
- 12-Month Warranty
- Global Shipping: FedEx • UPS • DHL (2-5 days)
Troubleshooting Guide
Q: OK LED not lighting up?
A: Check power supply and backplate connection. Replace if LED stays off after reseating .
Q: COM LED blinking?
A: Indicates bus errors – check cable terminations and device addresses .
Q: Data not updating?
A: Verify configuration matches in all devices. Max 32 bytes shared .
Q: Can I add non-GE devices?
A: Only with compatible Genius interface cards .
