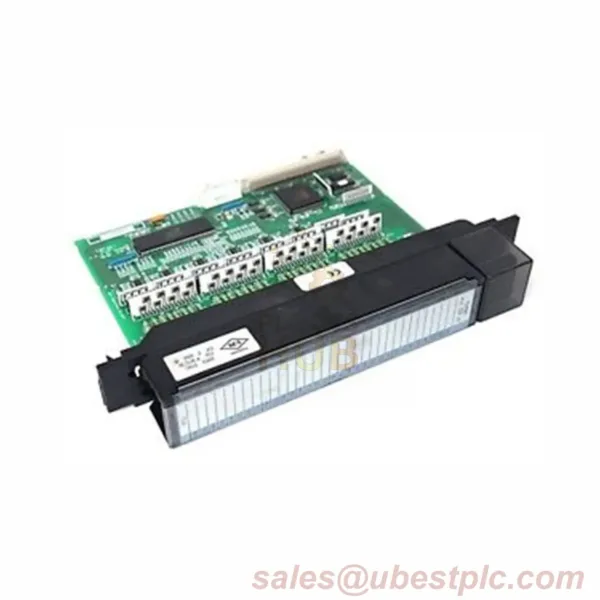

GE Fanuc IC697MDL341 120-240V AC 12-Point Output Module
Product Description
This discrete output module from GE Fanuc’s Series 90-70 PLC family delivers 12 isolated outputs for multi-phase AC systems. Engineered for heavy-duty control, it drives solenoids, motor starters, and indicators. Features include replaceable fuses, surge protection (10x inrush), and dual LED diagnostics. No jumpers needed—configures via Windows software.
Technical Data
- Brand: GE Fanuc (GE Intelligent Platforms)
- Model: IC697MDL341 (Series 90-70)
- Voltage: 120-240V AC ±10%
- Outputs: 12 isolated points
- Current/Point: 2A continuous (20A inrush)
- Current/Module: 16A max
- Fuse Rating: 3.15A per point (replaceable)
- Frequency: 47-63 Hz
- Power: AC only (0.25A draw)
Installation Guide
- Mount in Series 90-70 rack (keyed slot ensures alignment)
- Connect 120-240V AC power and load devices
- Configure via GE programming software
- Replace fuses (3.15A) if blown (LED alerts)
Packaging & Shipping
- Includes: IC697MDL341 module, manual, spare fuses
- Global Shipping: FedEx, UPS, DHL
- Delivery: 3-5 business days (express available)
FAQs
Q: Can it handle DC loads?
A: No—designed for 120-240V AC only.
Q: What if a fuse blows?
A: LED lights up; replace with 3.15A fuse (included).
Q: Maximum surge current per point?
A: 20A for short durations (10x rating).
Q: Software included?
A: Programming tools sold separately.
