Description

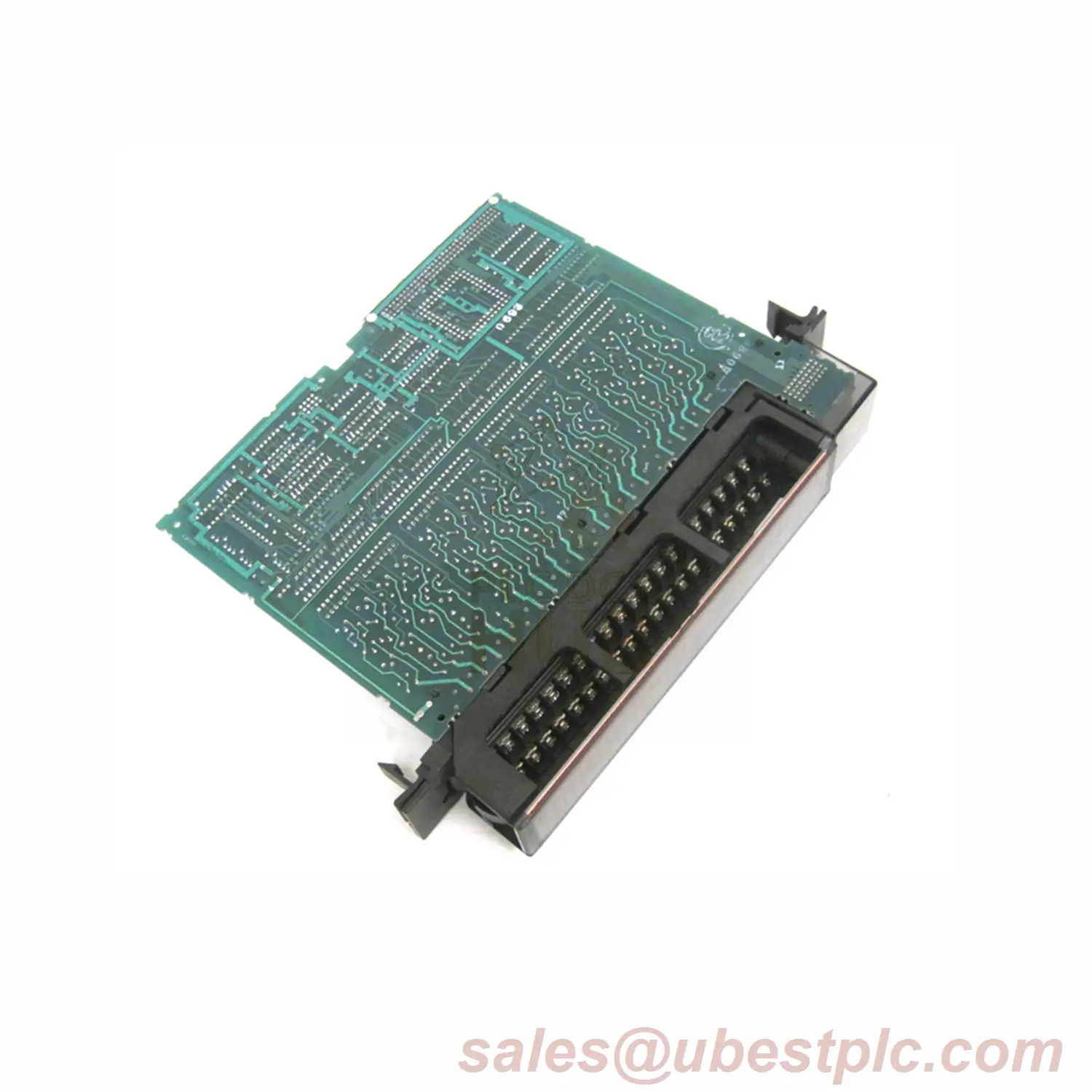

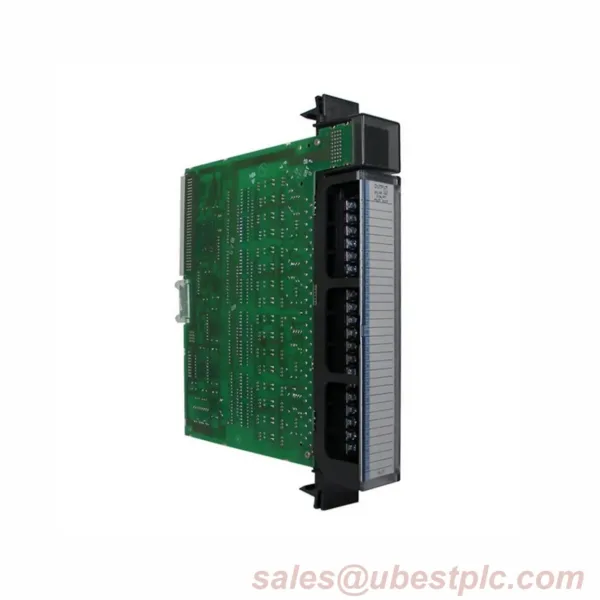

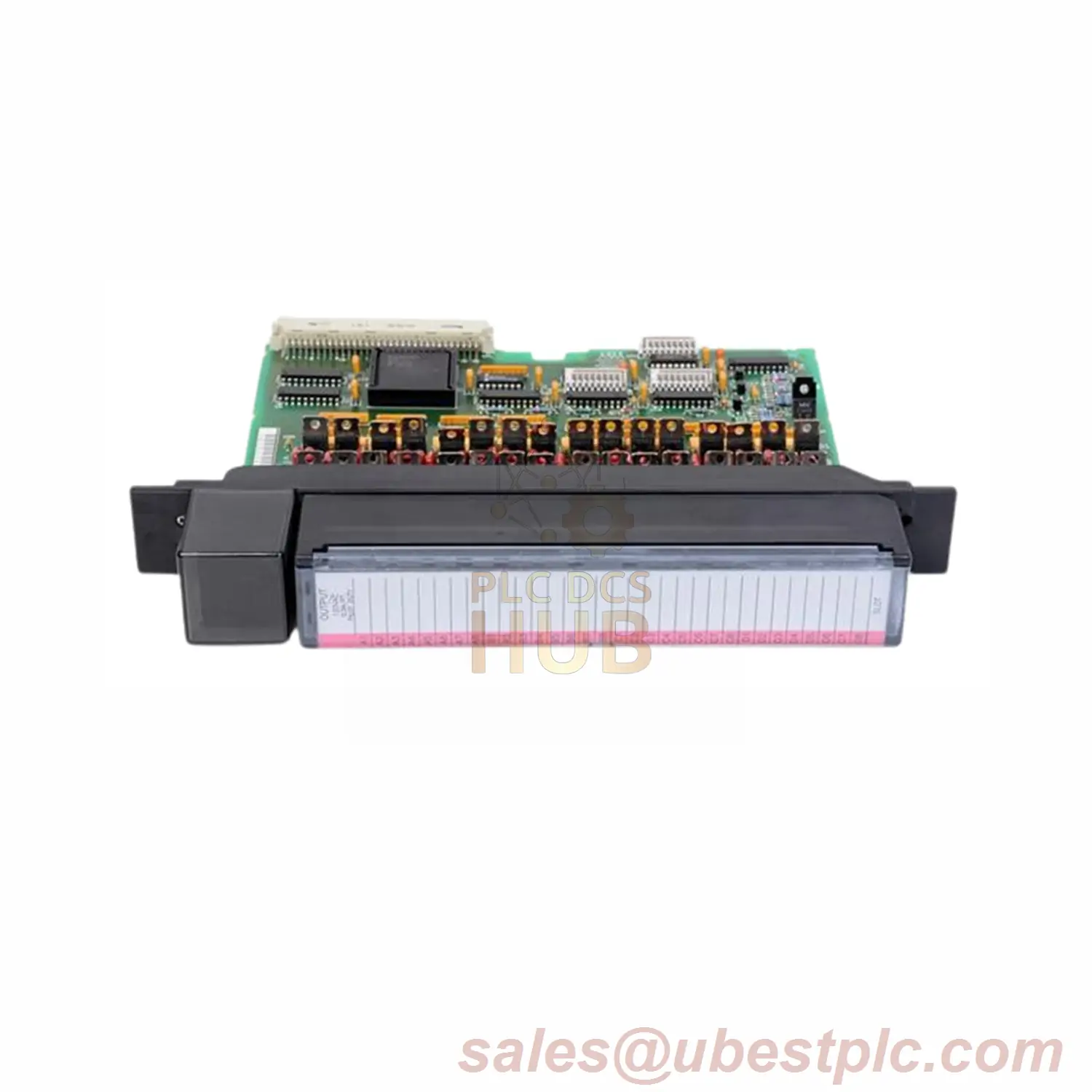

GE Fanuc IC697MDL640 Discrete Input Module – 16-Point DC Solution
Product Overview
Advanced 125V DC input module for Series 90-70 PLC systems. Features positive/negative logic support and 4 isolated groups. Ideal for industrial automation with wide voltage tolerance (-35 to 145V DC).
Technical Specifications
| Brand | GE Intelligent Platforms/GE Fanuc |
| Model | IC697MDL640 (Full Suffix) |
| Input Points | 16 (4 groups × 4 points) |
| Rated Voltage | 125V DC |
| Voltage Range | -35 to 145V DC |
| Input Current | 5mA at rated voltage |
| Current Required | 0.3A |
| Filter Options | 1ms or 10ms selectable |
Installation Steps
- Power down PLC rack
- Insert in compatible slot (mechanical keying)
- Connect DC wiring per terminal diagram
- Configure logic settings via software
Package Includes
- IC697MDL640 Module
- Installation manual
- Terminal labels
Shipping Info
Global delivery via FedEx, UPS, DHL. Tracking provided within 24hrs.
FAQ
AC power supported?
No – DC power only (125V DC)
LED status indicators?
No – Refer to PLC diagnostics
Interrupt input capability?
Yes – One input configurable as interrupt
