Description
Overview

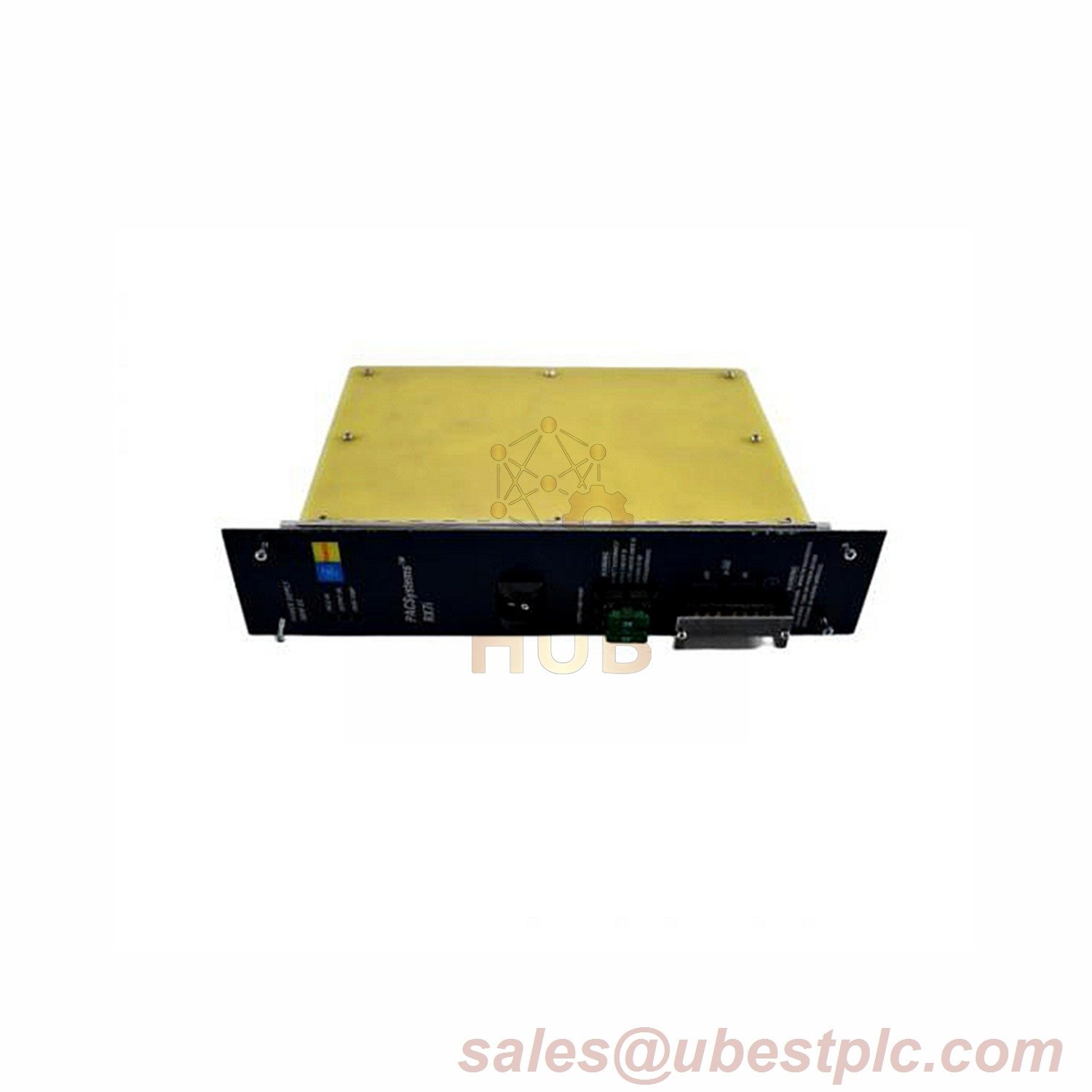

The IC698PSD300 Power Supply Module is designed to provide reliable power for the RX7i system. With a robust input range and multiple output voltages, it ensures stable operation for a variety of industrial applications. This power supply is specifically engineered to support the RX7i backplane, providing +5V, +12V, and -12V outputs, along with essential logic sequencing signals. Its efficient design features protection against overvoltage and overcurrent, making it a dependable choice for critical control systems.
Technical Data
| Parameter | Value |
|---|---|
| Brand | GE Fanuc |
| Model | IC698PSD300 |
| Nominal Input Voltage | 24 VDC |
| Input Voltage Range | 18 to 30 VDC |
| Input Power | 430W (typical), 550W (maximum) |
| Inrush Current | 100 A maximum (cold start, 24 VDC) |
| Output Power | 300W maximum (total for all 3 outputs) |
| Output Voltage | +5 VDC (0-50 A), +12 VDC (0-10 A), -12 VDC (0-4 A) |
| Overvoltage Limit | +5V: 5.7 to 6.7 V |
| Overcurrent Limit | +5V: 65 A typical, +12V: 15 A, -12V: 6 A |
| Ride-through Time | 15 ms minimum |
| Holdup Time | 5 ms minimum |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Isolation | 250 VAC continuous, 1500 VAC for 1 minute |
